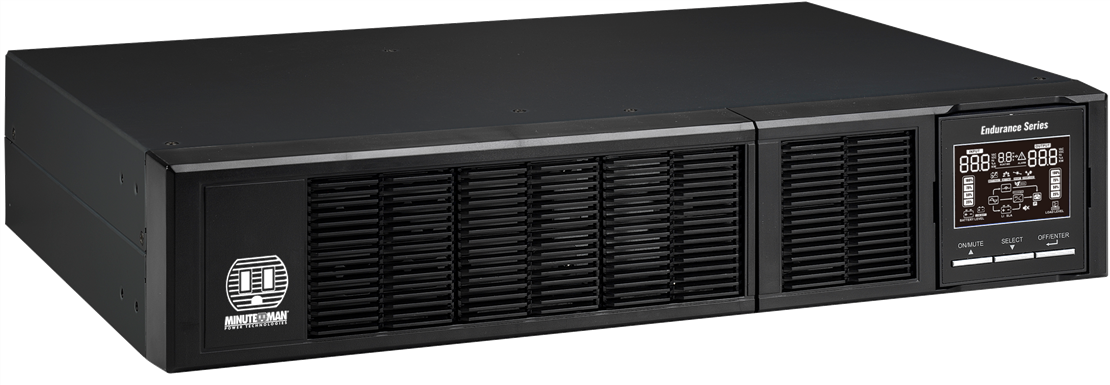

UPS Online 3kVA/2700W 2U Rack/Tower with Lithium Battery

New and Improved Features

• LCD panel for configuration, monitoring and management of the UPS
• Advanced lithium (LiFePO4) battery technology
• High-frequency design
• Reduced rack footprint for greater density installations
• Predictive Battery Replacement: Using install date and periodic monitoring of batteries with early warning alarms
• Tool-less battery connection using front panel of UPS
• Hot-swappable batteries
• 5-year product warranty (including batteries)

Features & User Benefits

• True double-conversion online technology: Maximum protection for critical equipment
• LiFePO4 (Lithium) internal batteries: Lithium battery technology extends the product’s reliability and lifespan
• Digital Signal Processor (DSP) design: Higher reliability through reduced number of UPS components
• High power factor (0.9pf): Increases the real power capacity of each individual model
• Automatic internal bypass: The UPS will sound an alarm and go to Bypass Mode when an internal fault, either hardware or battery, is detected.
• Independent Battery Bypass (IBB): The UPS will provide a constant 120V output, even with dead or defective batteries when utility power is present.
• Smart fan control: Variable speed fan control maximizes the cooling of the UPS while maintaining optimum efficiency.
• Cold start function: Start UPS even without available utility power.
• Available option slot: For use with network or programmable relay card
• Simultaneous serial communication options: Simultaneous use of USB and RS-232 communications provide greater flexibility in the management and monitoring of the UPS system.
• REPO Port: Supports the immediate shutdown of output power in emergency situations
• 5-year standard product warranty: Lower cost of ownership and greater reliability
• Platinum Protection Plan: Insures properly connected equipment up to $250,000
• RoHS2 and Energy Star 2.0 compliant: Environmentally-friendly design and energy efficient to reduce operating costs.

Target Markets and Channels

• Critical server, network and telecommunications equipment
• Ideal for protection of Network Servers, Voice/Data Networks, Healthcare and laboratory facilities and light Industrial Applications.
• Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and power factor correction.
• Applications: Information Technology (IT), Edge Computing, Medical and Healthcare, Security and Access Control, Colleges and Universities, K-12 Education, Federal, State and Local government installations.

Compatible with Minuteman SentryHD Software

• Automatically saves and shuts down unfinished applications
• Gracefully powers down your PC during extended blackouts
• Provides comprehensive monitoring capabilities

LCD Display Panel offers all these features and more:

• UPS configuration capability
• UPS status information
• Ability to control programmable outlets
• Adjustable input voltage transfer points via front screen
• Adjustable input voltage sensitivity via front screen
• Output voltage adjust via front screen
