Cyber Power - BP48VP2U02 - Extended Battery Module

Product Overview

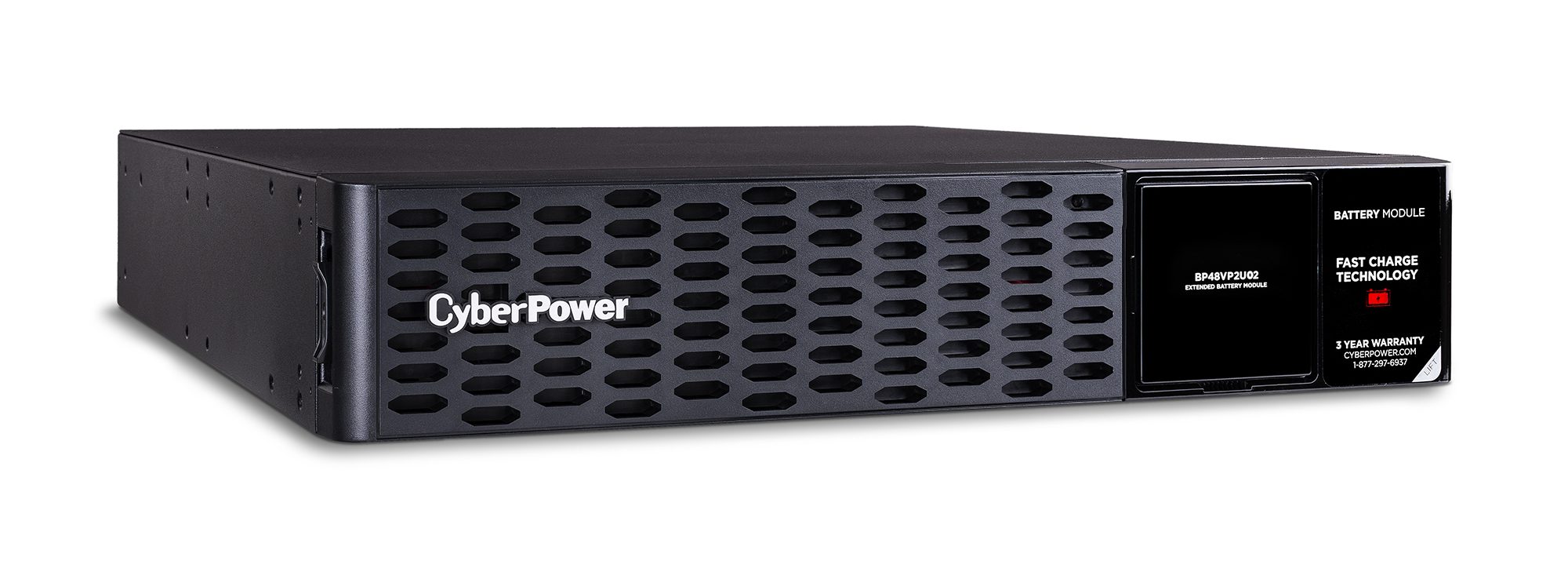

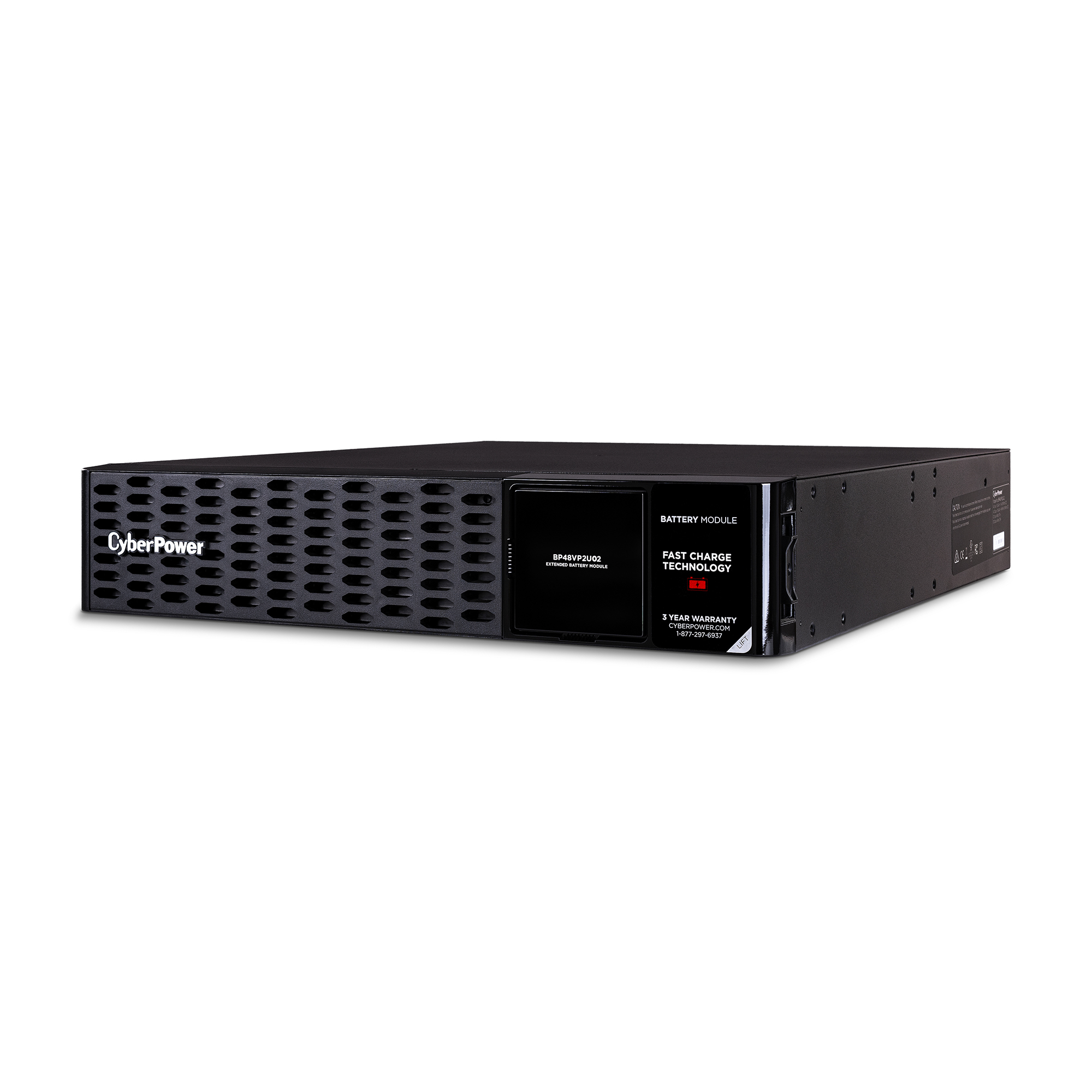

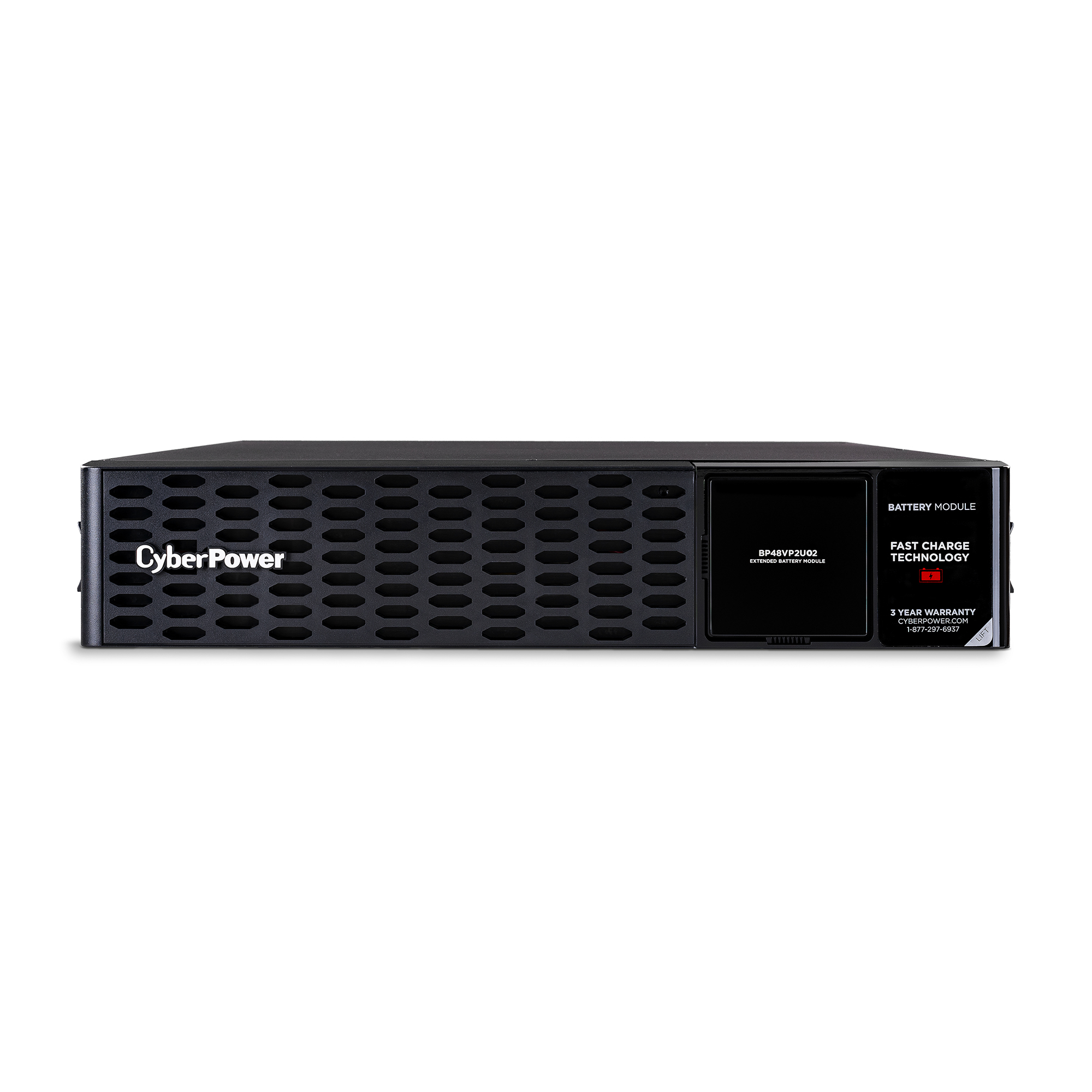

The Cyber Power BP48VP2U02 is a 2U rack convertible EBM that extends runtime for compatible UPS systems. Operating at 48 VDC, it features hot-swappable batteries with toolless access and battery equalization technology for improved longevity. Additionally, its Fast Charge Technology ensures rapid recovery for consistent power readiness.

Key Configuration

• • DC voltage: 48 VDC; amperage: 70 A
• • Battery: 8 × sealed lead-acid (12V/9Ah); user replaceable; hot swappable
• • Replacement battery cartridge: RB1290X4J (quantity 2 required)
• • Rack height: 2U; form factor: rack/tower convertible
• • Physical dimensions (W×H×D): 434 × 86 × 500 mm (17.1" × 3.4" × 19.7"); weight: 30.03 kg (66.2 lb)

Key Features

This rack convertible EBM significantly expands UPS runtime and features a built-in charger in every module. Fast Charge Technology ensures rapid recovery, while battery equalization balances voltages to extend overall service life. Maintenance is streamlined with hot-swappable batteries and toolless panel access, utilizing side latches and captive screws, allowing for replacements without powering down connected equipment.

Technical Context

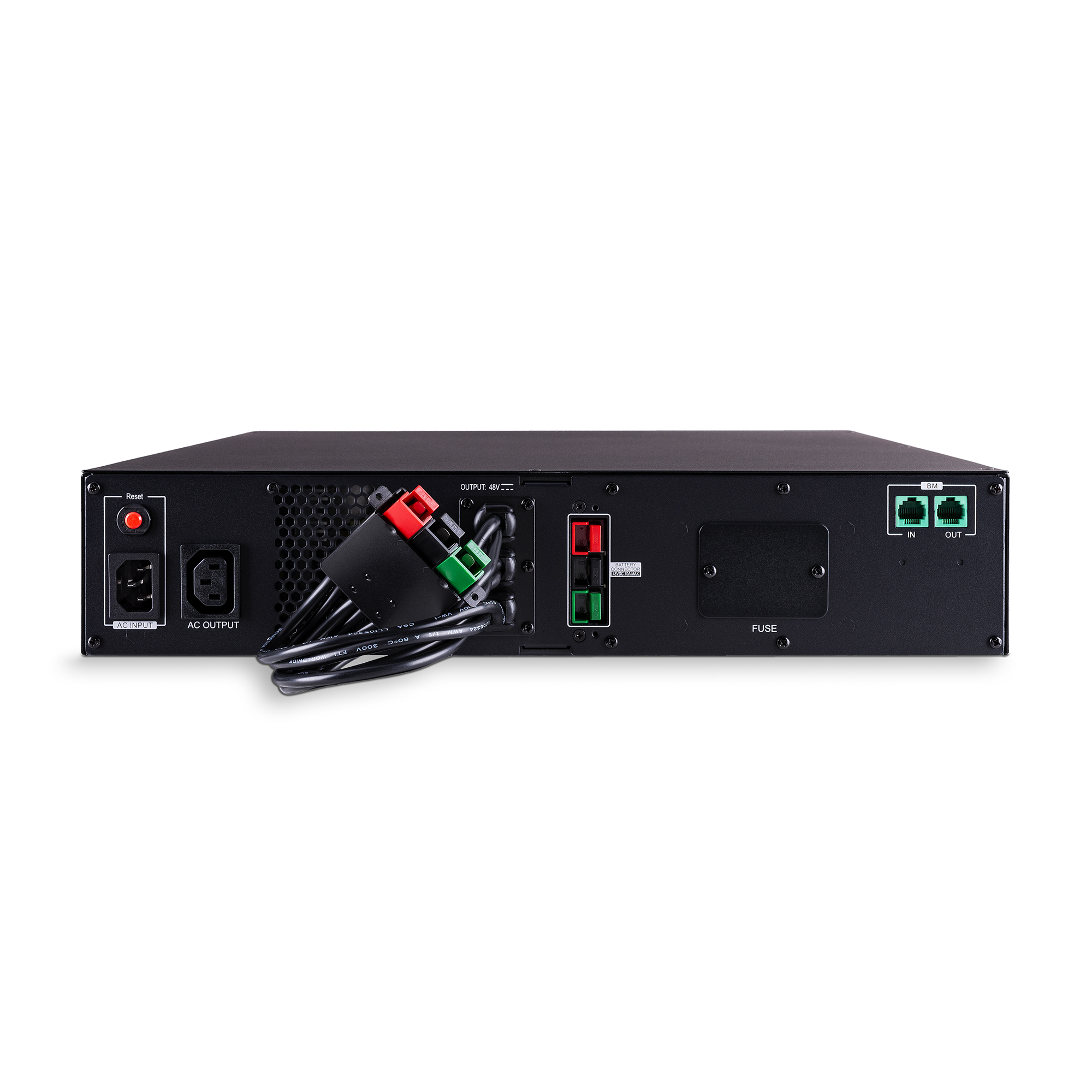

Housed in a black metal chassis, this EBM supports a universal input range of 100–240 VAC via an IEC-320 C14 plug. It features a robust 70A circuit breaker and a typical 6-hour recharge time. Engineered for diverse environments, it operates from 0–10,000 ft and is certified by UL1778, CE, and FCC Class B. It is fully RoHS compliant and designed for stability across a wide temperature range (32°F to 104°F).

Installation Notes

The module measures 17.1" × 3.4" × 19.7" and weighs 30.03 kg (66.2 lb). The package is fully equipped for immediate setup, including both rack and tower mounting kits, a BM cable, two IEC C13-C14 cables, and a faceplate. It comes with a 3-year limited warranty.
