Cyber Power - RCCARD100 - UPS SYSTEMS Hardware Remotely monitor UPS with via a cloud connection with a mobile app
Part number:
RCCARD100
Price:

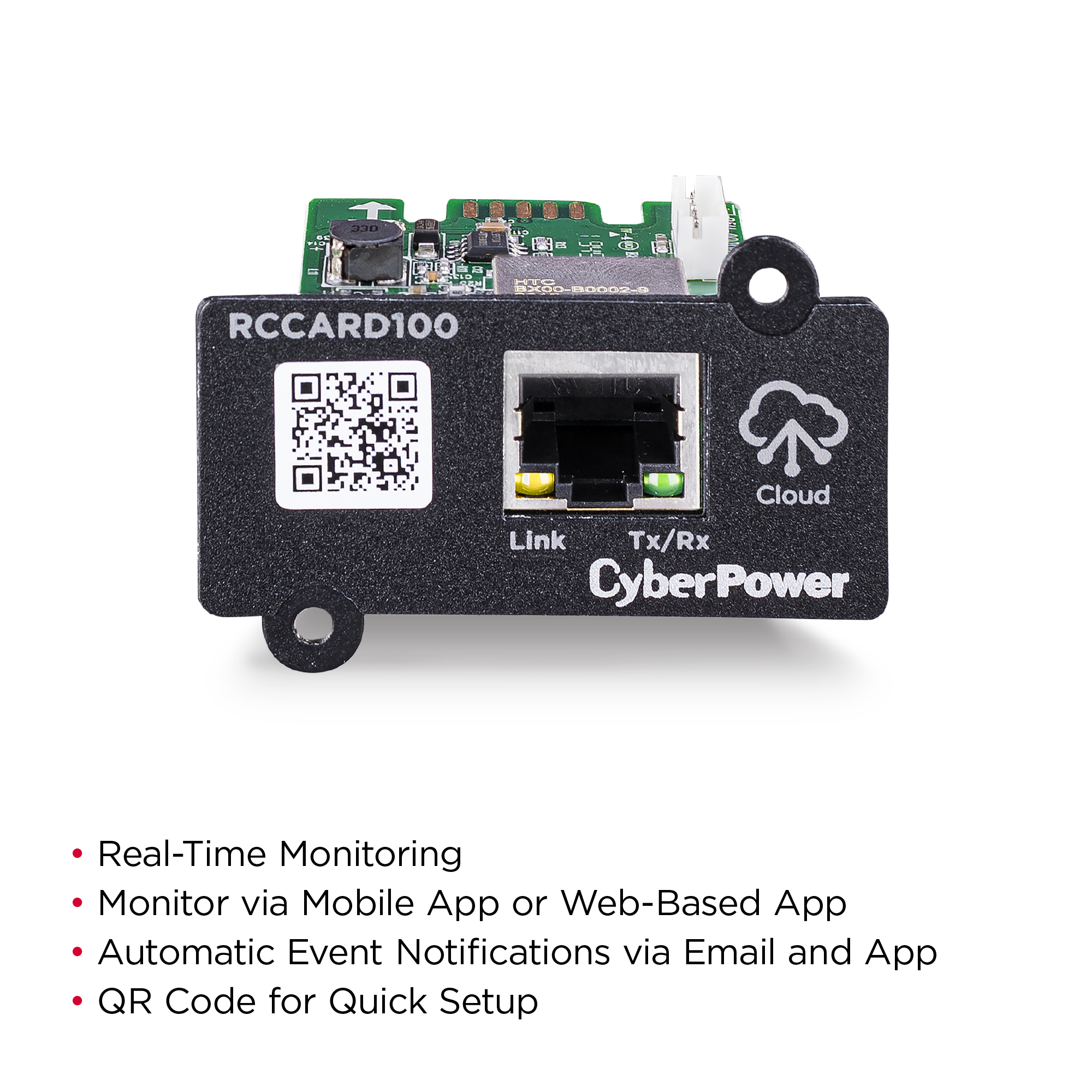

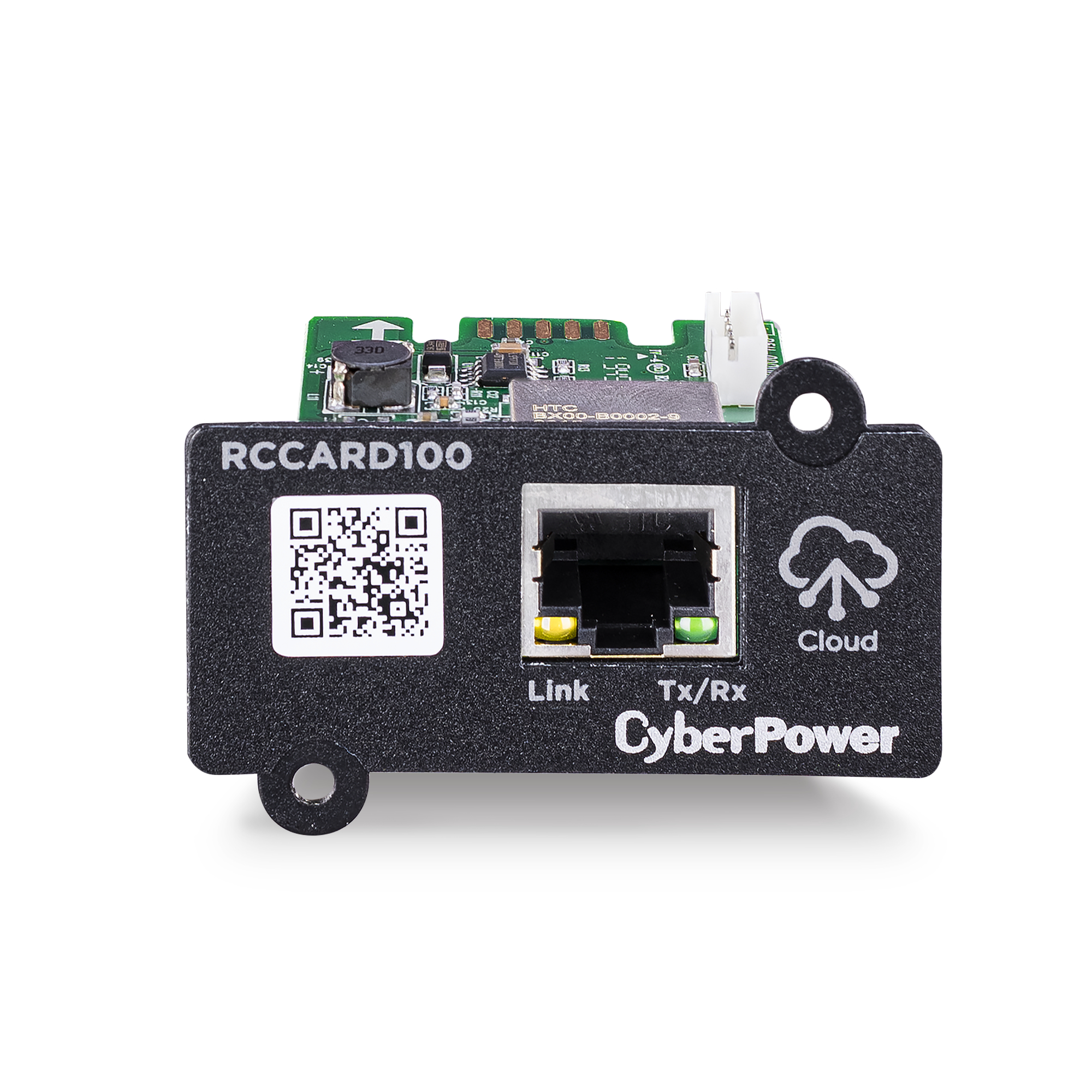

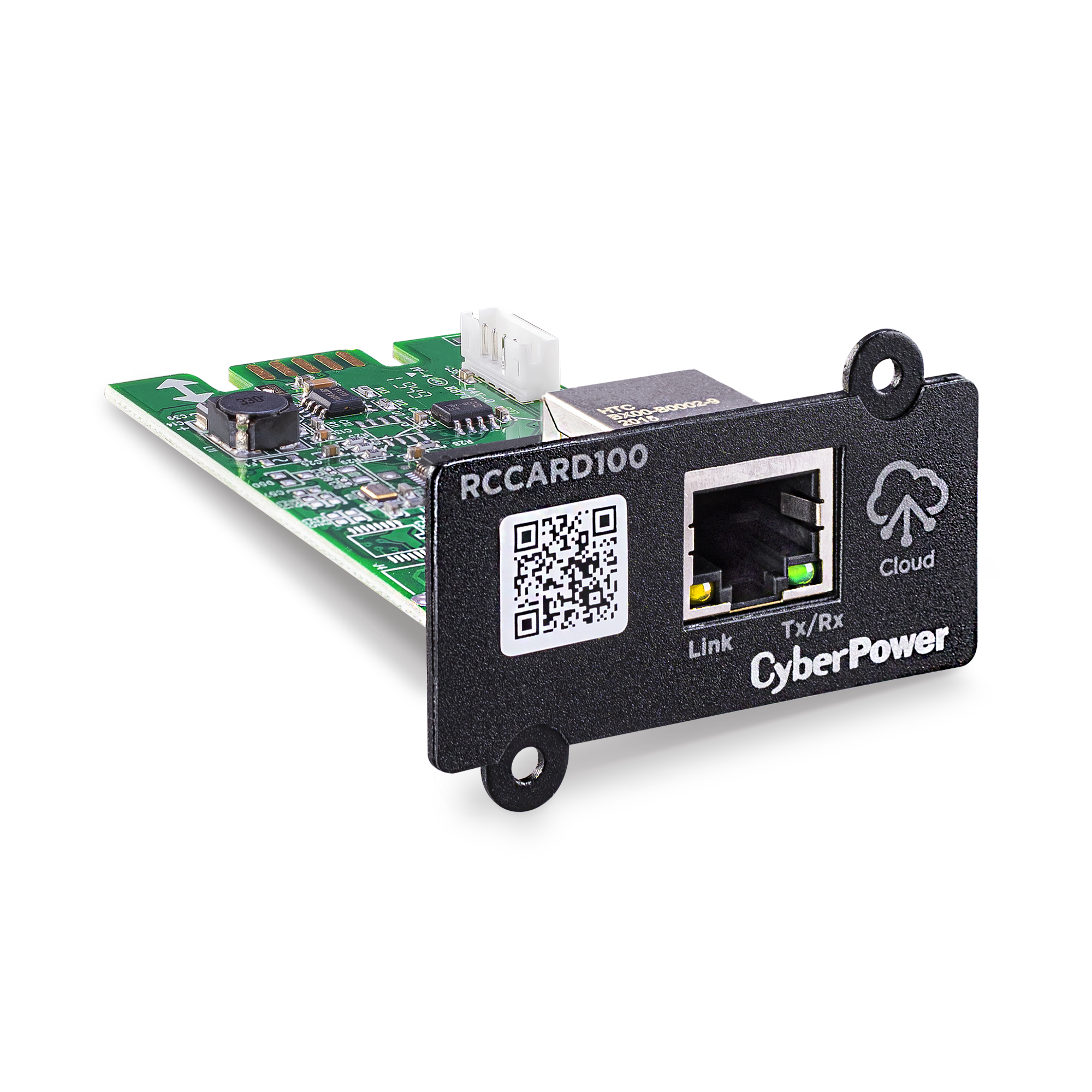

A UPS monitoring card, the CyberPower RCCARD100 monitors the operation of select CyberPower UPS that are setup with PowerPanel Cloud system. A secure web portal or mobile application is used to remotely monitor a UPS and provide notifications on power events.



The RCCARD100 is a hot-swappable plug-and-play design, allowing fast installation, or replacement without interrupting the operation of the UPS. An RJ-45 Ethernet connection is used to connect the card to a network and PowerPanel Cloud. The card supports user-upgradeable firmware to keep functionality up to date. The RCCARD100 comes with a three-year warranty.



Features:

  • Remote Monitoring via the Cloud: The RCCARD100 connects a UPS to PowerPanel Cloud to provide customers the ability to monitor the operation of their UPS.
  • QR Code for Quick Setup: Setup is as easy as taking a picture. The QR code makes fast work of adding your UPS to an account.
  • Automatic Notifications via Email and App: UPS connected with the RCCARD100 and PowerPanel Cloud can provide notifications using email and mobile app alerts.
  • Upgradable Firmware: Keep the RCCARD100 up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, bug fixes and are available through the app.
  • Three-Year Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
General
Data Link ProtocolEthernet 100Base-TX, Ethernet 10Base-T
Surge Protection & Filtering
Network Protection RJ45Ethernet RJ45
Management & Communications
LED IndicatorsTx/Rx
LINK
Physical
ColorBlack

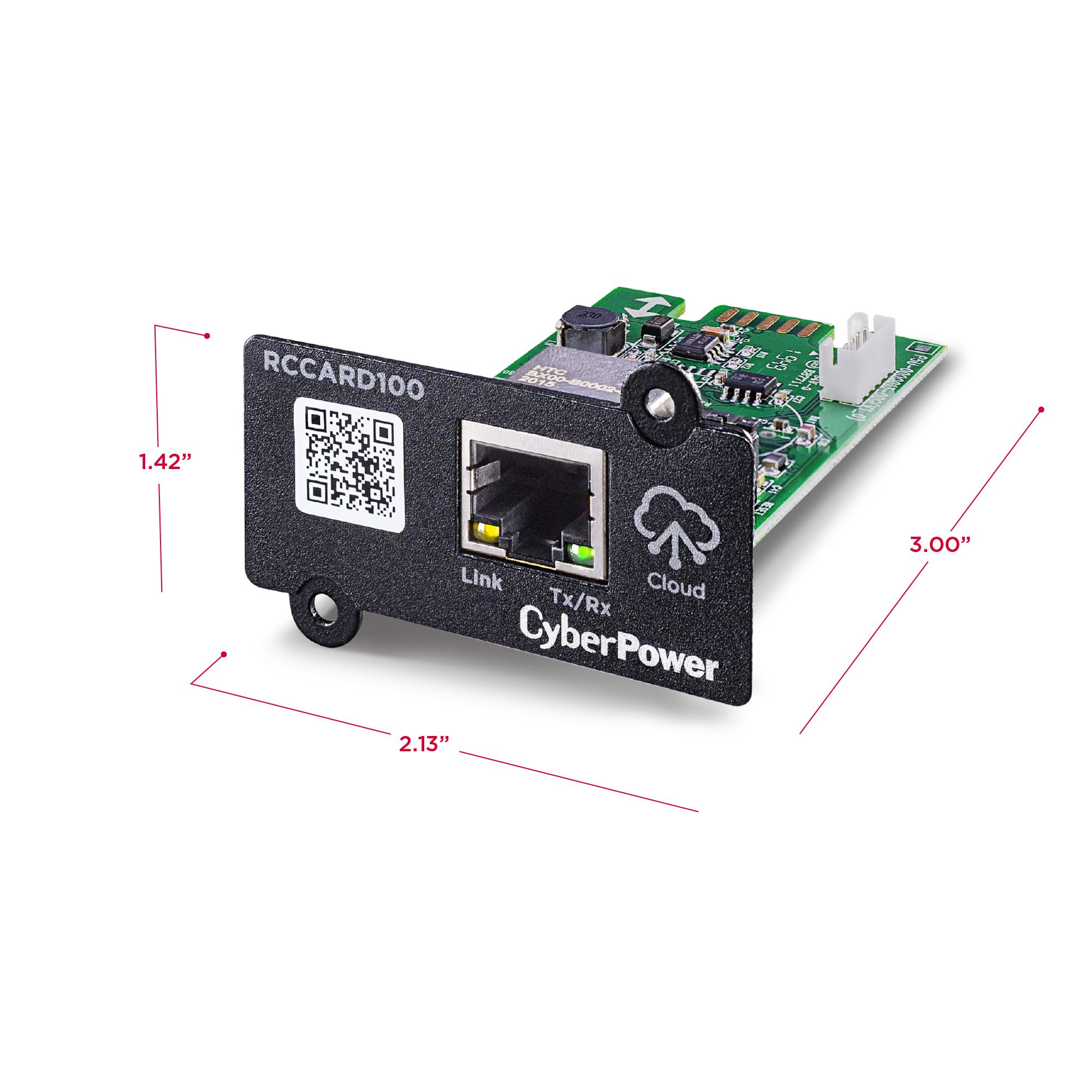

Dimensions
Physical Dimensions – (WxHxD) (cm)5.41 x 3.61 x 7.62 (cm)
Physical Dimensions – (WxHxD) (in)2.13 x 1.42 x 3 (in)
Physical Dimensions – (WxHxD) (mm)54 x 36 x 76 (mm)
Physical Weight (kg)0.03
Physical Weight (lb)0.07
Dimensions – Shipping
Shipping – Weight (kg)0.15
Shipping – Weight (lb)0.32
Shipping Dimensions – (WxHxD) (cm)5.84 x 16.51 x 16.76 (cm)
Shipping Dimensions – (WxHxD) (in)2.3 x 6.5 x 6.6 (in)
Shipping Dimensions – (WxHxD) (mm)58.42 x 165.1 x 167.64 (mm)
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 90 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature14 – 122 °F (-10 – 50 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyFCC DoC Class B
CE
Warranty
Extended Warranty OptionWEXT5YR-ACC1A
Product Warranty3 Year Limited Warranty
