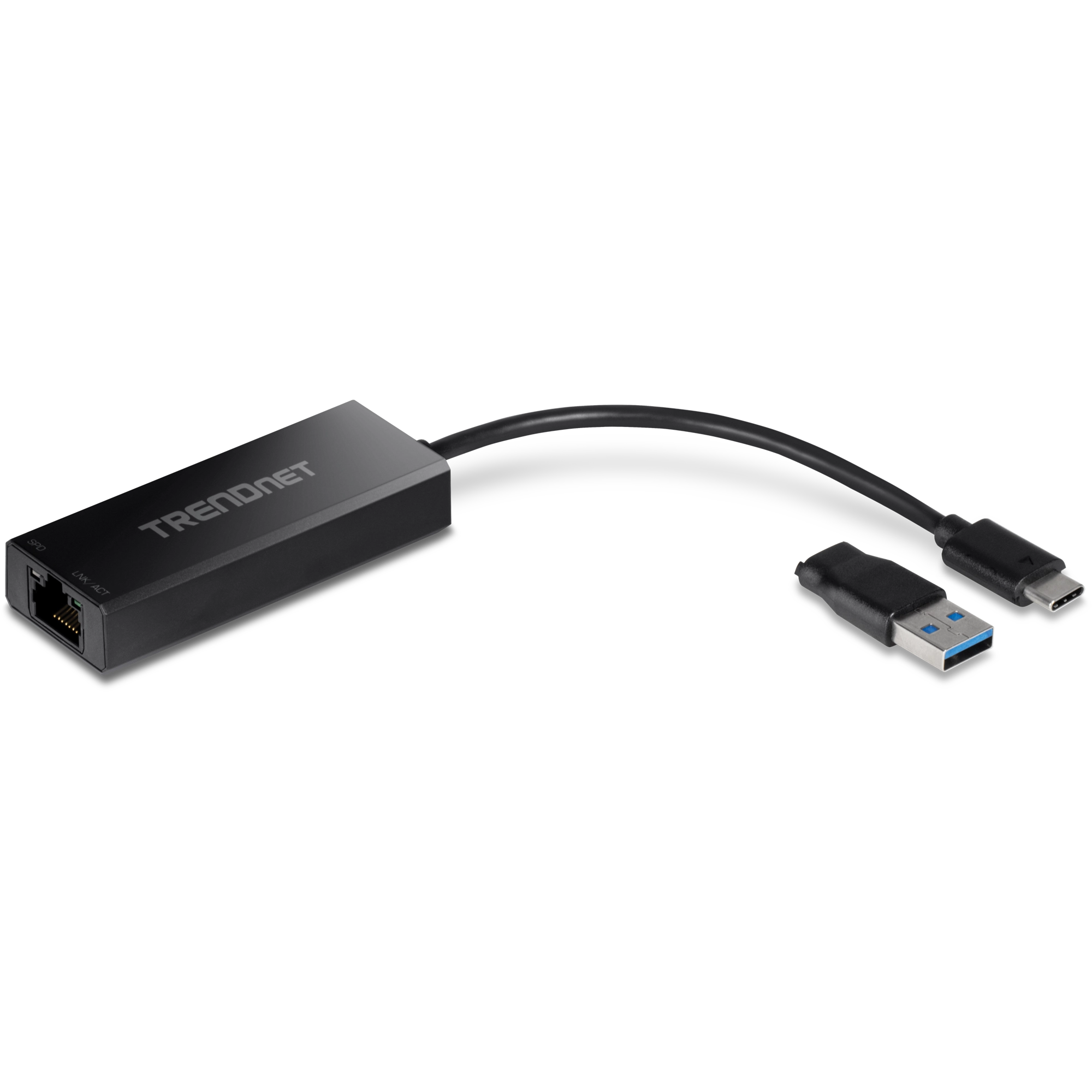

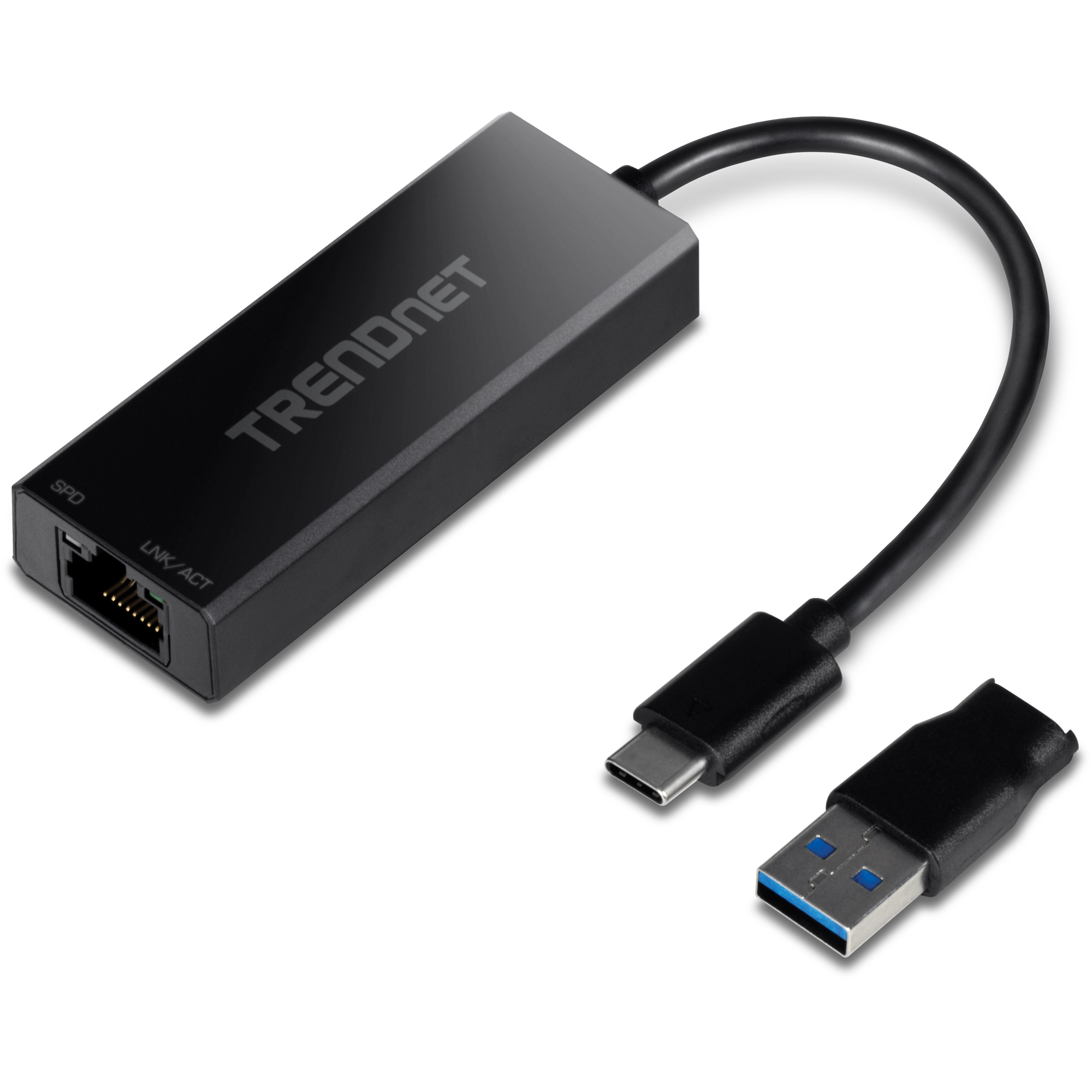

TRENDNET - TUC-ET2G - USB-C 3.1 to 2.5GBASE-T Ethernet Adapter
Part number:
TUC-ET2G
Price:

TRENDnet’s USB-C 3.1 to 2.5GBASE-T Ethernet Adapter, model TUC-ET2G, is equipped with a 2.5GBASE-T RJ-45 port that provides higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. This USB-C to 2.5G Ethernet adapter features a USB-C 3.1 interface, and includes a USB-C to USB-A adapter that easily connects to either a USB enabled notebook or desktop computer for high-speed 2.5GBASE-T connectivity.



USB-C 3.1

Use the USB-C to 2.5G Ethernet adapter to easily connect a USB-C 3.1 enabled notebook, or the included USB-C to USB-A adapter for desktop computers.



Integrated Cable

Integrated 14.2cm (5.59 in.) USB-C cable accommodates most installation scenarios.

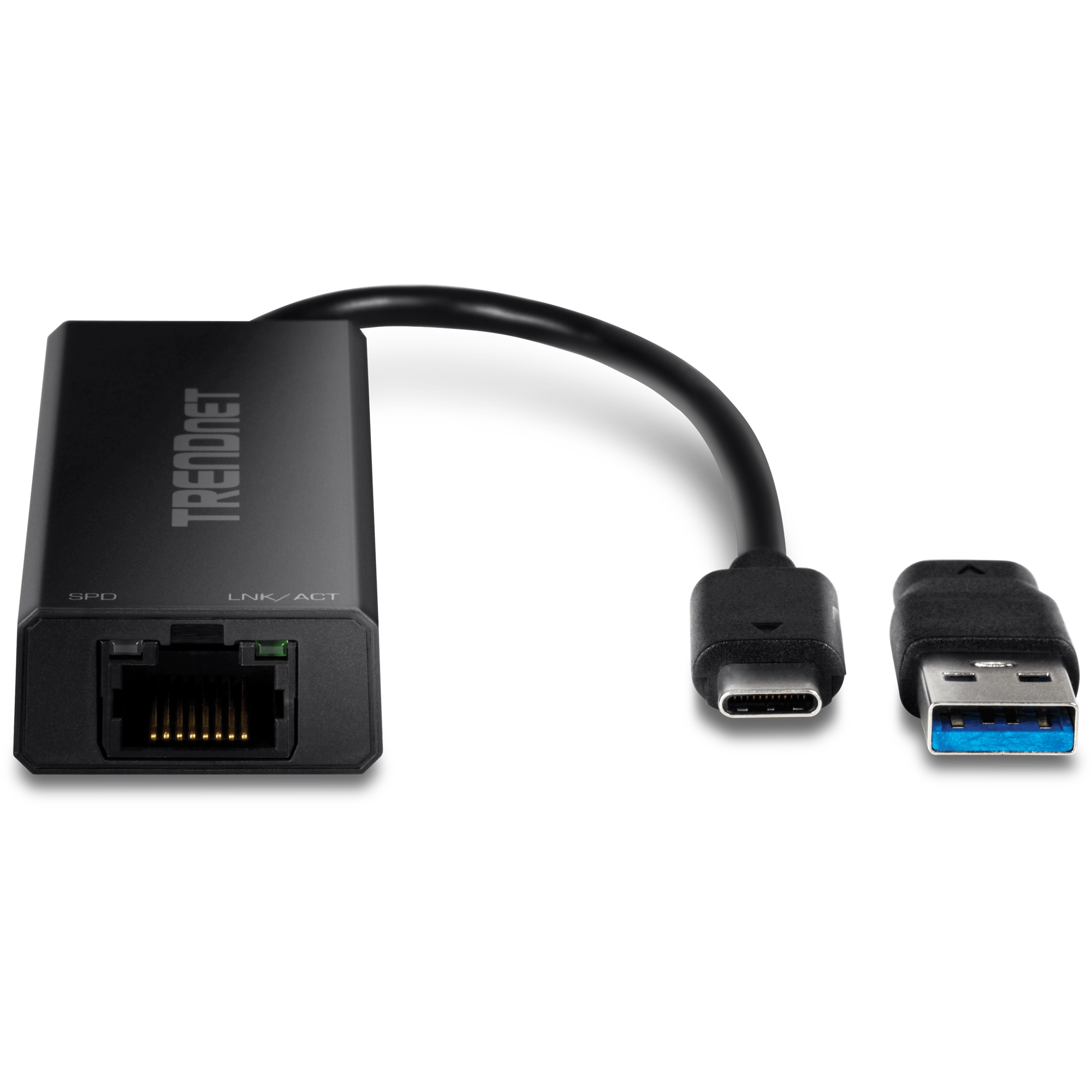

2.5GBASE-T Port

Equipped with a 2.5GBASE-T RJ-45 port that provides gigabit speeds of up to 2.5Gbps over existing Cat5e or better cabling.



Features:

  • USB-C 3.1 connection interface with USB-C to USB-A adapter
  • Compatible with existing Cat5e or better cabling
  • 2.5GBASE-T supports up to 2.5Gbps connection speeds
  • IEEE 802.3bz 2.5GBASE-T compliant
  • Supports 802.1p (CoS) and 802.1Q (VLAN)
  • Compact design
  • NDAA / TAA compliant (U.S. and Canada only)
Technical Specifications
Standards
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3bz
  • USB 3.1 Gen 1 Type C
Device Interface
  • 1 x 2.5GBASE-T port (2.5Gbps/1Gbps/100Mbps)
  • 1 x USB 3.1 Gen 1 Type C connector
  • 1 x USB 3.1 Gen 1 Type C to Type A converter
Maximum Data Rate
  • Up to 2.5Gbps Full Duplex (2.5GBASE-T port)
Special Features
  • Energy saving technology
  • Wake on LAN (suspend mode)
Compatibility
  • Windows® 11, 10, 8.1, 7
  • MacOS® 10.10 – 10.15
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
Dimensions
  • 73 x 28 x 14mm (2.8 x 1.1 x 0.55 in.)
  • 16.9cm (6.65 in.) cable length with USB Type-C to Type A converter
Weight
  • 26g (0.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year
