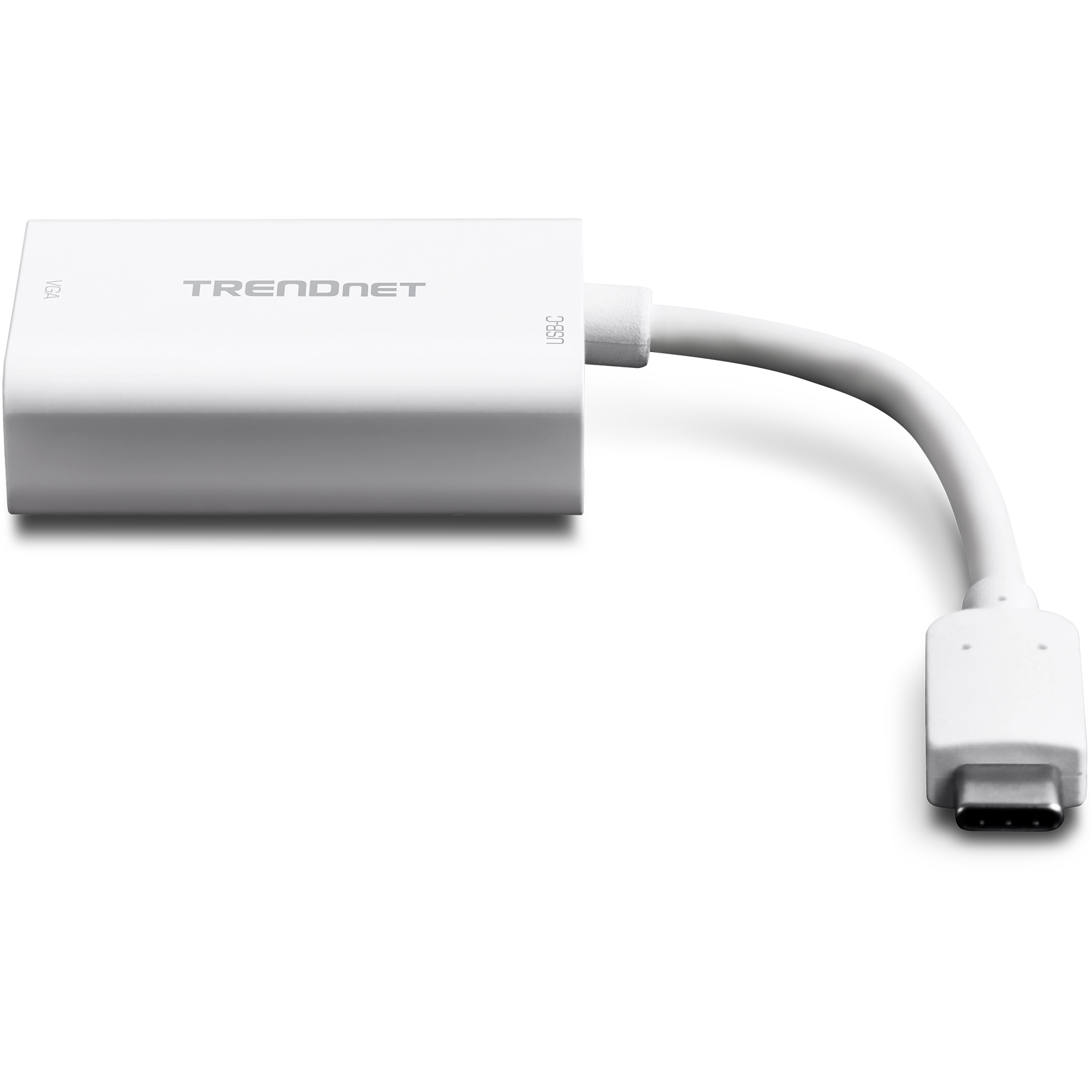

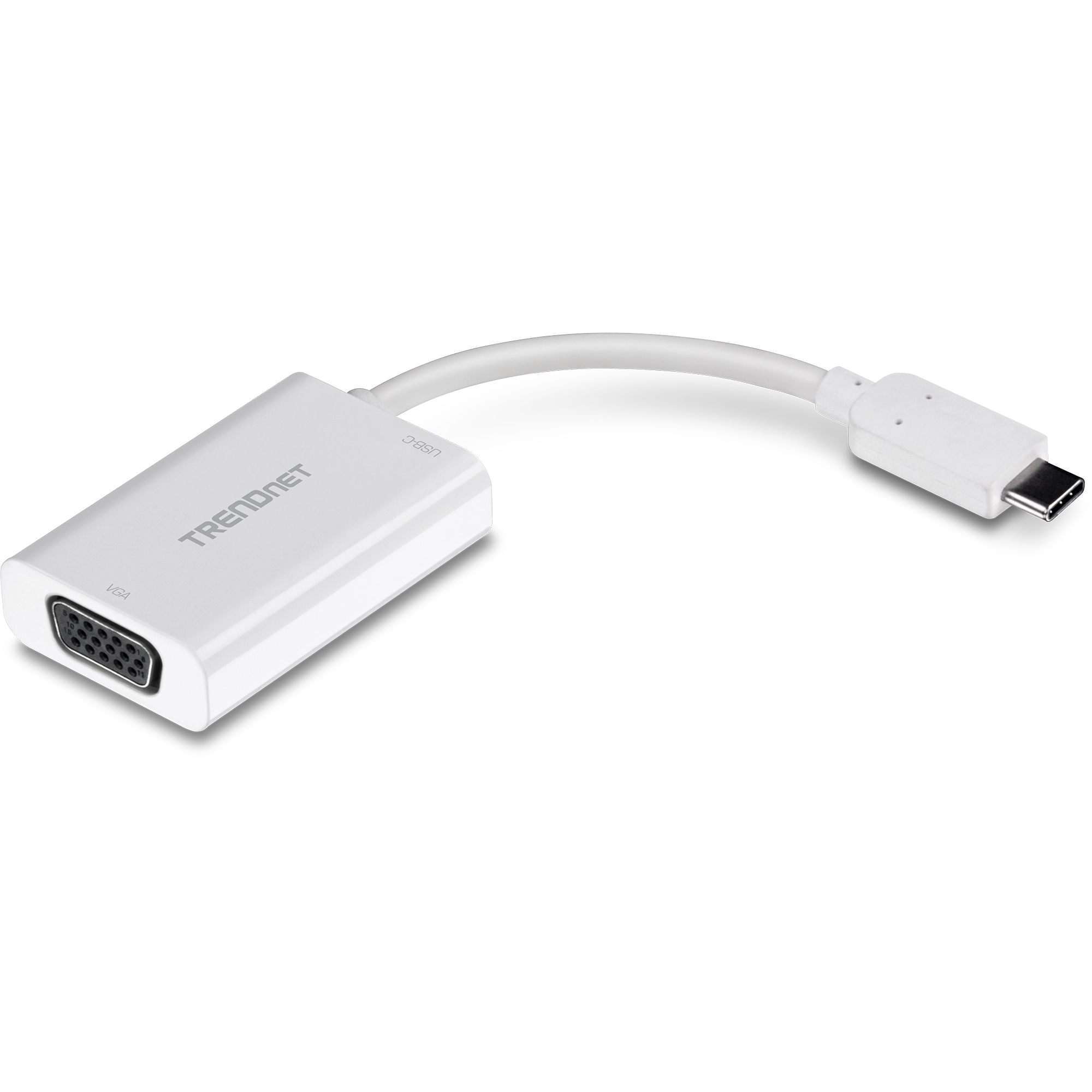

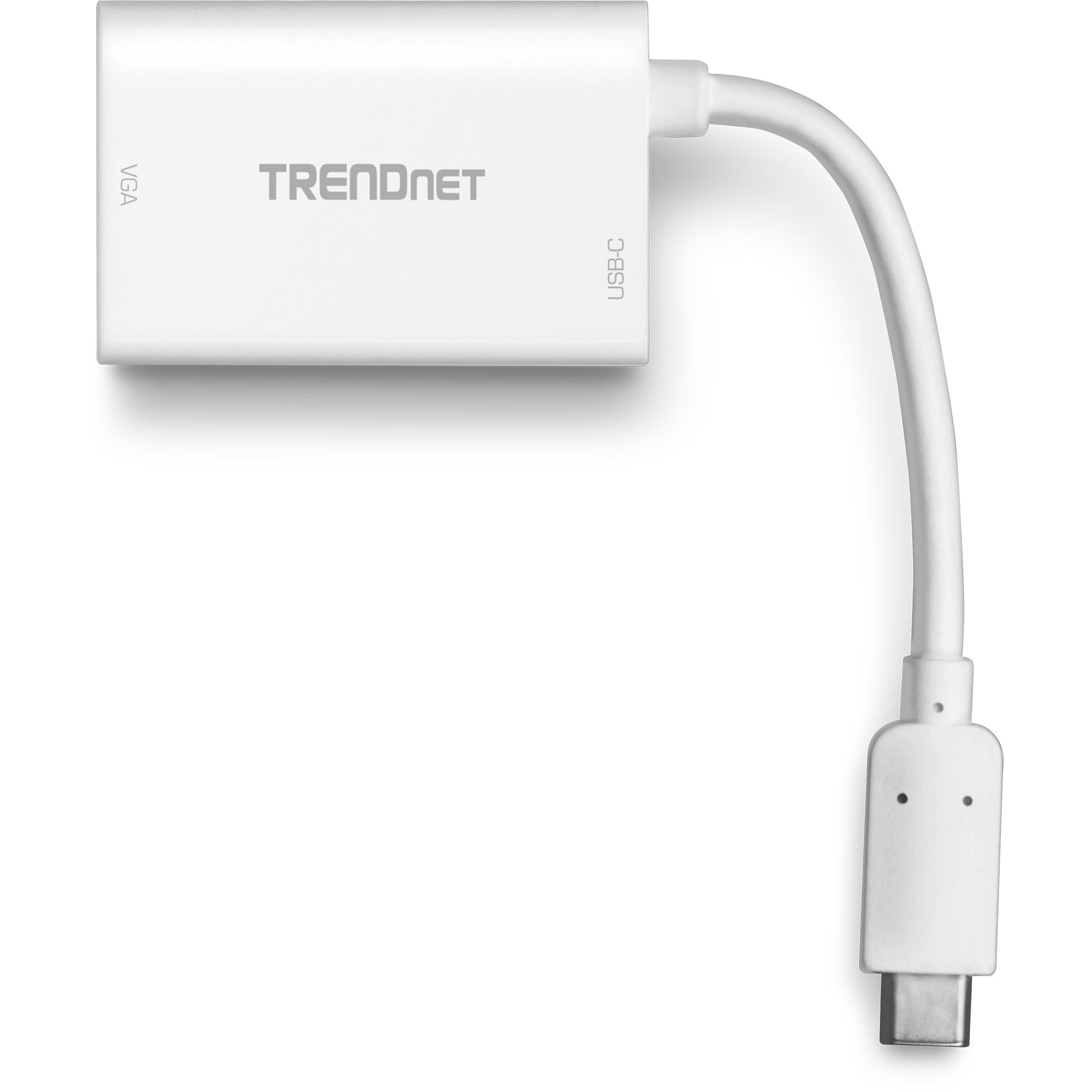

TRENDNET - TUC-VGA2 - USB-C to VGA HDTV Adapter with PD support
Part number:
TUC-VGA2
Price:

TRENDnet's USB-C to VGA 1080p HD Display Adapter with Power Delivery, model TUC-VGA2, adds an HD display to a USB-C powered notebook. Mirror your notebook PC's display to an HDTV or monitor, and experience flawless video with the USB-C to VGA connection. The USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using VGA.



VGA

Compatible with 1080p HD displays with a maximum resolution of up to 1920 x 1200 at 60 Hz

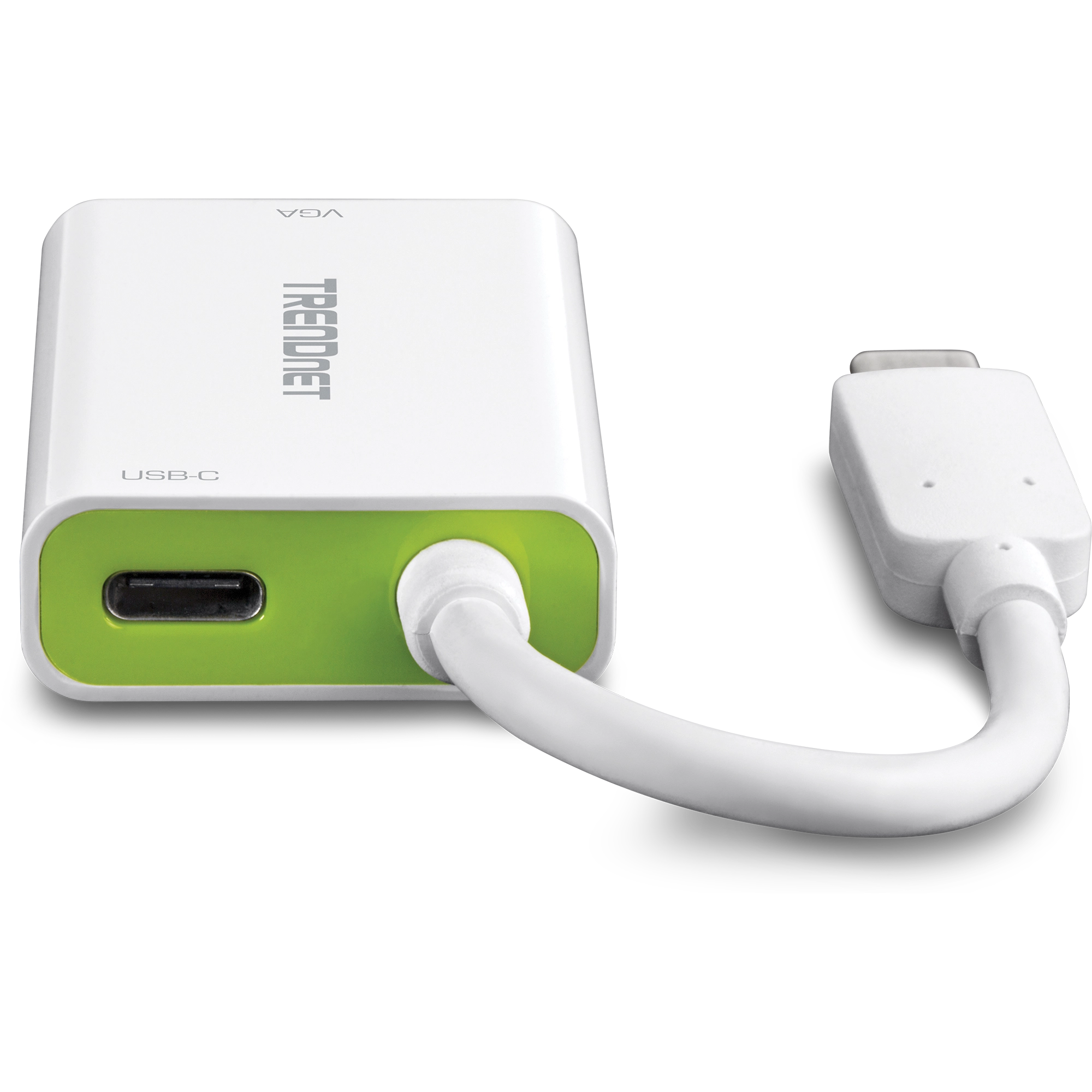

Power Delivery Port

USB-C power delivery port lets you charge a USB-C compatible notebook with the original charger while simultaneously using VGA



Integrated Cable

Flexible 10.1 cm (4 in) USB-C cable accommodates most installation scenarios


Features:

  • Mirror your laptop's HD display to any VGA monitor or TV
  • Supports resolutions up to 1920 x 1200 at 60 Hz
  • Flawless video with high speed USB-C to VGA connection
  • USB-C Power Delivery Compliant
  • Supports Chrome, Windows 10 and Mac operating systems
  • NDAA compliant
Technical Specifications
Standards
  • VGA
  • USB Type-C
Interface
  • 1 x VGA 15pin (Female) with Alt mode
  • 1 x USB Type C port (Male)
  • 1 x USB Type C power delivery (PD) port
Monitor
  • Full 1080p HD resolution support with a 60 Hz refresh rate
  • Max. 1920 x 1200 resolution at 60 Hz
PD port
  • Support up to PD power profile 4
Modes
  • Extend
  • Duplicate / Mirror
Display Controls
  • Define screen resolution
  • Rotate display left, right, upside down
  • Set as Main Monitor function transfers operating system controls to the display viewing field
  • Notebook Monitor Off function turns off the computer's primary display
  • Windows 10
  • Mac OS 10.X
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
Dimensions
  • 48 x 33 x 14.5 mm (1.9 x 1.3 x 0.6 in.)
  • 60 mm (2.4 in.) cable length
Weight
  • 20 g (0.7 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Quick Installation Guide
0.5mb
