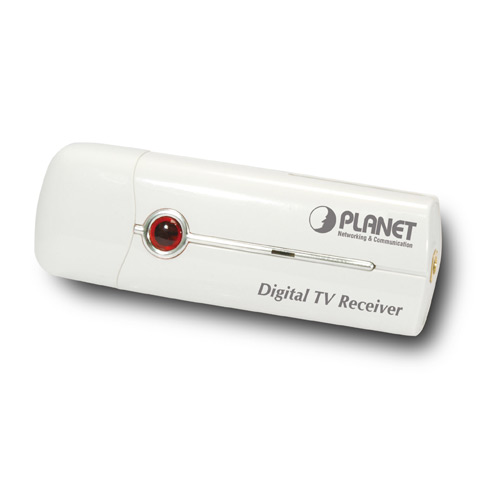

PLANET - DTR-100D - USB2.0 Digital TV Receiver (DVB-T)
Part number:
DTR-100D
Price:

Planet DTR-100D is a DVB-T Digital TV receiver that offers a complete and cost effective solution for Digital TV broadcasting. Planet DTR-100D connects Digital TV with your computer / notebook. the DTR-100D not only allows you to watch Free-To-Air digital terrestrial television channels with no subscription to pay but can also record real time digital TV programs directly to the hard disk on your computer / notebook.



Features:

  • Compliant with DVB-T Standard (ETS 300 744)
  • Compliant with USB 2.0
  • Supports Real Time Digital Video Recording (MPEG-2 compression)
  • Supports HDTV quality (Requires P4 3.0GHz or higher CPU, 512MB RAM or above)
  • Supports Schedule Recording
  • Supports Time-Shifting (Requires P4 2.0GHz or higher CPU)
  • Supports EPG (Where available) / Teletext (Where available)
  • Supports Snap Shot in JPEG format
  • Supports Multi-Channel preview / channel auto scan
  • Supports portable receiver / Subtitle
  • Multiple language (English, German, French, Italian, Dutch, Spanish, Portuguese, Traditional Chinese, and Simplified Chinese)
StandardDVB-T (ETS 300 744)
InterfaceUSB2.0
Connectors1 VHF / UHF connector (MCX type), 1 USB connector (B type)
TV Tuner75 Ohm (UHF / VHF) TV Antenna
Receiving Frequency174-870 MHz
Bandwidth6, 7, 8 MHz
Code Rate1/2, 2/3, 3/4, 4/5, 5/6 and 7/8
Support OSWindows 2000 (SP4) / XP (SP2) / VISTA(32/64bit)
Minimum System RequirementsPentium 4 compatible processor 1.2GHz or higher (2.0GHz recommended)
Minimum 256MB RAM or above (512MB recommended)
VGA card with minimum 32MB memory
AC97 compatible sound card
HD space at least 1 GB free for installation
Microsoft DirectX 9 or above
Windows 2000 or above
Windows Media Player 9 or above
