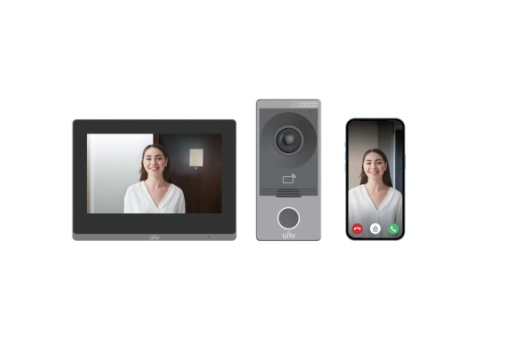

Uniview - KIT/201S/372S - Video Intercom KIT(Power supply)
Part number:
KIT/201S/372S
Price:
OEU-201S-HMK-W
- Metal casing.
- Supports call and intercom with the connected indoor station and app.
- Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
- Supports Wi-Fi.
- Built-in IC card reader.
OEI-372S-H-W
- ABS casing and glass panel, solid and durable.
- Supports Wi-Fi.
- Supports touchscreen operation.
- 1024 x 600 HD screen.
- Supports remote door opening by sending signal to the door station.
- Allows to view live video of connected door stations and network cameras.
| Model | KIT/201S/372S |
| Kit dimensions (L×W×H) | 268mm*213mm*180mm |
| Kit weight | 1.855kg |
| Model | OEU-201S-HMK-W |
| Power supply | DC12V ±25%, PoE power supply |
| Card capacity | 10000 |
| Operating system | Linux |
| Illuminator | IR light (adaptive) |
| WDR | Support |
| FOV | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Power consumption | < 10W |
| Volume adjustment | Support |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Audio input | Built-in mic |
| Audio output | Built-in speaker |
| Protocol | Uniview private protocol |
| Audio compression format | PCM, G711, MP3 |
| Audio compression bit rate | 128kbps |
| Button | Call button |
| Ingress protection | IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08 |
| Weight | 0.267kg |
| Mount method | Wall mount, flush mount |
| Interface | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
| Dimensions (L×H×W) | 79mm*171mm*34mm |
| Operating environment | - 30°C to 60°C, 10% to 90% RH noncondensing, outdoor |
| Model | OEI-372S-H-W |
| Power supply | DC12V ±25%, PoE power supply |
| Screen resolution | 1024 x 600 |
| Display screen | 7-inch ultra-thin TFT LCD touch screen |
| Operating system | Linux |
| Audio quality | Noise reduction, echo cancellation, auto gain control |
| Audio input | Built-in mic |
| Audio output | Built-in speaker |
| Audio compression format | MP3, G711 |
| Audio compression bit rate | 128kbps |
| Protocol | Uniview private protocol |
| TF card | 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
| Power consumption | < 10W |
| Weight | 0.377kg |
| Interface | Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wi-Fi |
| Dimensions (L×H×W) | 193.2mm*143.4mm*25mm |
| Operating environment | - 10°C to 55°C, 10% to 90% RH noncondensing, indoor |
