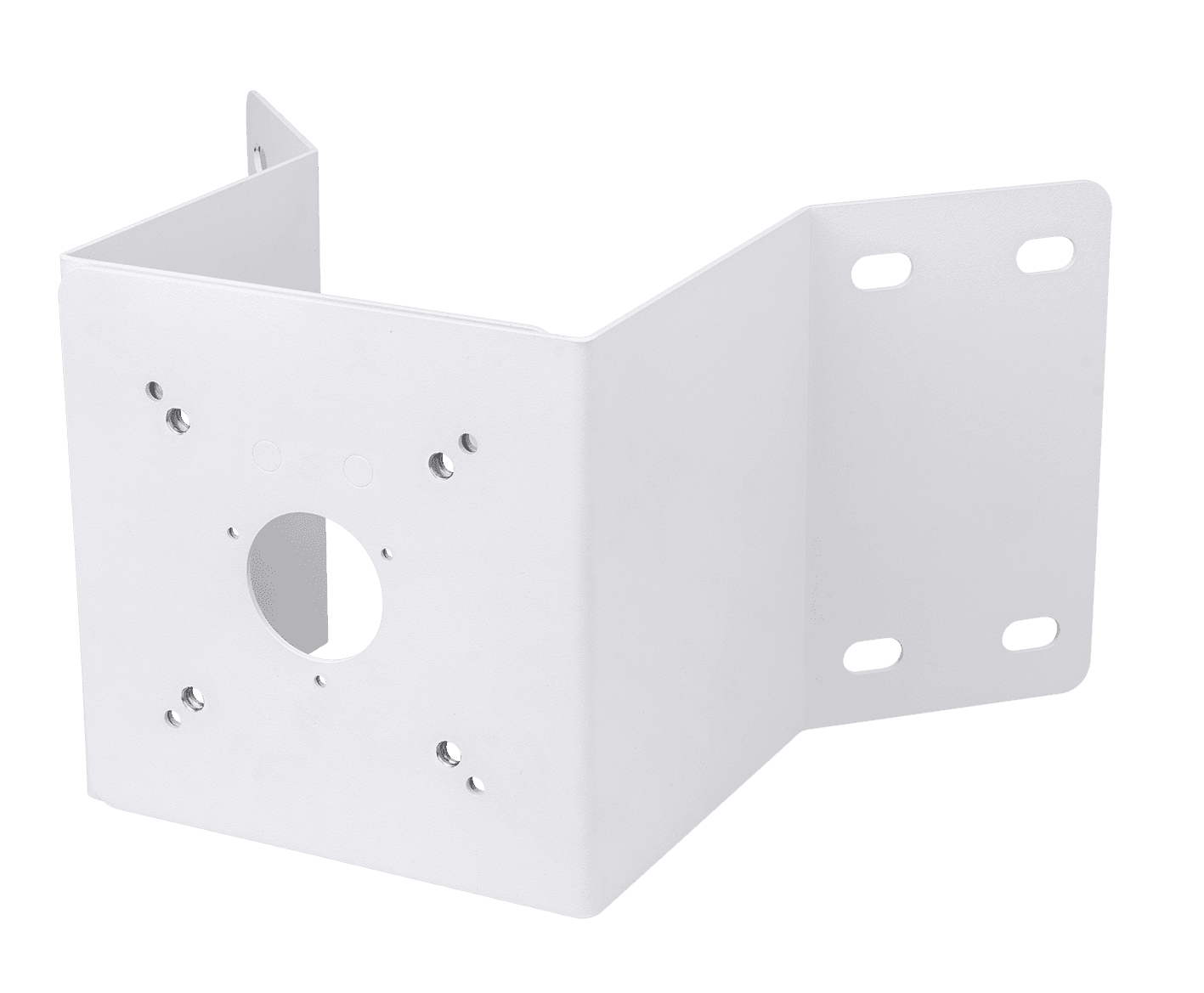

Vivotek - AM-412 - Corner Mount Adapter
Part number:
AM-412
Price:
Vivotek AM-412 Corner Mount Adaptor
- Compatible Mounts: Wall Mount Bracket: AM-218 & Junction Box: AM-714, AM-715
- Supported Cameras: IB836B-EHF3, IB836B-EHT, IB836B-HF3, IB836B-HT, IB836BA-EHF3, IB836BA-EHT, IB836BA-HF3, IB836BA-HT, IB8382-EF3, IB8382-ET, IB8382-F3, IB8382-T, IB9371-EHT, IB9371-HRT, IB9371-HT, IB9381-EHT, IB9381-HRT, IB9381-HT, MS8391
| Model | AM-412 |
| P/N | 900034902G (v03) |
| Material | SECC |
| Color | White |
| Dimensions | 315 (L) x 216 (W) x 170 (H) mm |
| Weight | 2,186 g |
| Box Dimension | 396 (L) x 197 (W) x 243 (H) mm (1 pc) |
| Box Weight | 2,752 g |
| Carton Dimension | 493 (L) x 412 (W) x 438 (H) mm (4 pcs) |
| Carton Weight | 11,500 g |
| Note | This product is recommended for general outdoor environments, excluding coastal areas with high salinity. |
- Model
- AM-412
- P / N
- 900034902G (v03)
- Material
- SECC
- Colour
- White
- Dimensions
- 315 (D) x 216 (W) x 170 (H) mm
- Weight
- 2,186 g
- Box dimension
- 396 (D) x 197 (W) x 243 (H) mm (1 pc)
- Box weight
- 2,752 g
- Carton dimension
- 493 (D) x 412 (W) x 438 (H) mm (4 pcs)
- Carton weight
- 11,500 g
Name
Description
Size
Downloads
File
Quick Installation Guide
2mb
