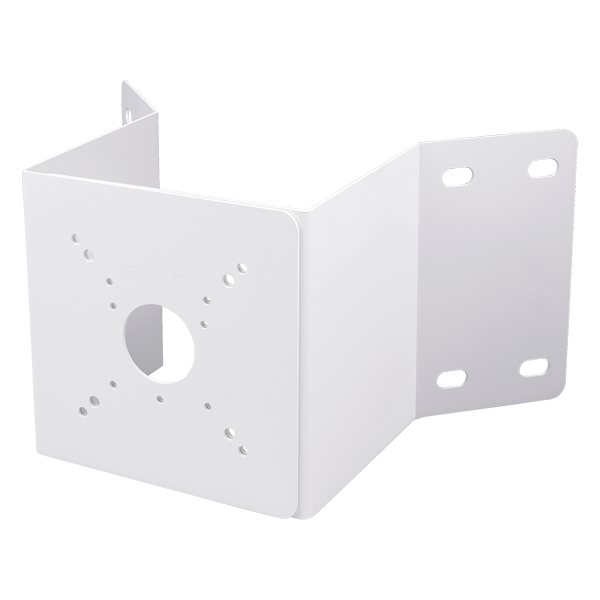

Vivotek - AM-412_V04 - Corner Mount Adapter
Part number:
Price:
Product Overview
The VIVOTEK AM-412_V04 is a heavy-duty corner mount adapter designed to provide a secure and stable mounting point for professional bullet cameras. Made from SECC (electro-galvanized steel) with a clean white finish, it is engineered to withstand outdoor environments while maintaining a sleek profile. It is a critical accessory for achieving 270-degree surveillance coverage at building corners
Key Configuration
- • P/N: VIO900000066 (V04)
- • Material: SECC (electro-galvanized steel)
- • Color: white
- • Dimensions: 315 × 216 × 170 mm (L × W × H)
- • Weight: 2186 g
| P/N | VIO900000066 (V04) |
| Material | SECC |
| Color | White |
| Dimensions | 315 (L) x 216 (W) x 170 (H) mm |
| Weight | 2186g |
| Box Dimension | 396 (L) x 197 (W) x 243 (H) mm (1pcs) |
| Box Weight | 2752g |
| Carton Dimension | 493 (L) x 412 (W) x 438 (H) mm (4 pcs) |
| Carton Weight | 11500g |
| Supported Models | |
| Compatible Models | IB9391-EHTV-V2 IB9365-EHTV-V2 IB9367-EHT-V2 IB9367-EHT-V2 (5-50MM) IB9387-EHTV-V3 (2.7-13.5MM) IB9387-EHTV-V3 (7-22MM) IB9387-EHTV-V3 (12-40MM) IB9387-LPR-V3 TB9332-E TB9333-E IB9380-H IB9369 IB9368-HT IB9388-HT IB9383-HV IB9383-HTV IB9389-EH-V2 IB9389-EHT-V2 IB9399-EHV IB9399-EHTV-V3 IB9389-EHV-V3 IB9389-EHTV-V3 |
Name
Description
Size
Downloads
File
Specsheet
0.3mb
