The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This outdoor product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs. Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.

Features:

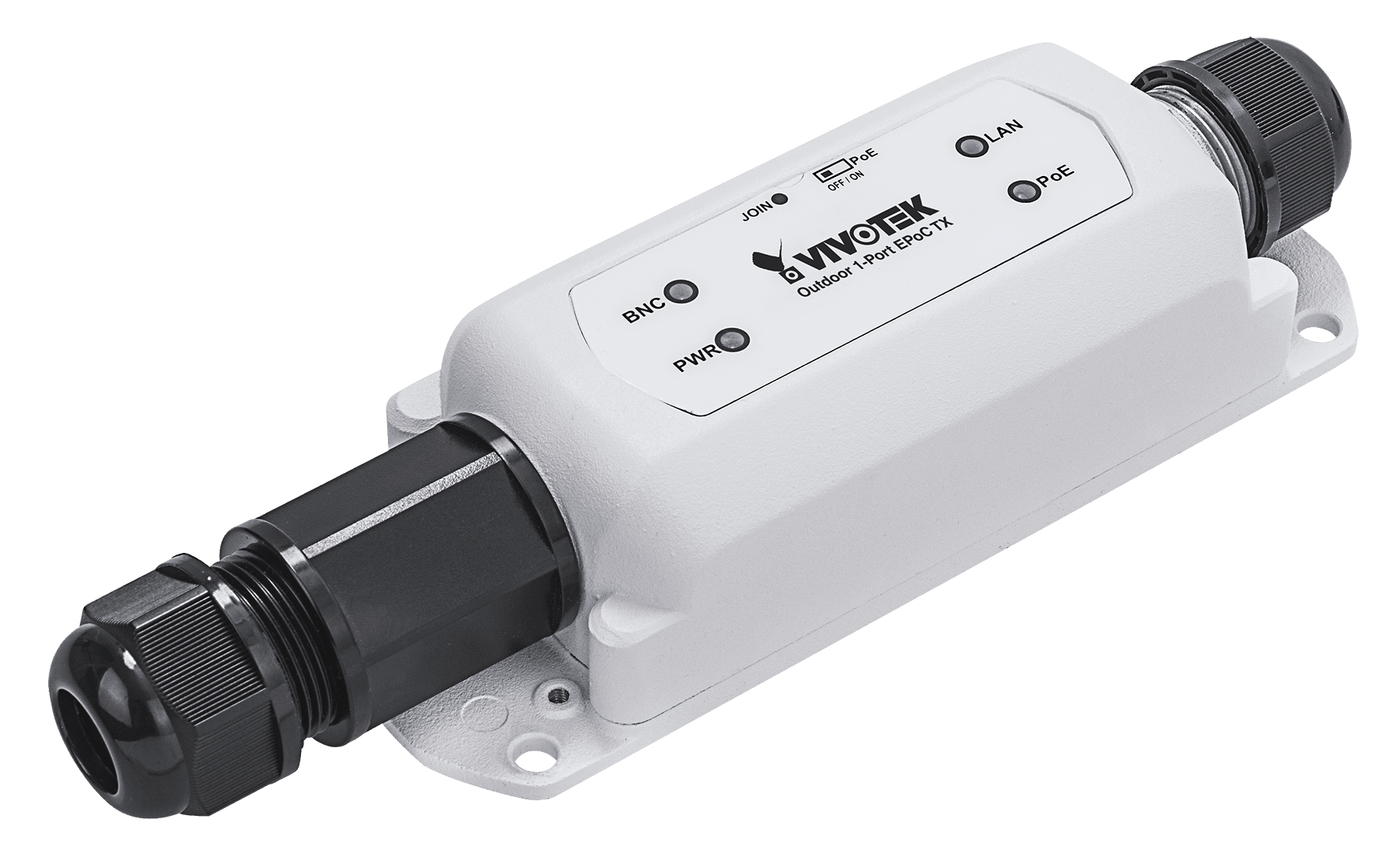

• Model: AP-FEX-0150-T
• Product Description: Outdoor 1 Port EPoC Tx Module
• BNC Port (75Ω): 1
• Ethernet Port: 1
• PoE on/off switch: 1
• Transmission Mode: Tx
• Max. PoE Distance (RG6): 1.2 km/7.5W
• Max. Ethernet Distance (RG6): 2.4 km
• Power Input: DC 56V
• Power Consumption: 3W
• PoE Standard: 802.3 at/af
• BNC Surge Protection: 6KV
• Water Proof: IP67
• Vandal Proof: IK10
• Dimensions: 194 (D) x 56 (W) x 40 (H) mm
• Weight: 0.3 kg (0.66lb)
• Operating Temperature: -30˚C ~ 60˚C ( -22˚F ~ 140˚F)
• Storage Temperature: -40˚C ~ 85˚C ( -40˚F ~ 185˚F)
• Operating Humidity: 5% ~ 95% non-condensing
• Safety Certifications: CE, FCC, VCCI
