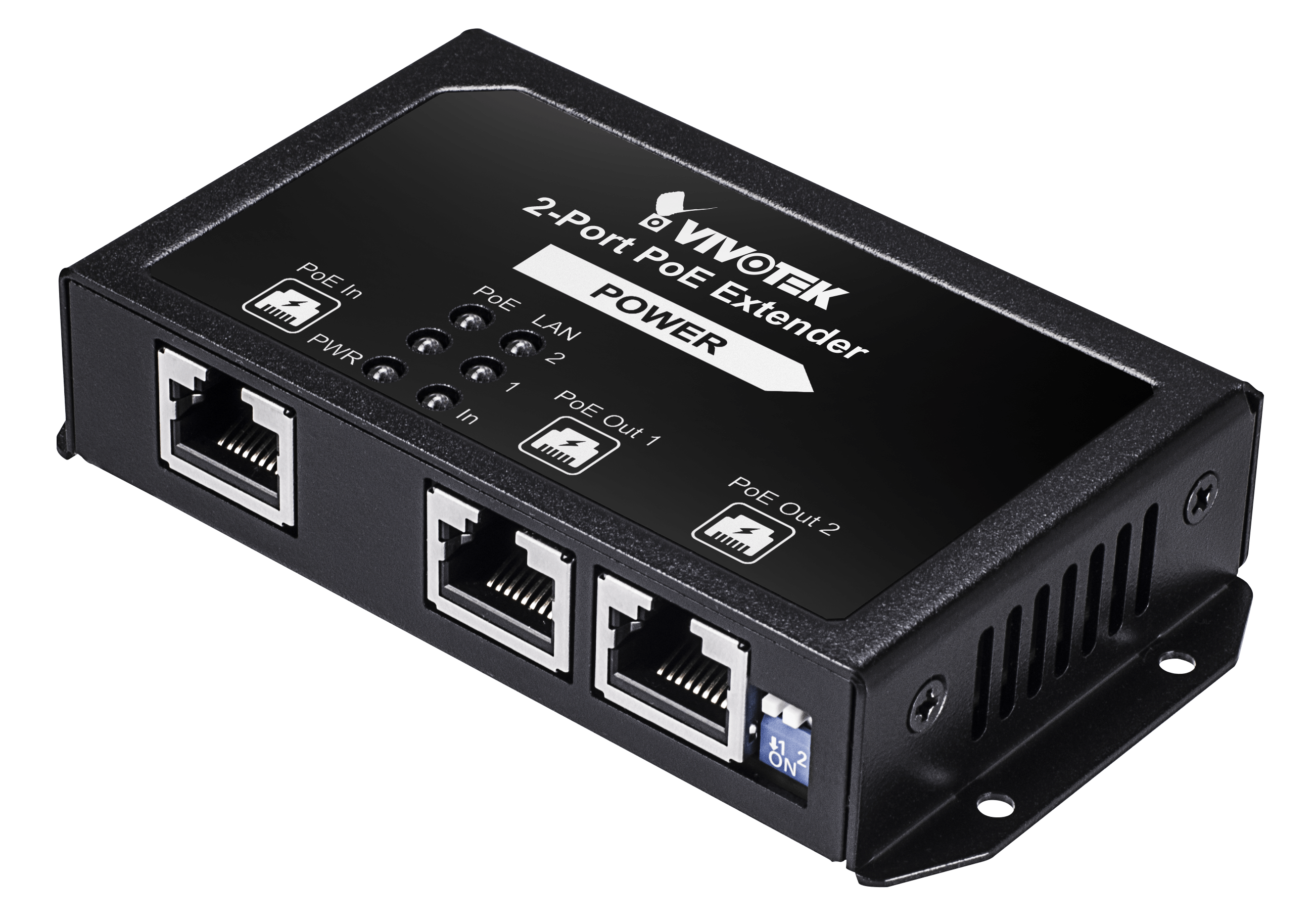

Indoor 2-Port FE PoE Extender.
Features:
- 2-port Indoor 95/60/30 W PoE Extender
- Supported PSEs providing 95W/60W/30W PoE
- 0°C ~ 50°C
- 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required)
| Model | AP-FXC-0210 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Power Specifications | |
| Extension Distance | 2 Units, Daisy-chain Installation up to 300M Extension (No Local Power Required) |
| PoE Input Power | 95W/60W/30W PoE |
| PoE Output Power | 48~55VDC, Max. 70W |
| PD Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PSE Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PD Fast Ethernet (RJ45) | 1 |
| PSE Fast Ethernet (RJ45) | 2 |
| PSE Power On/Off Dip Switch | Supported |
| Networking Specifications | |
| Total Fast Ethernet Port | 3 |
| Mac Table | 2K |
| Bandwidth | Max. 100 Mbps |
| Switching Capacity | 1 Gbps |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Mechanical Specifications | |
| Dimensions (W x H x D) | 108 x 58 x 22 mm |
| Weight | 0.19 kg |
| LED Indicators | Power, LAN, PoE |
| Environmental Specifications | |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% (non-condensing) |
| Certifications | |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
