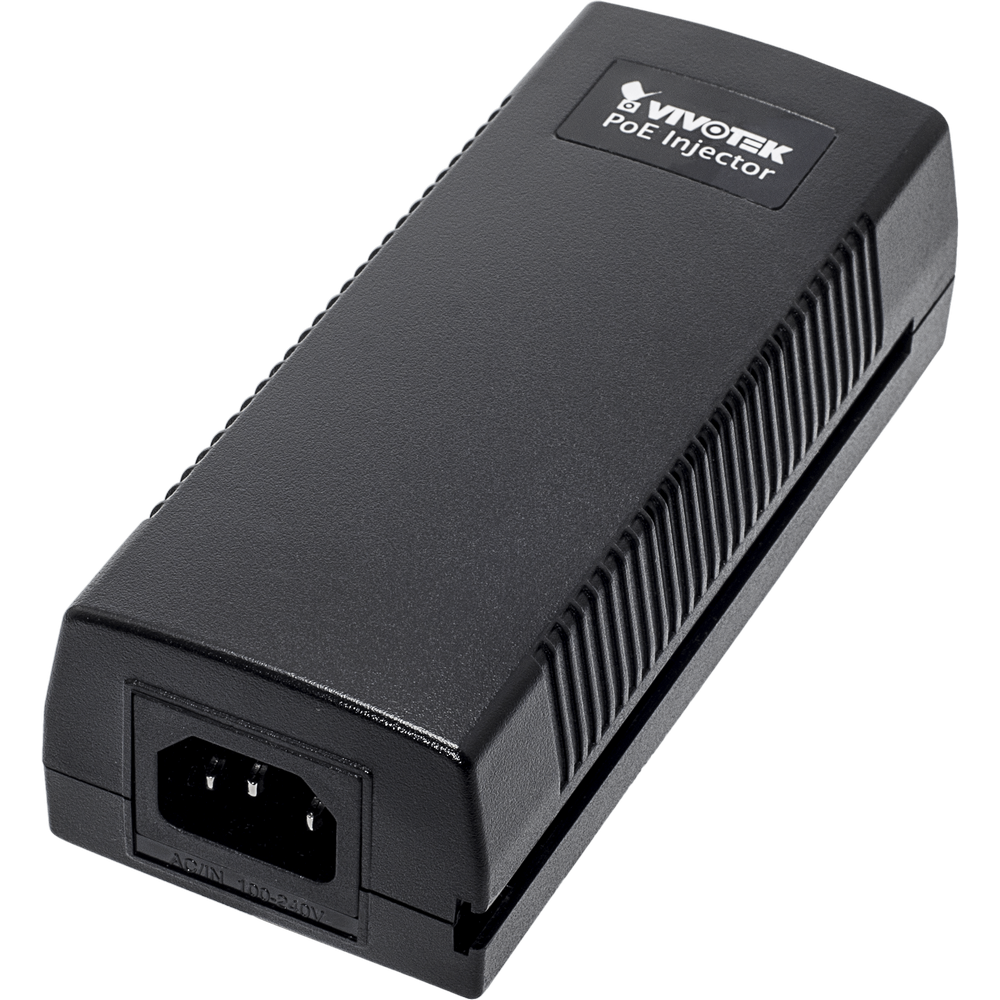

Vivotek - AP-GIC-010A-030 - Indoor IEEE802.3at 30W Gigabit PoE Injector, * NC/NR
Part number:
AP-GIC-010A-030
Price:
Indoor IEEE802.3at 30W Gigabit PoE Injector * Does not support camera's heater and fan * Non-returnable and Non-cancellable, Supports: SD8311E, SD8312E, SD8313E, SD8362E.
Features:
Hardware Specifications
- Ethernet Ports: 1 x Gigabit Ethernet (RJ45)
- PoE Ports: 1
- Resolution: Megapixel/D1/VGA
- Compression: MJPEG/MPEG-4/H.264/H.265
- Compatible Cameras: VIVOTEK Network Cameras
- Power Requirement: 100~240VAC / 50~60Hz
- Power Consumption: 35W
- Dimensions: 146 (L) x 64 (W) x 42 (H) mm
- Weight: 0.2 kg
- Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F) with 10~90% RH (Non-condensing)
- What's Included: Power cord, power adapter, QIG
- Warranty: 2 years
Power over Ethernet Specifications
- Filtering/Forwarding Rates: 10Mbps/100Mbps/1000Mbps
- Per Port PoE Power Output: 54VDC/30W
- Total PoE Power Budget: 54VDC/30W
- Power Pin Assignments: 1/2(+), 3/6(-
- Regulation Compliance: CE, C-Tick, FCC, VCCI, LVD
- Standards Compliance: IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet), IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet
| Model | AP-GIC-010A-030 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Ethernet | |
| Gigabit Ethernet (RJ45) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet | Supported |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| 1000Base T | Cat. 5e, 6, 7 UTP/STP |
| *It is highly recommended to use standard Cat. 5e/6/7 cables which are compliant with the 3P/ ETL standard. | |
| PoE Function | |
| Number of PoE Out Ports 1 | |
| PoE Output Power | 54VDC/30W |
| 802.3at Standard Compatible | Yes |
| 802.3af Standard Compatible | Yes |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Supported |
| General | |
| LED Indicators | Power, PoE |
| Power Input | 100~240VAC / 50~60Hz |
| Power Consumption | 35W |
| Dimensions | 146 (L) x 64 (W) x 42 (H) mm |
| Weight | 0.2 kg |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Humidity | Operating: 10~90% (Non-condensing) Storage: 10~90% (Non-condensing) |
| Safety Certifications | CE, C-Tick, FCC, VCCI, LVD |
| Accessory | |
| Included Accessories Power cord, QIG | |
