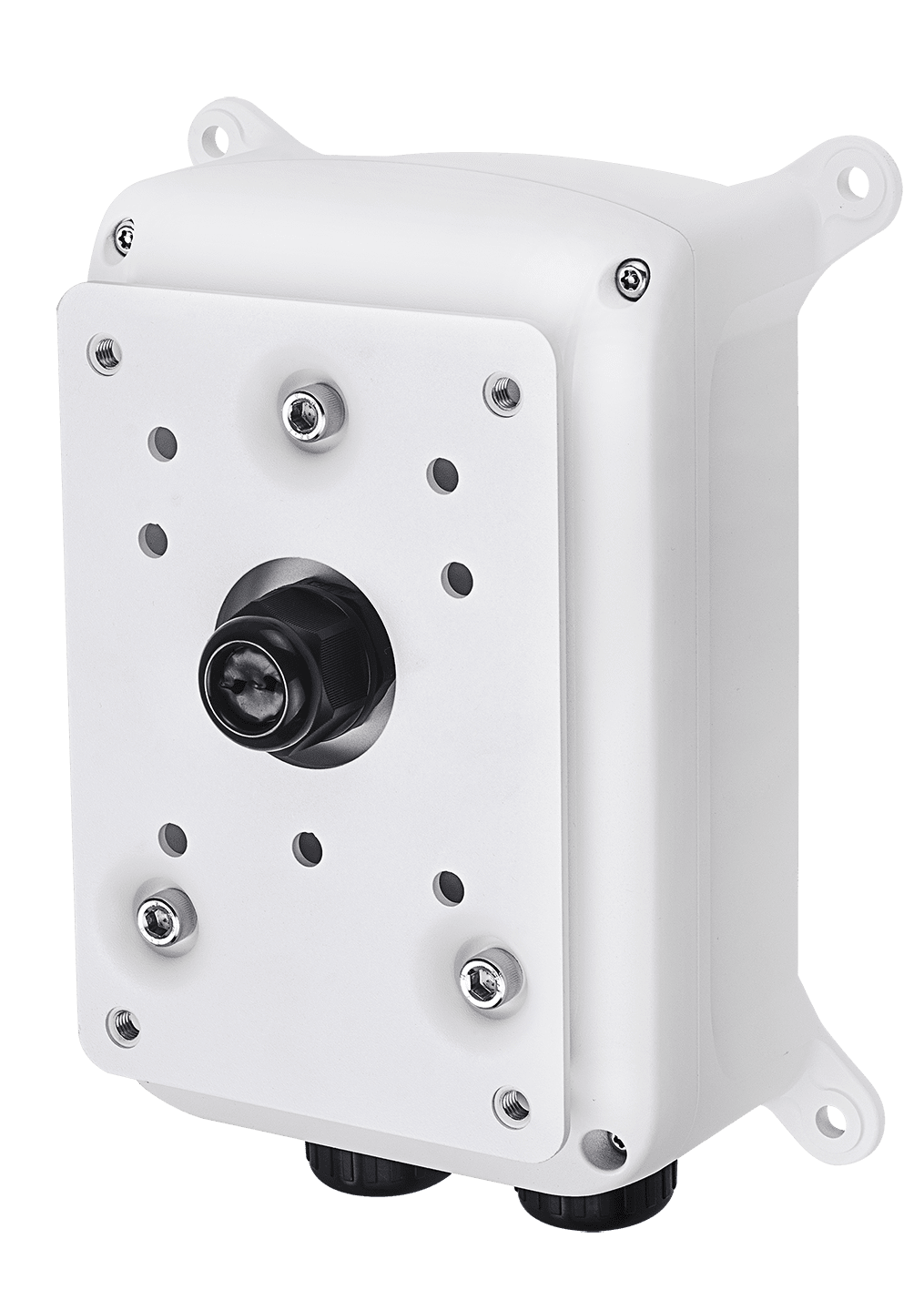

Vivotek - AP-GIC-015B-095 - Outdoor 1Xge 95W Poh/Poe Injector With Adaptor

Outdoor 1Xge 95W Poh/Poe Injector With Adaptor.

Features:

Supported Models

• IP Camera: SD9361-EHL, SD9362-EH, SD9362-EHL, SD9362-EH-v2, SD9363-EHL, SD9364-EH, SD9364-EHL, SD9364-EH-v2, SD9364-EHL-v2, SD9365-EHL, SD9366-EH, SD9366-EHL, SD9366-EH-v2, SD9374-EHL
• Enclosure: AE-239/AE-244/AE-23E/AE-23F
• Pole Mount: AM-314/AM-315
• Corner Mount: AM-414

Ethernet

• Gigabit Ethernet 10/100/1000Mbps (RJ45) 1

Standards

• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
• IEEE 802.3at Power over Ethernet Plus Supported

Transmission Media

• 10Base T Cat. 3, 4, 5 UTP/STP
• 100Base TX Cat. 5, 5e UTP/STP
• 1000Base T Cat. 5e, 6, 7 UTP/STP

PoE Function

• Number of PoE Port 1
• Max. PoE Output Power/Per Port 54VDC/95W
• 802.3at Standard Compatible Yes
• Over Current Protection Supported
• Circuit Shorting Protection Supported
• Total PoE Power Budget 95W
• Power Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PD Auto Detection Supported

General

• Power Input 100~240V AC / 50~60Hz
• Power Consumption 100W
• Surge Protection Data/ PoE port 12KV
• Surge Protection AC Power 10KV
• Waterproof IP67
• Vandal Proof IK10
• Dimensions 255.2 (L) x 199.9 (W) x 90 (H) mm
• Weight 3.35. kg
• Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
• Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
• Humidity Operating: 10~90% (Non-condensing)
• Storage: 10~90% (Non-condensing)
• Safety Certifications CE, C-Tick, FCC, VCCI
