The EPoC (Ethernet Power over Coaxial) switch is the best networking solution for transferring power over analog to IP cameras. This product line combines the PoE switch and EPoC Rx module into one device, reducing costs and providing ethernet and power over coax. By adopting VIVOTEK EPoC switches, customers now can deploy IP surveillance up to 1200m away without changing their legacy coaxial cable.

Features:

• Model: AW-FCT-050A-250

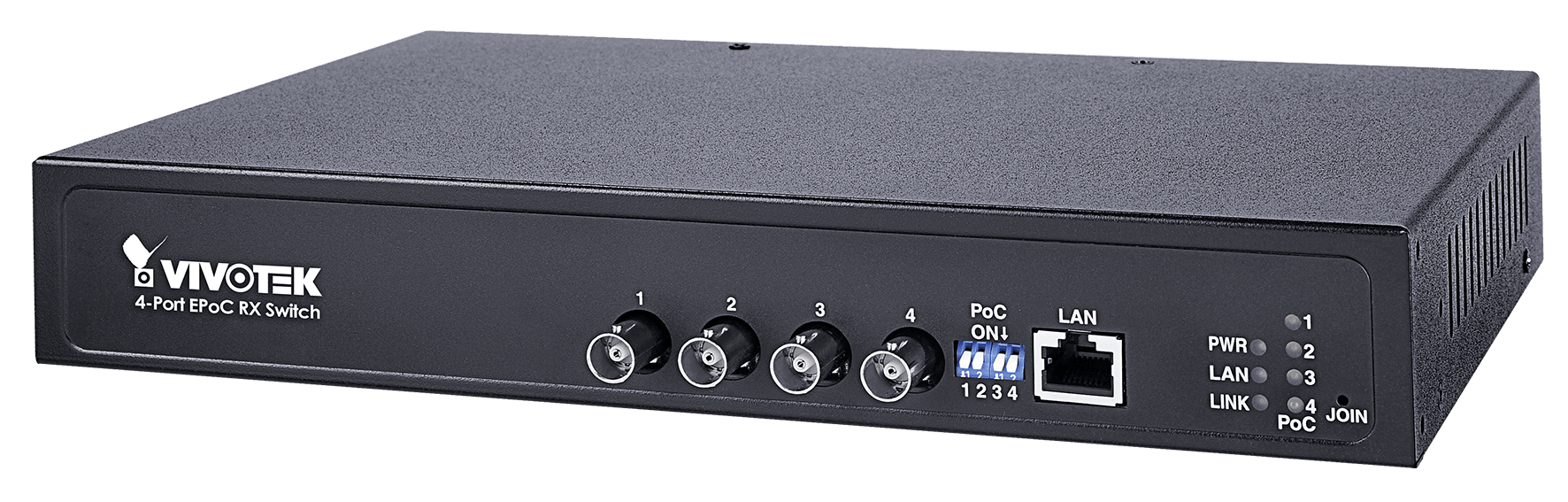

• Product Description: 4 Port Unmanaged EPoC Rx Switch
• BNC Port: (75Ω) 4xFE
• Ethernet Port: 1xGE
• PoE on/off Switch: 4
• Transmission Mode: Rx
• Max. PoE Distance (RG6): 1.2 km/7.5w per port
• Max. Ethernet Distance (RG6): 2.4 km per port
• Power input: 100VAC ~ 240VAC 56 VDC
• PoE Standard: 802.3at/af
• BNC Surge Protection: 6KV
• Dimension: 280 (D) x 180 (W) x 44 (H) mm
• Weight: 1 kg (2.20 lb)
• Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Storage Temperature: -20°C ~ 85°C (-4°F ~ 185°F)
• Operating Humidity: 5% ~ 95% non-condensing
• Safety Certification: CE, FCC, VCCI, LVD
