Vivotek - AW-FET-060P-060 - V-Series 5MP AI 180° Pano Wall IP Camera
Part number:
AW-FET-060P-060
Price:
- • Adaptive Extended PoE Up to 250m
- • VLAN Segmentation
- • Video QoS
- • PD Alive
- • 6KV Surge Protection
| Product Information | |
|---|---|
| Segment | Unmanaged PoE Switch |

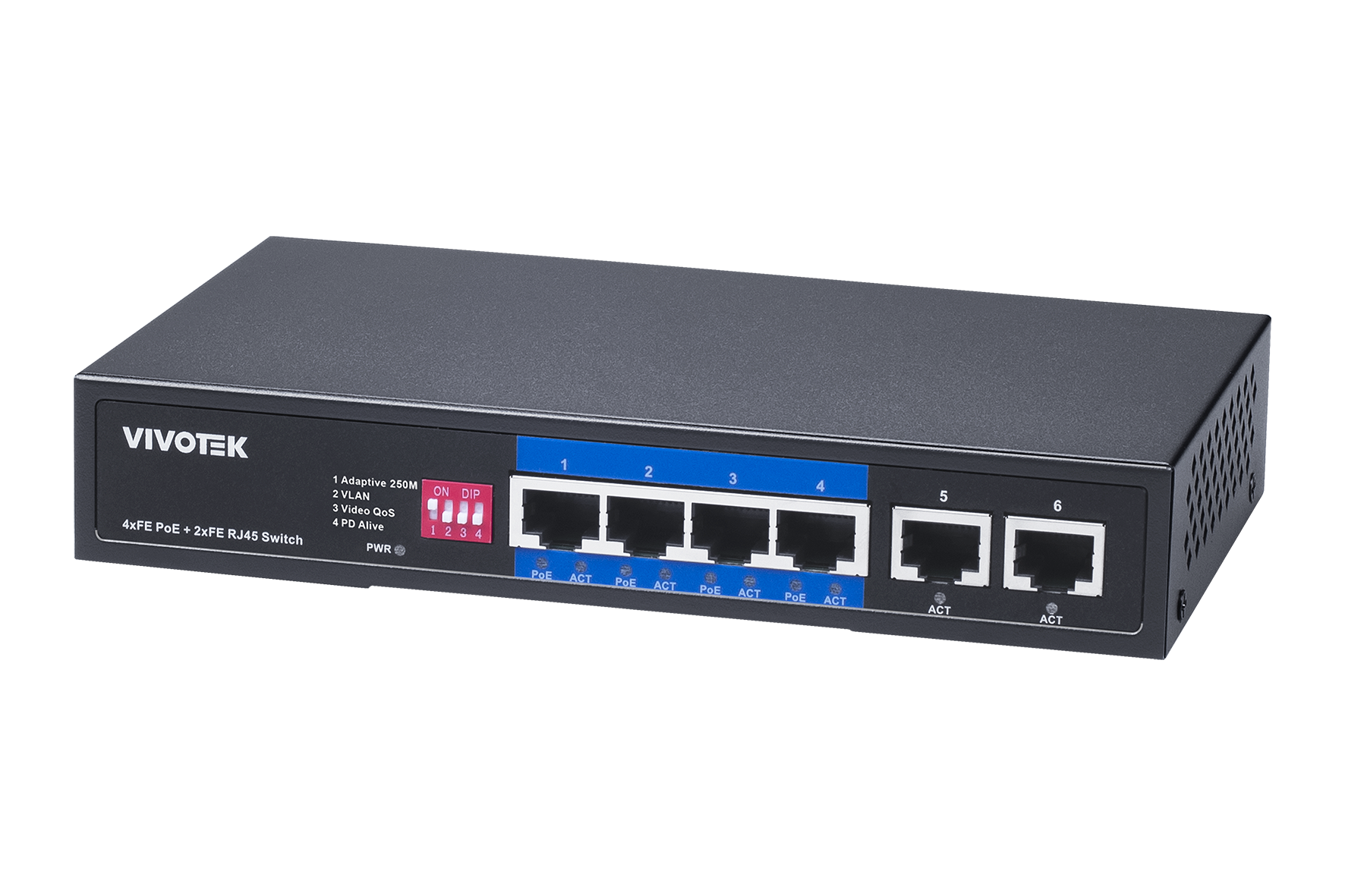

| Product Description | 4xFE PoE + 2xFE RJ45 Switch |
| Port Configuration | |
| PoE Port Ethernet | 4xFE PoE |
| Uplink Port Ethernet | 2xFE RJ45 |
| Total Ports | 6 |
| PoE Function | |
| PoE Port | 4 |
| Max. PoE Output Power | 30W |
| PoE Power Budget | 60W |
| PoE Standard | 802.3 af/at |
| PoE Pin Assignment | 1/2 (+), 3/6 (-) |
| Surge Protection | 6KV |
| HW Performance | |
| Switching Bandwidth | 1.2 Gbps |
| Forwarding Rate | 0.89 Mpps |
| MAC Address | 2K |
| Jumbo Frames | 1,536 Bytes |
| Max. Power Consumption | 65W |
| Surveillance Features | |
| Extended Mode (up to 250m/10mbps) | Adaptive >100m with 10Mbps <100m with 100Mbps |
| VLAN | Yes |
| Video QoS | Yes |
| PD Alive | Yes |
| Environmental Specifications | |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10 ~ 90% RH |
| Mechanical Specifications | |
| Dimensions | 180(L) x 105(W) x 32(H) |
| Weight | 0.5 kg |
| Power Source | |
| Power Input | 100V ~ 240V |
| Frequency | 50 ~ 60 Hz |
| Certifications | |
| Types | CE, FCC, UKCA, LVD, VCCI, BSMI |
| Included Accessories | |
| Content | Power Cord, QIG |
Name
Description
Size
Downloads
File
Datasheet_Unmanaged_PoE_Switch_EN_2.pdf
0.5mb
File
Spec_AW-FET-060P-060_EN.pdf
0.4mb
File
Certification_AW-FET-060P-060_BSMI.pdf
0.1mb
File
Certification_AW-FET-060P-060_CE.pdf
0.4mb
File
Certification_AW-FET-060P-060_FCC.pdf
0.4mb
File
Certification_AW-FET-060P-060_LVD.pdf
0.2mb
File
Certification_AW-FET-060P-060_UKCA.pdf
0.4mb
File
Certification_AW-FET-060P-060_VCCI.pdf
0.4mb
