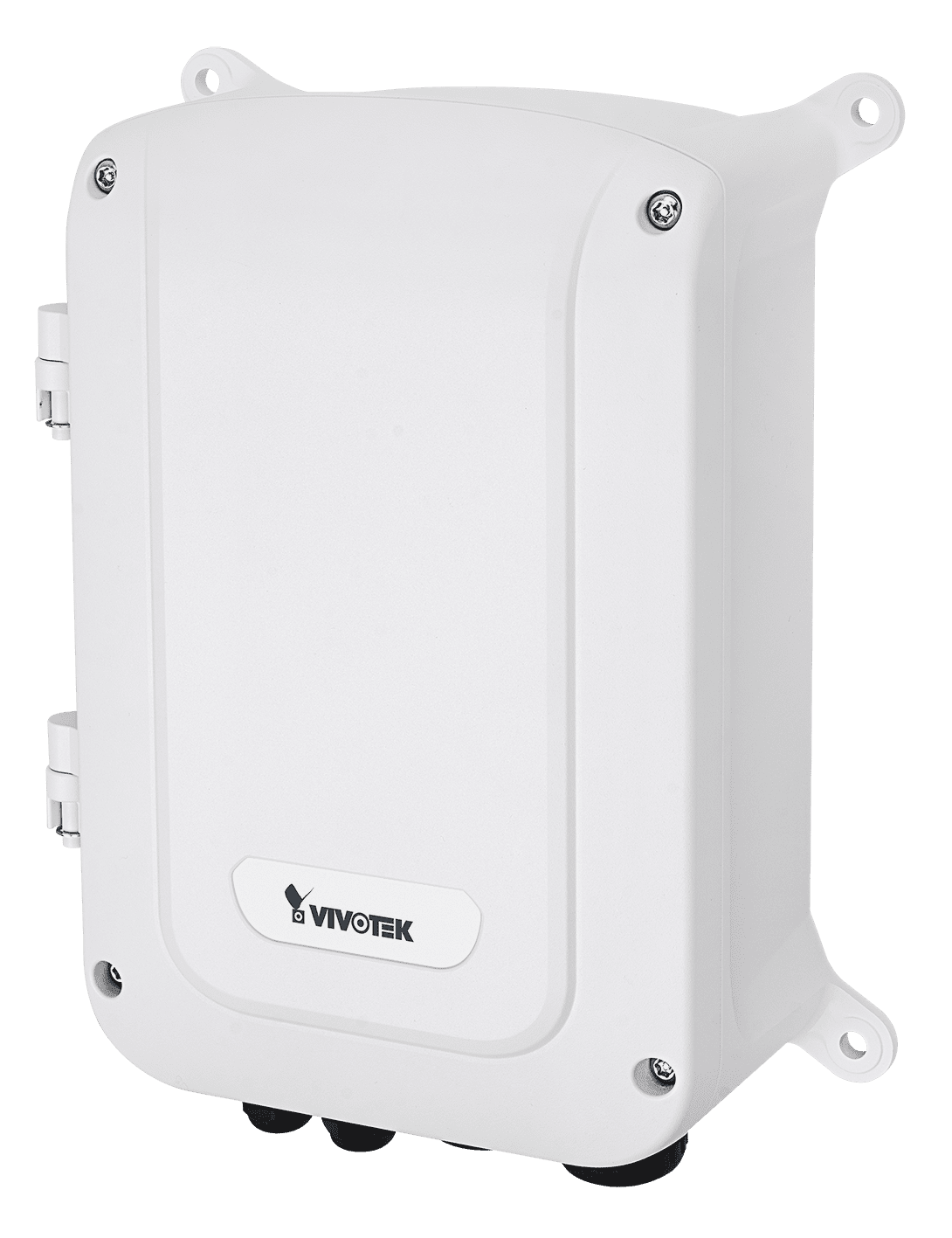

VIVOTEK’s outdoor FE unmanaged PoE switch is a hardengrade IP67/IK10 unit that is equipped with a DIP switch to provide ST STandard and EX EXtend operation modes. The outdoor FE unmanaged PoE switch is specially designed for outdoor IP Surveillance application. Besides standard 802.3af/at PoE functions in ST mode, the EX mode also transmits data & power on one single cable up to 200 meters at 10 Mbps via specific EX PoE ports for long reach PoE IP cameras. VIVOTEK’s outdoor FE unmanaged PoE switch also features adding an additional 20% range of input voltage tolerance (280VAC 4hr, 300VAC 1min),lightning surge protection on AC power & PoE surge protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes. These unique features help to reduce the costs of replacing damaged units.
VIVOTEK’s outdoor FE unmanaged PoE switches have two sub models consisting of 5-port AW-FET-053C-120 and 10-port AWFGT-103C-250 with a range of power budgets from 120W to 240W for outdoor IP surveillance applications.
Features:
- All-in-One device with easy installation
- Waterproof IP67, Vandal Proof IK10 compliant
- 15.4W/802.3af & 30W/802.3at compliant
- 12KV PoE surge protection each port
- 10KV/40KV AC surge protection
- Extra 20% range of input voltage tolerance (280VAC 4Hr, 300VAC 1min)
- Circuit protection prevents power interference between ports
- Detects PoE PD (power device) automatically
- ST mode reaches PoE camera up to 100M @ 100Mbps via any PoE port
- EX mode reaches 802.3at camera up to 200M @ 10Mbps via EX PoE ports
| Model | AW-FGT-103C-250 |
| Short Highlight | 8xFE PoE + 2xGE Combo |
| Networking Specfications | |
| 10/100 Mbps RJ45 PoE Port | 8 |
| 10/100 Mbps RJ45 Port | - |
| Gigabit RJ45/SFP Combo Ports | 2 |
| EX Mode PoE (200M@10Mbps)* | 2 |
| Ethernet Performance | |
| Switching Bandwidth | 5.6 Gbps |
| Mac Table | 4 K |
| Jumbo Frame | 1536 Bytes |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Power Specifications | |
| Power Input Voltage | 100VAC ~ 240VAC |
| Max. PoE Output Power /Per Port | Per Port 54VDC, Max. 30W |
| Total PoE Power Budget | 240W |
| IEEE 802.3af/at | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE PD Auto Detection | Supported |
| Surge Protection/Each PoE port | 12 KV |
| Surge Protection for AC Power | 40 KV |
| General | |
| Waterproof Rating | IP67 |
| Vandal Proof | IK10 |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature | -40°C~ 85°C (-40°F~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| Dimensions | 255.2 (W) x 199.9 (H) x 90 (D) mm 315.4 (W) x 245.8 (H) x 118 (D) mm |
| Weight | 3.2 KG 4.3 KG |
| Connectors | M25 x 2, M16 x 4, M25 x 2 |
| Warranty | 24 months |
| Certifications | |
| EMC | CE, FCC, VCCI, C-Tick Class A |
| Safety | EN60950-1, IEC60950-1 |
Technical Specifications
| Model | AW-FGT-103C-250 |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Surge | ITU-T K.21, IEC-61643-11 |
| Accessories | |
| Optional Accessories | Industrial SFP Transceiver: SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C |
