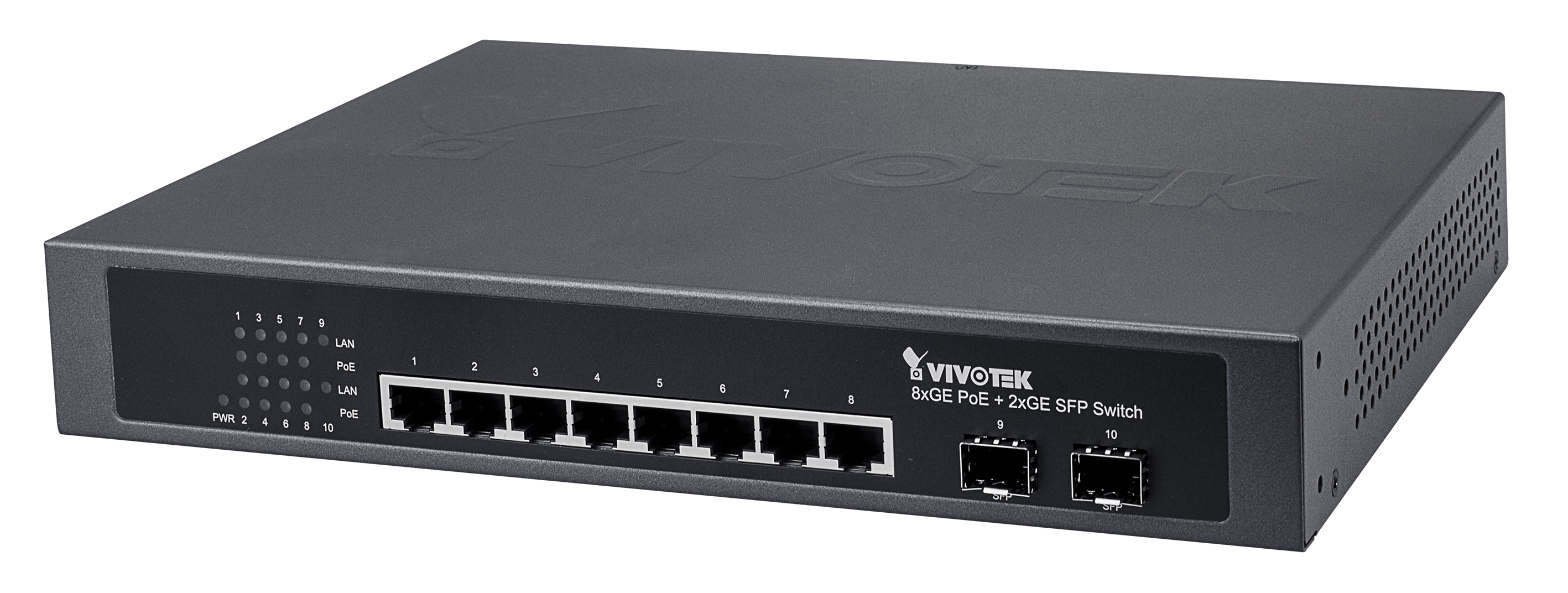

8xGE PoE + 2xGE SFP Switch.
Features:
IP Camera Compatibility:
- Video Resolution: Megapixel/D1/VGA
- Video Compression: MJPEG/MPEG-4/H.264/H.265
- Compatible Cameras: VIVOTEK Network Cameras
- Ethernet: Fast Ethernet (RJ45) 8
- Gigabit Ethernet (SFP) 2
- Standards: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX,(Fast Ethernet), IEEE 802.3x Flow
- Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus.
PoE Function:
- Number of PoE Out Ports 4
- PoE Power Output 56VDC/30W
- Total PoE Power Budget 115W
- 802.3at/af Standard Compatible Yes
- Over Current Protection Supported
- Circuit Shorting Protection Supported
- Power Pin Assignment 1/2(+), 3/6(-)
- PoE PD Auto Detection Yes
General:
- LED Indicators Power, LAN ports x10, PoE ports x8
- Power Input 100~240VAC / 50~60Hz
- Power Consumption: 120W
- Dimensions 280 (L) x 214 (W) x 44 (H) mm
- Weight 1.19 kg
- Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
- Humidity
- Operating: 10~90% (Noncondensing)
- Storage: 10~90% (Noncondensing)
- Safety Certifications CE, C-Tick, FCC, LVD, VCCI
| Model | AW-GET-100A-120 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Ethernet | |
| Gigabit Ethernet (RJ45) | 8 |
| Gigabit Ethernet (SFP) | 2 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3x Flow Control (Full-Duplex Flow Control) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Ethernet Performance | |
| MAC Address | 8K |
| Buffer Memory | 128 KB |
| Transmission Method | Store and Forward |
| Backplane | 20 Gbps |
| Jumbo Frame | 9K |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Filtering/Forwarding Rates | |
| 10Mbps | 14,880 pps |
| 100Mbps | 148,000 pps |
| 1000Mbps | 1,488,000 pps |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| 1000Base T | Cat. 5e, 6, 7 UTP/STP * It is highly recommended to use standard Cat. 5e/6/7 cables which are compliant with the 3P/ETL standard. |
| PoE Function | |
| Number of PoE Out Ports | 8 |
| PoE Output Power | Per Port 56VDC, Max. 30W |
| Total PoE Power Budget | 115W |
| 802.3at/af Standard Compatible | Yes |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Yes |
| General | |
| LED Indicators | Power, LANx10, PoEx8 |
| Power Input | 100~240V AC / 50~60Hz |
| Power Consumption | 120W |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Dimensions | 280 (L) x 214 (W) x 44 (H) mm |
| Weight | 1.19 kg |
| Safety Certifications | CE, C-Tick, FCC, LVD, VCCI |
| Warranty | 24 months |
| Accessories | |
| Included Accessories | Power cord, QIG, 19" rack mount kit |
| Optional Accessories | SFP Transceiver: SFP-1000-MM85-X5: MMF, 0.5 km, 0°C ~ 70°C SFP-1000-MM13-02: MMF, 2 km, 0°C ~ 70°C SFP-1000-SM13-10: SMF, 10 km, 0°C ~ 70°C SFP-1000-SM13-40: SMF, 40 km, 0°C ~ 70°C |
