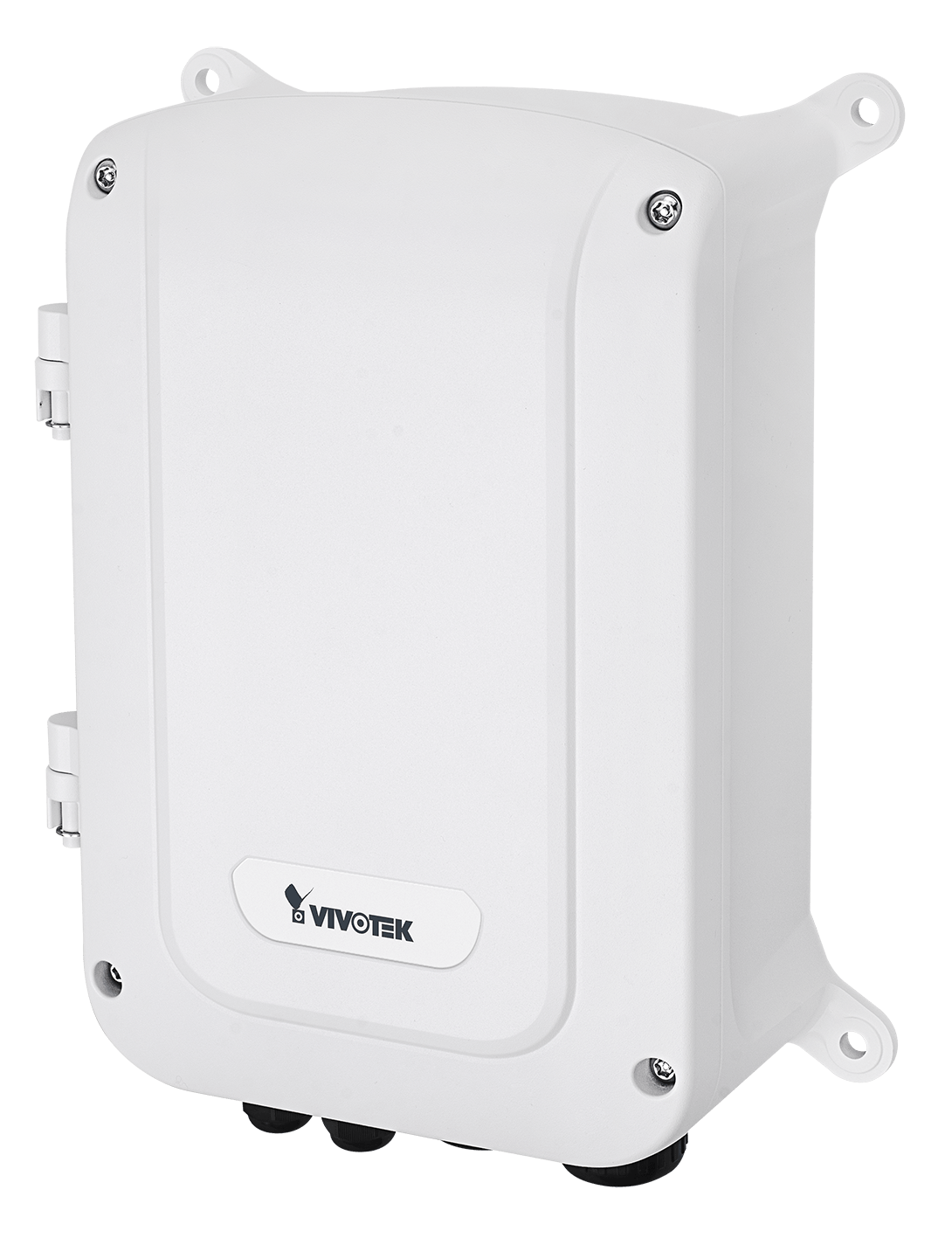

VIVOTEK's outdoor VivoCam L2+ series is the Layer 2 plus managed PoE switch with IP surveillance management functions and it's outdoor ready with waterproof IP67, Vandal proof IK10 and surge protection each port up to 6KV. This switch is not only a standard Layer 2 plus managed PoE switch, but also able to set up and configure VIVOTEK IP cameras, Video servers and allows users to find all VIVOTEK devices and deploy a surveillance network system automatically.
The Outdoor VivoCam L2+ series, also features Graphic View, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also import and export their VIVOTEK IP camera/Video servers configuration files, and batch VIVOTEK cameras firmware upgrade through the VivoCam L2+ Managed PoE switch Web UI. With all of these features and more, the outdoor industrial VivoCam L2+ series, is the best outdoor PoE solution to install and manage VIVOTEK outdoor surveillance devices at outdoor environment.
Features:
- Waterproof IP67
- IK10 Impact Rated Cast Aluminum Housing
- Built-in 6KV Surge Protection for Each PoE Port
Managing IP Surveillance:
- Auto Generated Surveillance Topology View
- Easy Tag VLAN Configuration In Topology View
- Smart Device-Management In Topology View
- PoE On/Off Control In Topology View
- Display IP Camera Live Stream in Topology View, Floor View
- and Google Map View
Managed Layer 2 Plus PoE Switch:
- Supports DHCP Server
- Supports IPv4/IPv6 L3 Static Route
- Supports IEEE802.1Q VLAN(up to 4096), Dobule Tag (Q-in-Q)
- Supports 802.1d (STP), 802.1w (RSTP) and 802.1s (MSTP)
- Supports LACP and Static Link Aggregation
- Built-in 40KV Surge Protection for AC Power
- Operating Temperature from -40°C ~ 65°C
- Batch Camera/Video Server F/W Upgrade
- Batch Camera Configuration-File Import & Export
- Batch Camera Network/Login Configuration
- Supports SNMP v1/v2c/v3 for Management
- Supports HTTPs/SSL/SSHv1&v2 for Secured Connection
- Supports Dual Image for Switch Firmware Backup
| Model | AW-GEU-086A-240 |
| Product Description | Outdoor VivoCam L2+ Managed PoE Switch 4xGE UPoE + 2xGE UTP + 2xGE SFP + 1xRJ45 Console |
| Managing IP Surveillance Functions | |
| Management | |
| Auto Search VIVOTEK Device | up to 256 pcs |
| Surveillance Device Management List | V |
| DHCP Server Function | V |
| VIVOTEK Device Account/Password Setting | V |
| VIVOTEK Device Static IP Setting | V |
| VIVOTEK Device Grouping Setting for VLAN | V |
| VIVOTEK Device Name Edit | V |
| VIVOTEK Camera/Video Server Reboot/Restore Default | V |
| VIVOTEK Device Re-direct Link | V |
| VIVOTEK Device On/Off Line Status | V |
| Graphic View | |
| Topology View | V |
| Floor View | V |
| Google Map View | V |
| Maintenance | |
| VIVOTEK Camera/Video Server Batch SW Upgrade | V |
| VIVOTEK Camera/Video Server Configuration File Export/Import | V |
| VIVOTEK Cameras/Video Server Configuration File Management | V |
| Floor Image Management | V |
| Export Surveillance Management Device List | V |
| Security | V |
| Trouble Shooting | V |
| Traffic Monitoring | V |
| Managed Layer 2+ PoE Switch Functions | |
| Port Configuration | |
| 10M/100M/1G RJ45 PoE Port | 4 /Per Port 60W UPoE |
| 10M/100M/1G RJ45 Port | 2 |
| 1G SFP Slot | 2 |
| RJ45 Console Port | 1 |
| HW Performance | |
| Switching Bandwidth | 16 Gbps |
| Forwarding Capacity | 11.904 Mpps |
| MAC Address | 8K |
| Jumbo Frames | 9600 Bytes |
| Layer 2+ Features | |
| Spanning Tree | |
| IEEE802.1D (STP) | V |
| IEEE802.1w (RSTP) | V |
| IEEE802.1s (MSTP) | V |
| VLAN | |
| 802.1Q VLAN | 4096 VLAN IDs |
| SVL/ IVL | V |
| Private VLAN | V |
| Guest VLAN | V |
| Q-in-Q (Double Tag) | V |
| 802.1v Protocol VLAN | V |
| MAC-based VLAN | V |
| IP Subnet-based VLAN | V |
| Trunking | |
| IEEE 802.3ad LACP | Up to 4 ports in a group, max. up to 6 groups |
| Static Trunk | Up to 4 ports in a group, max. up to 6 groups |
| IGMP Snooping (v1/v2/v3) | V |
| Loop Detection | V |
| L3 Features | |
| IP Host Table | V |
| IPv4/v6 Static Routing | V |
| Static ARP | V |
| DHCP Server | V |
| QoS Features | |
| Hardware Queues | 8 |
| Classification | |
| Port Based | V |
| 802.1p VLAN priority based | V |
| IPv4/IPv6 precedence / DSCP based | V |
| Differentiated Services (DiffServ) | V |
| Classification and Re-marking ACLs | V |
| Rate Limiting | |
| Ingress | V |
| Egress | V |
| Per Port | V |
| Priority Queue Scheduling | |
| WRR | V |
| Strict Priority | V |
| IPv4 QoS (QCEs) | V |
| IPv6 QoS (QCEs) | V |
| Security | |
| Port Security (MAC-based) | V |
| IEEE802.1x | V |
| ACLs | |
| Source and Destination MAC, VLAN ID or IP Address, Protocol, Port | |
| (DSCP) / IP Precedence | V |
| TCP/ UDP source and destination ports | V |
| 802.1p priority | V |
| ICMP Packets | V |
| IP Source Guard (IP-MAC-Port Binding) | V |
| Storm Control | V |
| RADIUS Authentication (RFC2138) | V |
| DDoS Prevention | V |
| Layer 3 Isolation (Allow/Disallow Routing between IP Subnets) | V |
| HTTPs and SSL (Secured Web) | V |
| SSH v1.5/v2.0 (Secured Telnet Session) | V |
| BPDU Guard | V |
| STP Root Guard | V |
| DHCP Snooping | V |
| Management | |
| SNMP (v1, v2c, v3) | V |
| RMON (1, 2, 3 & 9 groups) | V |
| Software Upgrade | V |
| Configuration Export/Import | V |
| DHCP | |
| Client | V |
| Option 66 | V |
| Option 67 | V |
| Event/Error Log | |
| Syslog | V |
| Management Access Filtering | |
| SNMP | V |
| Web | V |
| Telnet | V |
| Port Mirroring | V |
| MLD Snooping | V |
| LLDP (IEEE802.1AB) | V |
| LLDP-MED | V |
| CDP | V |
| NTP/ SNTP (RFC2030) | V |
| IPv6 Support | |
| Dual IPv6/IPv4 Stack | V |
| IPv6 Web/SSL | V |
| IPv6 SNTP (Simple Network Time Protocol) | V |
| IPv6 Telnet Server/SSH | V |
| IPv6 Ping Trace Route | V |
| IPv6 TFTP | V |
| IPv6 RADIUS | V |
| IPv6 Syslog | V |
| IPv6 DNS Client | V |
| IPv6 Protocol-based VLANs | V |
| IPv6 SNMP | V |
| PoE Management | |
| ON/OFF Config | V |
| Alive Checking for PD | V |
| Power Delay | V |
| 7/24 On/Off Scheduling | V |
| PoE Function | V |
| Number of PoE Out Ports | 4 |
| Max. PoE Output Power / Per Port | 60W |
| 802.3at/af Standard Compatible | V |
| Over Current Protection | V |
| Circuit Shorting Protection | V |
| Total PoE Power Budget | 240W |
| Power Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE PD Auto Detection | V |
| Environmental Specifications | |
| Waterproof IP Rating | IP67 |
| Vandal Proof | IK10 |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | 10 ~ 90% RH |
| Storage Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Humidity | 10 ~ 90% RH |
| Mechanical Specifications | |
| Dimensions | 315.4(W) x 245.8(H) x 118(D) mm |
| Weight | 4.52 kg |
| Power Specifications | |
| Input Voltage | 100VAC ~ 240VAC |
| Output Voltage Range /Per PoE Port | 54VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output UPoE (Max. 60W) output |
| Surge Protection/Each PoE Port | 6KV |
| Surge Protection for AC Power | 40KV |
| Certifications | |
| Certifications | CE, FCC, LVD, VCCI, C-Tick |
| Optional Accessories | |
| SFP Transceiver | SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C SFP-1000-CPTX-X1I: -40°C ~ 85°C |
