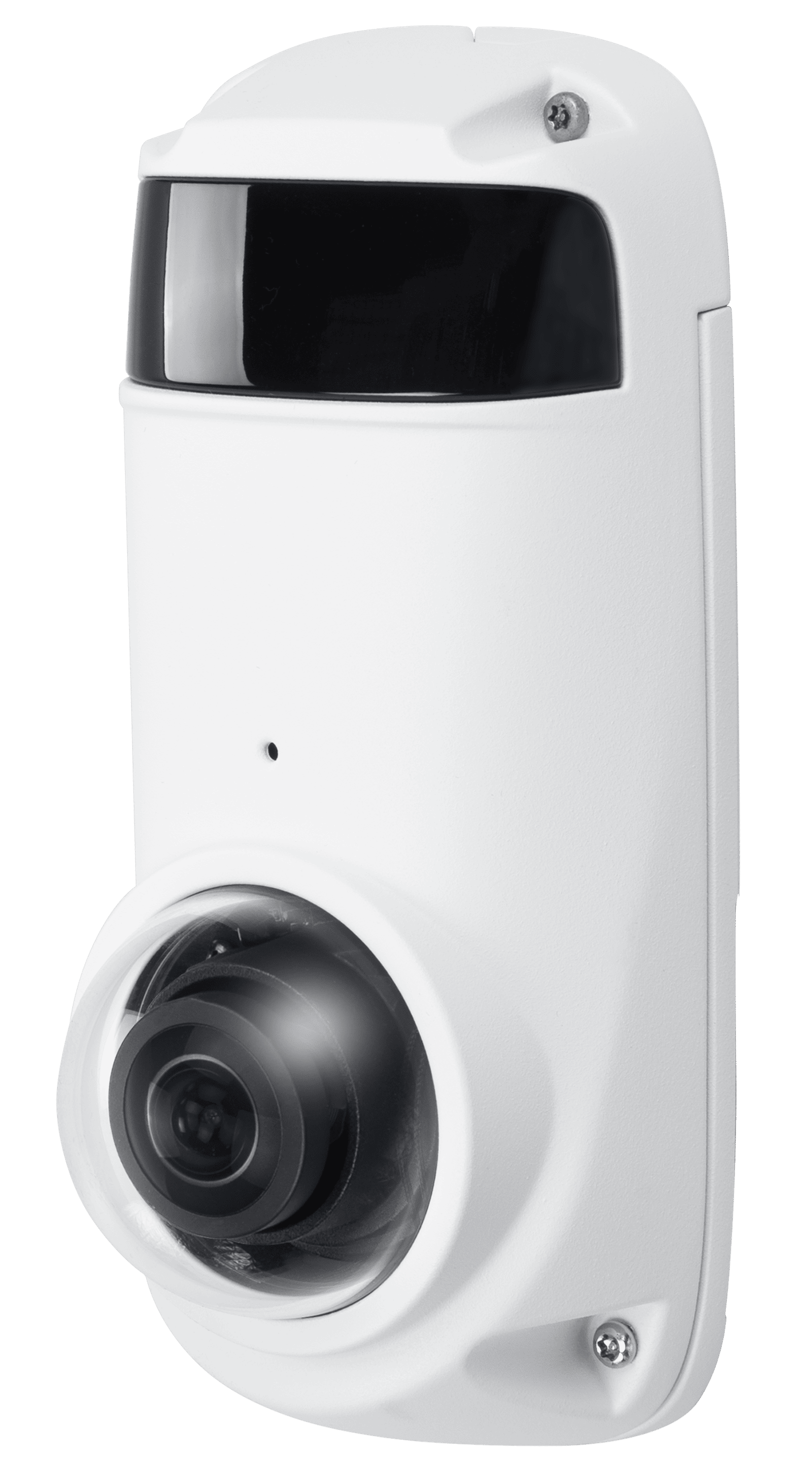

Vivotek - CC831-HV - Vortex Premium Cloud 5MP Outdoor AI IR 180° Panoramic Camera
Product Overview
The VIVOTEK CC831-HV is a high-resolution 5MP panoramic camera featuring a 180° horizontal field of view for comprehensive area coverage without blind spots. Built for rugged environments, it is protected by an IP66/IK10-rated metal housing and includes WDR Pro and 20-meter IR night vision for clear imaging in any lighting. This AI-powered unit comes with a pre-installed 256GB industrial SD card and supports advanced analytics like intrusion detection and facial recognition.
Key Configuration
- • High-Resolution Imaging: Equipped with a 1/2.8" progressive CMOS sensor, the camera delivers sharp 5MP (2560×1920) video at 15 fps.
- • Panoramic Coverage: The 1.47mm fixed lens provides a comprehensive 180° horizontal field of view to eliminate blind spots.
- • Enhanced Night Vision: Four Smart IR LEDs provide up to 20m of visibility, maintaining clear images in total darkness (0 lux).
- • Ready-to-Use Storage: Includes a pre-installed 256GB industrial-grade SD card for reliable, high-capacity edge recording.
- • Efficient Powering: Operates via PoE (802.3af) with a low maximum power draw of 10.26W, even with IR fully engaged.
Key Features
The features include WDR Pro for high-contrast lighting and a built-in microphone with a 5-meter range for clear one-way audio. It is built with a robust cybersecurity suite, including secure boot and video encryption, and offers a ±20° manual tilt for precise aiming. This NDAA/TAA-compliant camera utilizes AI analytics for intrusion and loitering detection, with optional xPro licensing for advanced facial and license plate recognition.
Technical Context
Supporting a wide range of protocols from WebRTC to HTTPS/TLS 1.2, this camera allows up to six concurrent clients for flexible live monitoring and playback. It is globally certified UL, CE, FCC and engineered for reliability in temperatures as low as -30°C. The unit maintains peak performance in high-humidity environments up to 98% RH, ensuring stable network communication across various IT infrastructures.
Installation Notes
Encased in a compact metal housing, the camera is rated IP66 and IK10 for superior resistance against weather and physical impact. The package includes both standard and tilt mounting brackets to simplify the physical setup on-site. For optimal performance, the use of CAT5e or CAT6 cabling is required, and the hardware is backed by an industry-leading warranty of up to 10 years.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | HD: 2560 x 1920 SD: 1280 x 960 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.47 mm |
| Aperture | F2.7 |
| Iris | Fixed Iris |
| Field of View | 180° (Horizontal) 120° (Vertical) 180° (Diagonal) |
| Camera Movement | Tilt: ±20° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in IR illuminators up to 20 meters with Smart IR, IR LED*4 |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.08 lux @ F2.7 (Color) 0.005 lux @ F2.7 (B/W) 0 lux with IR Illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | One-way Audio |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Power and Network | |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 10.26W / 6.96W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 55°C (14°F ~ 131°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR on) -30°C ~ 60°C (-22°F ~ 140°F) (IR off) |
| Humidity | 98% RH (non-condensing) |
| Certifications | EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015 +A11:2020, BS EN 55035:2017 +A11:2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7 Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471) Environment: IK10 (IEC 60529), IP66 (IEC 60529) IA: BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, mounting bracket, tilt bracket, screw pack |
| Mechanical | |
| Weight | 492 g |
| Dimensions | 160 x 72 x 60 mm |
| Body | Metal |
| AI Analytics | |
| Audio Detection | Yes |
| Tampering Detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with a license | Facial recognition, License plate recognition |
