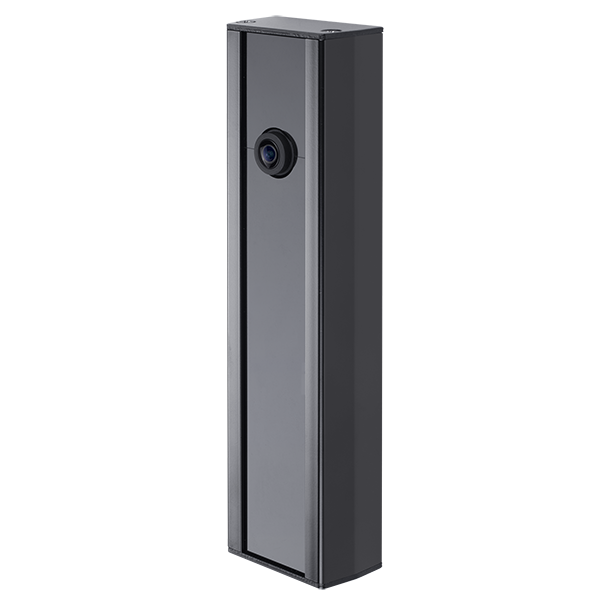

2MP Compact Panoramic Network Camera
Features:
- 30 fps @ 1920x1080
- Smart Stream III: Maximize Bandwidth Efficiency
- WDR Pro 120 dB
- Digital Input, Digital Output
- Trend Micro IoT Security
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Camera | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.66 mm |
| Aperture | F1.95 |
| Iris Type | Fixed Iris |
| Field of View | 180° (Horizontal) 100° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | No |
| Removable IR-cut lter | No |
| Minimum Illumination | 0.03 lux@F1.95 |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 con gurable pro les) |
| S/N Ratio | 66 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
| Image Settings | General settings video title and time stamp overlay, video orientation ( ip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled pro le settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Pro le G, S, T supported, speci cation available at www.onvif.org |
| Solution Integration | |
| VADP Package | |
| 2 | Trend Micro IoT Security (1-year free trial) |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording noti cation, SD card life expectancy, system boot, digital input |
| Event Action | Event noti cation via email, HTTP, FTP, NAS server, SD card, push noti cation, digital output File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mpbs Network/PoE connection DI DO (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | max: 5W |
| Dimensions | 28 x 50 x 184 mm |
| Weight | 199g |
| Certi cations | EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI- CISPR 32 Class B), ICES-003 Issue 7 Safety: UL (UL 62368-1:2nd), CB (IEC/EN 62368-1:2nd), UKCA (BS EN IEC 62368-1: 2014+A11:2017) IA: BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: 0°C ~ 45°C (32°F ~113°F) Working Temperature: -10°C ~ 45°C (14°F ~113°F) |
| Humidity | 90% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screw pack |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | 30.8(m) / 100.9(ft) |
| Observation (63PPM/ 19PPF) | 12.2(m) / 40.1(ft) |
| Recognition (125PPM/ 38PPF) | 5.2(m) / 17.1(ft) |
| Identi cation (250PPM/ 76PPF) | 2.6(m) / 8.5(ft) |
