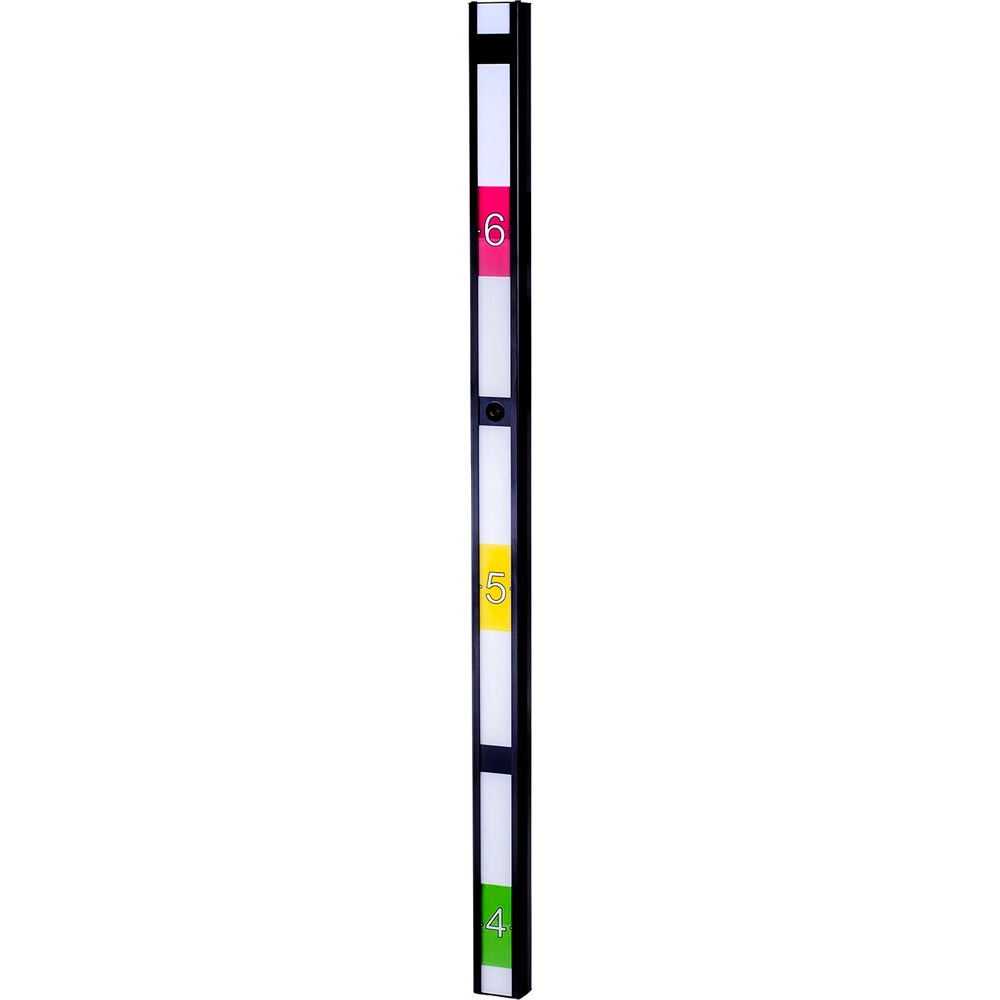

Vivotek - CC9160-H(HS)-B - 2MP 180° Horizontal Panoramic Height Strip Camera (Black)
Part number:
CC9160-H(HS)-B
Price:
VIVOTEK's CC9160-H(HS) is a 2MP height-strip network camera equipped with a 180 degree wide-angle lens, delivering clear images for reliable facial recognition. An ideal installation height of 170cm (5.5 ft) allows the CC9160-H(HS) to capture clear facial images at eye view, even when the subject is wearing a hat or covered with a hood. In addition, the plug and play design makes the CC9160-H(HS) installation simple and efficient. Combining a low-profile design with high-end features, the CC9160-H(HS) is ideal for discreet indoor applications, such as retail, banking, restaurants, and small businesses.
Features:
- 2-Megapixel CMOS Sensor
- 180° Horizontal Panoramic View
- Height Strip Design for Eye-level Video Surveillance
- 30 fps @ 1920x1080
- Smart Stream III to Optimize Bandwidth Efficiency
- WDR Pro 120 dB
- Digital Input, Digital Output
- Trend Micro IoT Security
| System Information | |
| Model | CC9160-H(HS) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.66 mm |
| Aperture | F1.95 |
| Iris Type | Fixed-iris |
| Field of View | 180° (Horizontal) 100° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.03 lux @ F1.95 (Color) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 (WDR Pro on/off) |
| Maximum Streams | 3 video streams (up to 8 configurable profiles) |
| S/N Ratio | 66.2 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Trend Micro IoT Security (1-year free trial), VIVOCloud, Stratocast |
| Alarm and Event | |
| Event Trigger | Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection Digital input Digital output |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5 W |
| Dimensions | 28 (D) x 50 (W) x 868 (H) mm |
| Weight | 94 g |
| Certifications | EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), UKCA (BS EN IEC 62368-1: 2020 +A11: 2020); IA: BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | Starting Temperature: 0°C ~ 45°C (32°F ~ 113°F) Working Temperature: -10°C ~ 45°C (14°F ~ 113°F) |
| Humidity | 90% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, mounting bracket, screw pack |
