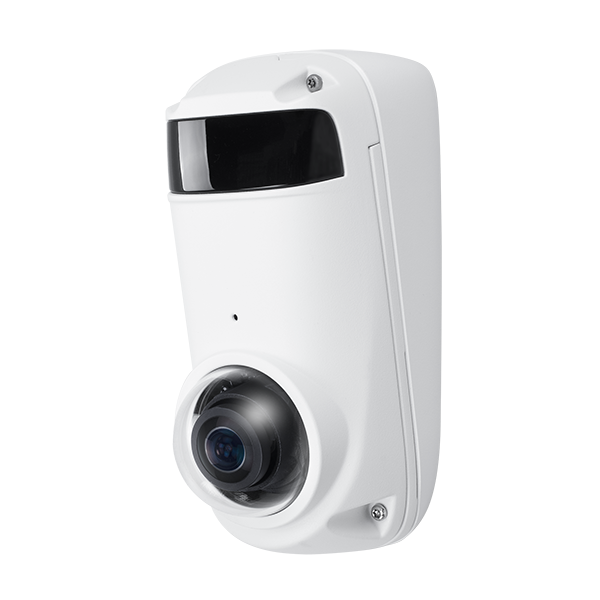

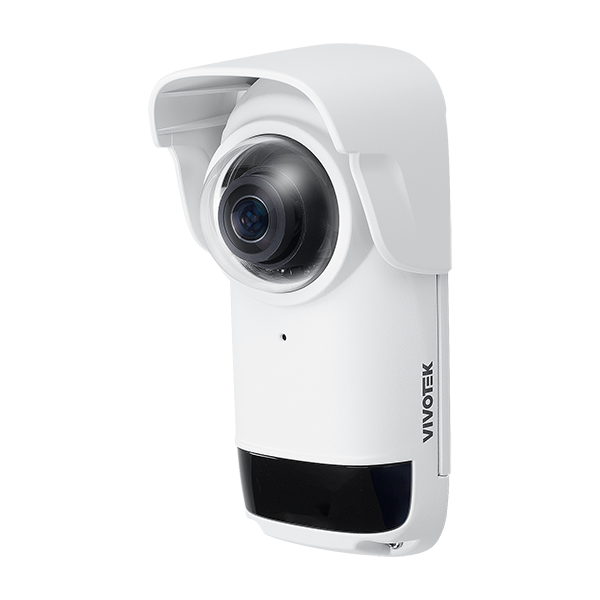

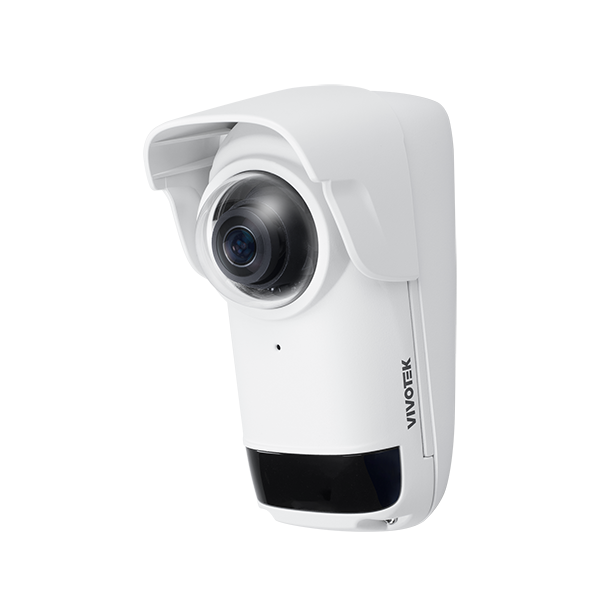

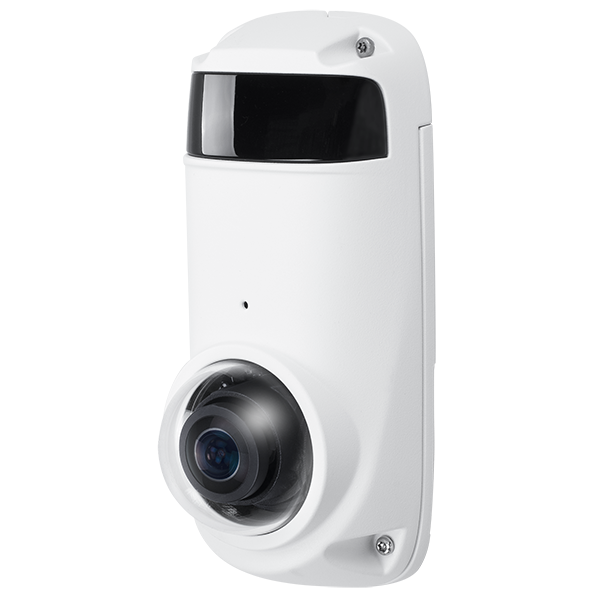

5MP IR Compact Panoramic AI Camera
Enhanced Coverage with included Tilt Bracket
The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15~20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.
Uncover Video Insights with Vision Object Analytics
The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.
180-degree View with Clear Evidence
Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review. This empowers you to see everything, from every angle.
See Clearly, Night and Day
Darkness shouldn't compromise your security. The compact panoramic camera boasts a cutting-edge Smart IR (Infrared) technology. With an effective night vision range of up to 20 meters, you can rest assured that your property is under constant surveillance, day or night.
Features:
- WDR Pro for Unparalleled Visibility
- Weather-proof IP67 & Vandal-proof IK10+ rated
- ±20° Tilt Lens
- Built-in Microphone
- 3D Noise Reduction for Low-light Conditions
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.47 mm |
| Aperture | F2.7 |
| Iris Type | Fixed iris |
| Field of View | 180° (Horizontal) 120° (Vertical) 180°(Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators up to 20 meters with Smart IR , IR LED*4 |
| Minimum Illumination | 0.08 lux @ F2.7 (Color) 0.005lux @ F2.7 (B/W) 0 lux with IR Illumination on |
| Tilt Range | ±20° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB Capacity Supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 62 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control, Smart Stream III |
| Image Settings | General settings video settings, video orientation (flip, mirror, rotation), day/night settings, smart image Overlay settings Illuminators illuminators, anti-overexposure Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto) Exposure exposure strategy (measurement window, metering mode) exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR Privacy mask Pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| Solution Integration | |
| VADP Package | Trend Micro IoT Security (3-year free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration |
| Event Action | Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 10.26W/6.96W (IR on/off) |
| Dimensions | 160 x 72 x 60 mm |
| Weight | 492 g |
| Certifications | EMC CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7 Safety UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471) Environment IK10 (IEC 60529), IP66 (IEC 60529) IA BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -10°C ~ 55°C (14°F~ 131°F) Working Temperature: -30°C ~ 55°C (-22°F~ 131°F)(IR on) -30°C ~ 60°C (-22°F~ 140°F)(IR off) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
