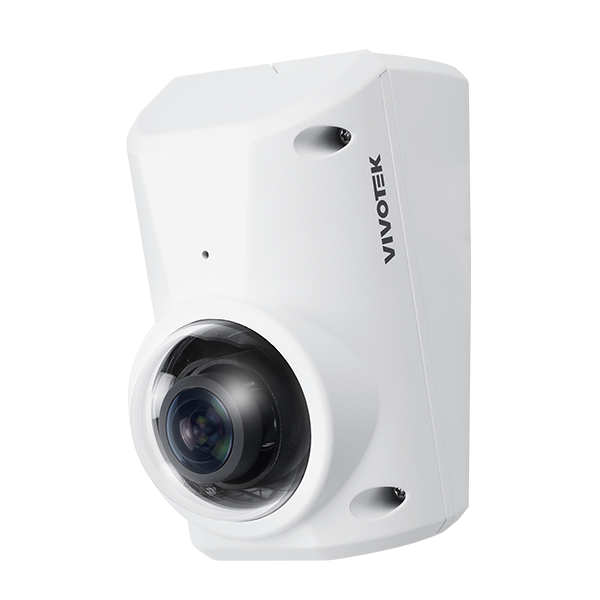

Vivotek - CC9390-HV - 8MP Panoramic Indoor Mullion AI IP Camera NDAA TAA

Part number:
CC9390-HV
Price:

Product Overview

The VIVOTEK CC9390-HV is an 8MP compact panoramic AI network camera designed to provide a full 180° view with clear near-field imaging and minimal blind spots. Its fixed 2.53mm lens, WDR Pro, AI-powered object analytics, rugged IP66 and IK10 housing, and flexible tilt adjustment make it suitable for outdoor entrances, corridors, retail areas, and perimeter monitoring.



Key Configuration

Model: CC9390-HV | Product type: 8MP compact panoramic AI camera | Image sensor: 1/1.8-inch progressive CMOS | Resolution: 3840 × 2160 | Lens: 2.53mm fixed focal length | Field of view: 180° horizontal, 103° vertical, 180° diagonal | Video codecs: H.265, H.264, MJPEG | Streams: Up to 3 | Protection: IP66, IK10



Key Features

  • · 8MP resolution delivers detailed 4K video at up to 30fps.
  • · 180° panoramic view provides broad horizontal coverage with reduced blind spots.
  • · 2.53mm fixed lens and 103° vertical field of view support near-field monitoring.
  • · WDR Pro improves image detail in scenes with strong backlighting and high contrast.
  • · AI technology identifies people and vehicles using attributes such as color, gender, and type.
  • · Smart VCA and Vision Object Analytics support intelligent event detection and investigation.
  • · ePTZ functionality provides up to 48× digital zoom for focused review of panoramic scenes.
  • · Supports H.265, H.264, and MJPEG compression with up to three video streams.
  • · MicroSD/SDHC/SDXC recording and NAS support provide flexible storage options.
  • · IP66 weather resistance and IK10 impact protection support demanding outdoor installations.



Technical Context

The CC9390-HV is designed for locations where a single panoramic camera can replace multiple conventional cameras for near-field coverage. Its AI analytics and object attributes help operators search and investigate people and vehicles across the complete 180° scene.



Installation Notes

Mount the camera on a suitable indoor or outdoor surface and adjust the lens angle within the supported ±20° tilt range. Connect the camera to the surveillance network, configure panoramic viewing and analytics zones, and verify image quality across the full 180° field of view before commissioning.

CC9390-HV Specifications
Product TypeVIVOTEK V-series compact panoramic AI camera
Resolution8MP
Focal Length2.53 mm
Field of View180° panoramic view
Wide Dynamic Range120 dB WDR Pro
IR IlluminatorsUp to 20 m
Impact ProtectionIK10
DesignAnti-ligature design
AI AnalyticsVision Object Analytics and Smart VCA
Analytics FunctionsIntrusion detection, unattended object, missing object, crowd detection, running detection, line crossing, face detection, smart motion detection, loitering, restricted zone, and parking detection
Included AccessoriesTilt bracket
Tilt AdjustmentUp to 20°
Supported PlatformsMilestone XProtect, Genetec Security Center, VIVOTEK VAST, VORTEX, and V-series embedded NVRs
Mobile ApplicationVORTEX app for iOS and Android
Name
Description
Size
Downloads
File
Datasheet
0.4mb
