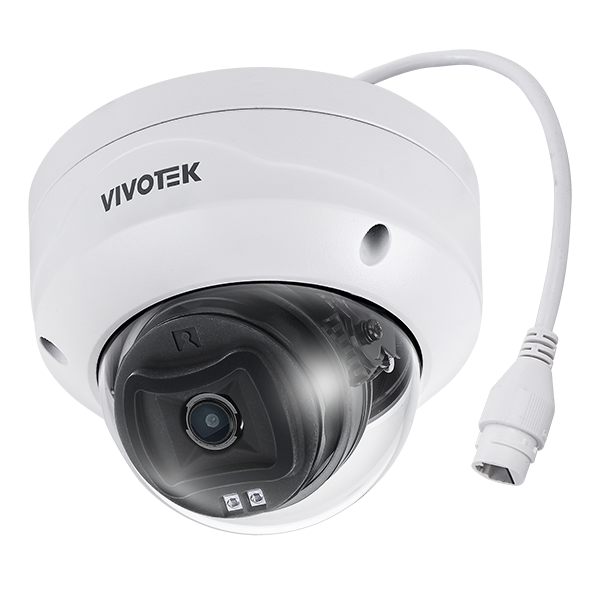

Vivotek - FD833-HV - Vortex Premium Cloud 5MP Outdoor AI IR Dome 2.8mm
Product Overview
The VIVOTEK FD833-HV is a high-performance 5MP fixed dome camera designed for clear, high-resolution monitoring at 2560×1920. It features WDR Pro technology and 30-meter IR illumination to ensure superior image quality in both high-contrast and low-light environments. Protected by an IP66/IK10-rated metal housing and equipped with a pre-installed 256GB industrial SD card, this camera offers a rugged, out-of-the-box solution for edge recording and advanced AI analytics.
Key Configuration
- • High-Resolution Sensor: Features a 1/2.8" progressive CMOS sensor delivering 5MP (2560×1920) resolution at 15 fps for detailed evidence capture.
- • Wide-Angle Lens: The 2.8mm fixed-focal lens provides a broad 103.4° horizontal field of view, ideal for monitoring expansive indoor or outdoor areas.
- • Long-Range Night Vision: Equipped with IR illuminators effective up to 30 meters, ensuring clear visibility in total darkness (0 lux).
- • Industrial Edge Storage: Includes a pre-installed 256GB industrial-grade SD card, offering high-capacity, reliable local recording out of the box.
- • Efficient PoE Power: Utilizes standard PoE (802.3af Class 3) with a low maximum power draw of 8.5W, simplifying installation and reducing energy costs.
Key Features
It utilizes WDR Pro to maintain image clarity in high-contrast lighting and features a highly adjustable 3-axis mechanism (350° pan, 70° tilt, 350° rotation) for precise field-of-view positioning. This NDAA/TAA-compliant dome integrates enterprise-grade cybersecurity, including secure boot and signed firmware, alongside a suite of AI analytics for intrusion and object detection. With an xPro license, the system expands to support specialized safety alerts like fall detection and PPE monitoring.
Technical Context
Engineered for secure network environments, the camera supports TLS 1.2 and WebRTC protocols while allowing up to six concurrent client connections for viewing and playback. It carries extensive global certifications, UL, CE, FCC, and is built to operate in extreme weather down to -30°C. Though it does not support audio detection, its robust hardware ensures stable performance in high-humidity conditions up to 90% RH.
Installation Notes
This metal dome measures Ø117.2 × 89.6 mm and weighs 550 g, providing a discreet yet IP66/IK10-rated vandal-resistant footprint. The package comes complete with an alignment sticker and cable gland to facilitate a clean, professional installation using standard CAT5e or CAT6 cabling. Depending on the license type, the hardware is eligible for an industry-leading 10-year warranty.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960 HD: 2560 x 1920 |
| Lens Types | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Field of View | 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal) |
| Camera Movement | Pan: 350° Tilt: 70° Rotate: 350° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | 30 meters |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | — |
| Interface | — |
| Effective Range | — |
| Power and Network | |
| Power input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 8.5 W / 6.0 W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
| Certifications | EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1) Environment: IK10 (IEC 62262), IP66 (IEC 60529) BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 550g |
| Dimensions | Ø 117.2 x 89.6 mm |
| Body | Metal |
| AI Analytics | |
| Audio detection | No |
| Tampering detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with license | Personal protective equipment, Fall detection, Think alert, Facial recognition, License plate recognition |
