Vivotek - FD8366-V(2.8mm) - 2MP, 15M IR, IP66, IK10, NEMA 4X
Part number:
FD8366-V(2.8mm)
Price:

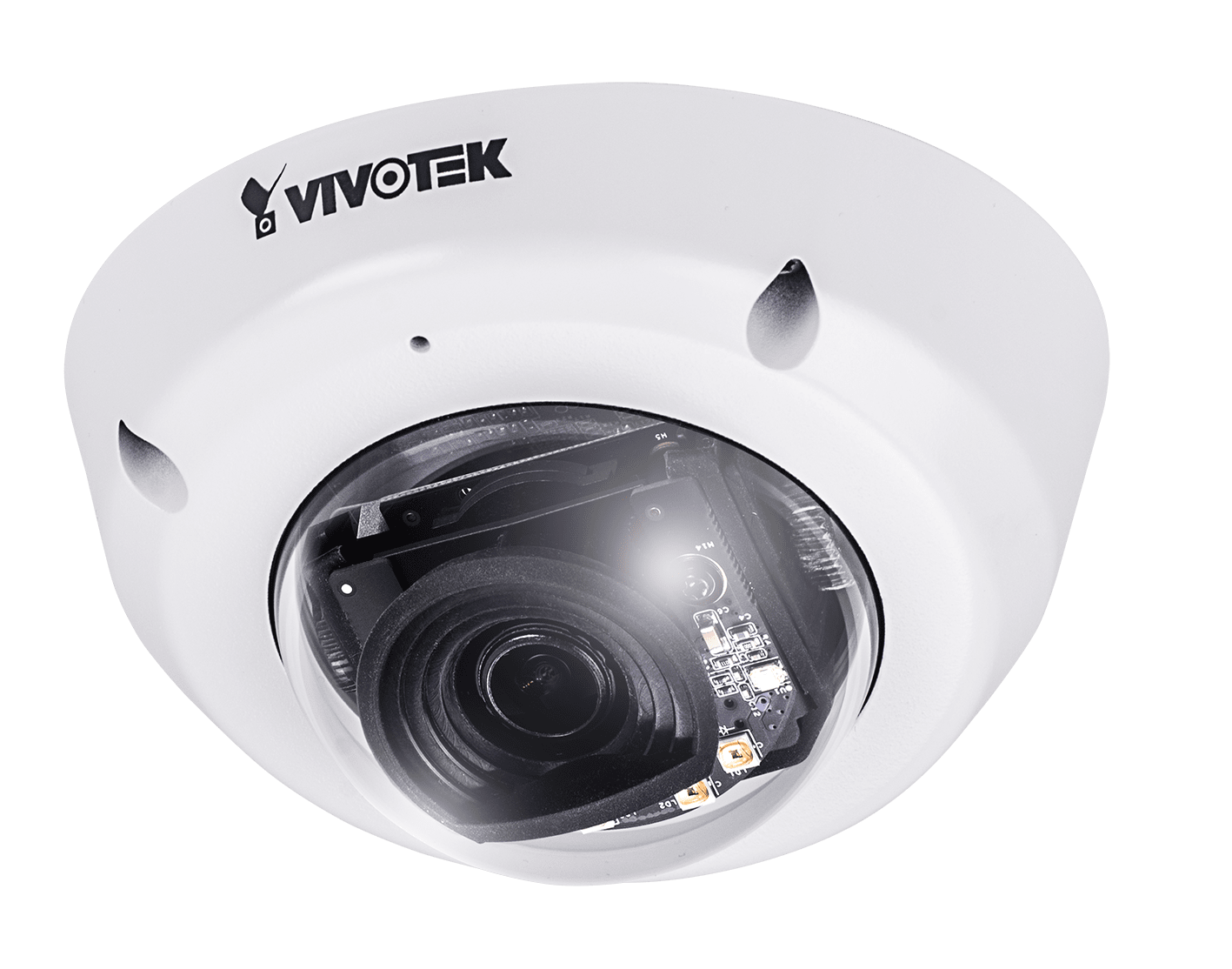

VIVOTEK’s FD8366-V is a compact 2-megapixel IR dome network camera equipped to provide 30 frames per second at H.264 compression. With IP66, IK10 and NEMA 4X-rated rugged design, the camera will withstand shocks, vibration, humidity, dust, and even extreme temperature fluctuations to maintain stable and reliable video no matter how harsh the environment.

Armed with built-in IR illumination, the FD8366-V delivers superior image quality for up to 15 meters in total darkness. This all-in-one camera meets a diverse array of needs for outdoor surveillance applications, from retail stores to health care facilities.

Employing VIVOTEK’s Smart Stream II technology, the FD8366-V can reduce both bandwidth and storage consumption by up to 50%* while maintaining high standards of image quality. Power over Ethernet (PoE) functionality means the camera can be operated and powered via a single Ethernet cable, allowing greater ease, and lower cost, of installation. Further, in order to facilitate on-board storage, data portability, and localized backup, the camera is equipped with a MicroSD/SDHC/SDXC card slot for local recording.



Features:

  • 30 fps @ 1920x1080
  • Built-in IR Illuminators up to 15 meters
  • Smart IR Technology to Avoid Overexposure
  • Smart Stream II to Optimize Bandwidth Efficiency
  • Weather-proof IP66-, Vandal-proof IK10- and NEMA 4X-rated Housing
  • Built-in 802.3af Compliant PoE
  • Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Trend Micro IoT Security
  • VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)

System Information

CPUMultimedia SoC (System-on-Chip)
Flash128MB
RAM256MB

Camera Features

Image Sensor1/2.9" Progressive CMOS
Max. Resolution1920x1080 (2MP)
Lens TypeFixed-focal
Focal LengthFD8366-V(2.8mm): f = 2.8 mm
ApertureFD8366-V(2.8mm): F1.8
Auto-irisFixed-iris
Field of ViewFD8366-V(2.8mm):
113° (Horizontal)
63° (Vertical)
136° (Diagonal)
Shutter Time1/5 sec. to 1/32,000 sec.
WDR TechnologyWDR Enhanced
Day/NightYes
Removable IR-cut FilterYes
IR IlluminatorsBuilt-in IR Illuminators up to 15 meters, IR LED*4
Minimum IlluminationFD8366-V(2.8mm):
0.16 Lux @ F1.8 (Color)
< 0.01 Lux @ F1.8 (B/W)
0 Lux with IR illumination on
Tilt Range0° ~ 80°
Pan/Tilt/Zoom FunctionalitiesePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board StorageSlot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Quick_Guide
3.9mb
File
Manual
16.7mb
