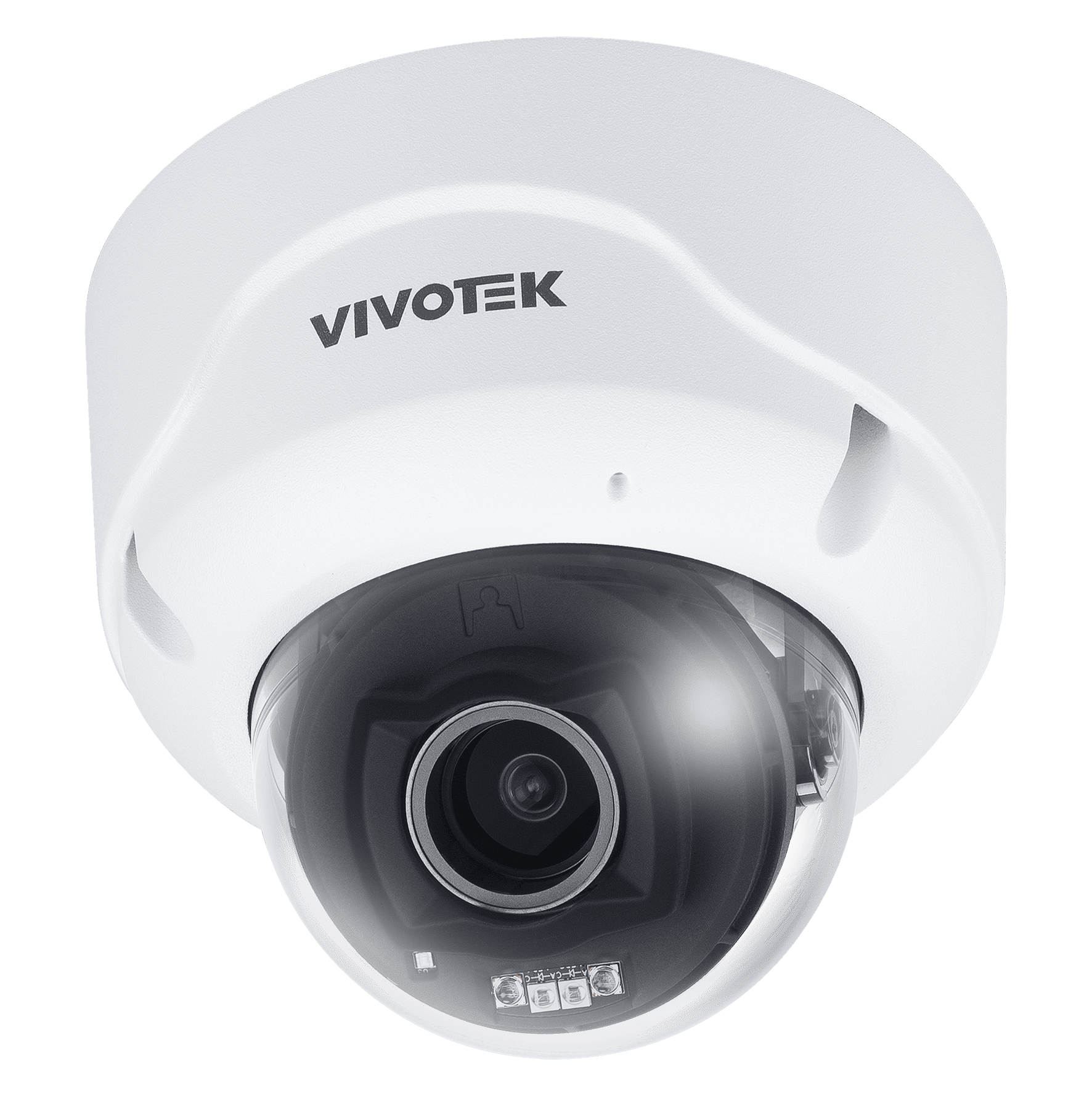

Vivotek - FD839-EHTV-V2-1Y - VORTEX Prem Cloud 5MP Outdoor AI Dome 2.8-12mm, 1yr lic
Part number:
FD839-EHTV-V2-1Y
Price:
- • Premium Series
- • 5MP
- • 2.8 ~ 12 mm
- • WDR Pro
- • IP66/IK10
- • FCC/CE/UL/NDAA/TAA
| Camera Features | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | HD: 2560 x 1920, SD: 1280 x 960 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal), 68.8° ~ 21.5° (Vertical), 129.6° ~ 35.9° (Diagonal) |
| Camera Movement | Pan: 350°, Tilt: 80°, Rotate: 350° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4 |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings | |
| Frame Rate | 15FPS |
| Video Streaming Settings | |
| HD Video | 2560 x 1920 @ 15fps, 1.2Mbps upload |
| SD Video | 1280 x 960 @ 15fps, 300Kbps upload |
| Standard Audio Settings | |
| Audio | Two-way audio (Full duplex)* * Requires AO-015 cable |
| Interface | Built-in microphone, Two-way audio connectivity by optional I/O & audio cable |
| Effective Range | 5 Meters |
| Power and Network | |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection, Audio line input*, Audio line output*, Digital input: 1*, Digital output: 1* * Requires AO-015 cable |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients (Live viewing for 6 clients, live viewing up to 4 clients and playback 2 clients) |
| Security | |
| Security Features | Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F), Working Temperature: -35°C ~ 60°C (-31°F ~ 140°F) (IR off), -35°C ~ 50°C (-31°F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | |
| EMC | CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A) IC (ICES-003 Issue 7, Class A) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471), UKCA (BS EN IEC 62368-1) |
| Environment | NEMA (NEMA 250 Type 4X), IK10 (IEC 62262), IP66 (IEC 60529) |
| IA | BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | |
| Warranty | 10 years |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, L-shaped wrench |
| Mechanical | |
| Weight | 990 g |
| Dimensions | ø 134 x 116 mm |
| Body | Metal |
| AI Analytics | |
| Audio Detection | Yes |
| Tampering Detection | Yes |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search |
| Object Analytics | Unattended object detection, Missing object detection |
