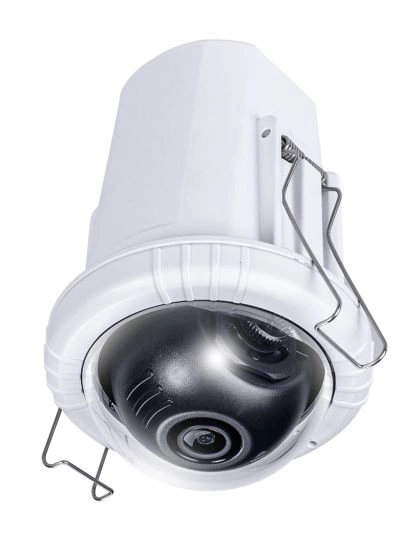

Vivotek - FD9186-HF2 - 5 Megapixel Recessed Network Dome Camera with 2.8mm Lens
Product Overview
The Vivotek FD9182‑HF2 is a 5MP recessed dome camera with a 1/2.7" CMOS sensor and a 2.8mm lens offering a 103° horizontal FOV. It features 120dB WDR Pro for high‑contrast scenes, SNV for low‑light clarity, and H.265 with Smart Stream III to save bandwidth. Delivering 20fps at 2560×1920, the camera comes in an IK10 vandal‑resistant housing with Trend Micro IoT Security.
Key Configuration
- • Resolution: 5MP (2560×1920) at 20fps
- • Lens: 2.8mm fixed, F2.0, H:103° / V:76° / D:134°
- • Min. illumination: 0.03 lux (color), <0.005 lux (B/W)
- • Power: PoE 802.3af Class 2; max 3.6W
- • Storage: MicroSD/SDHC/SDXC, Seamless Recording
- • Dimensions: Ø82 × 122 mm; weight: 353g
Key Features
The FD9182‑HF2 features WDR Pro with a 120dB dynamic range for clear images in high‑contrast scenes, alongside Supreme Night Visibility (SNV) for low‑light performance. Smart Stream III intelligently reduces bandwidth and storage usage while preserving critical detail, and ePTZ provides up to 48x digital zoom. The camera supports three simultaneous streams in H.265, H.264, or MJPEG formats.
Technical Context
Its recessed mount enables flush ceiling installation for a discreet, low‑profile appearance in lobbies, corridors, and offices. The camera measures Ø82 × 122 mm and weighs 353g, with ±80° pan and 65° tilt for flexible adjustment. The IK10‑rated metal housing resists impact, and it operates from -10°C to 50°C with 90% humidity tolerance, powered by PoE 802.3af Class 2 at just 3.6W max.
Installation Notes
A built‑in microphone supports one‑way audio, and Trend Micro IoT Security provides a 1‑year free trial for cyber protection. ONVIF Profiles G, S, and T ensure broad system integration, with RJ‑45 10/100 Mbps and microSD slot for edge storage up to 1TB. The camera holds CE, FCC Class B, RCM, VCCI, UL, CB, IK10, and BIS certifications, backed by a 36‑month warranty.
| System Information | |
| Model | FD9182-H |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Type | Fixed Iris |
| Field of View | Horizontal: 103° Vertical: 76° Diagonal: 134° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.03 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) |
| Pan Range | ±80° |
| Tilt Range | 65° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560x1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 65 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| ONVIF | Profile G, S, T supported |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 3.6 W |
| Dimensions | Ø 82 x 122 mm |
| Weight | 353 g |
| Certifications | EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262); IA: BIS (IS 13252) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 90% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide |
