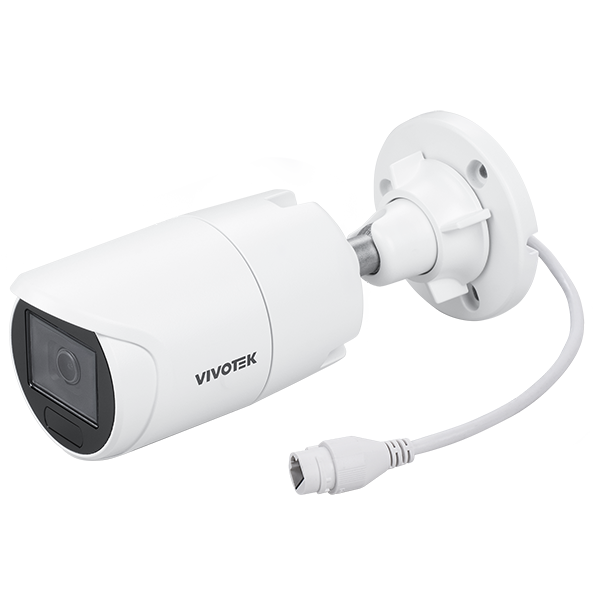

Vivotek - IB833-HV - Vortex Premium Cloud 5MP Outdoor AI IR 180° Bullet 3.6mm
Product Overview
The VIVOTEK IB833-HV is a high-definition 5MP bullet camera designed for reliable outdoor surveillance. It features WDR Pro technology for superior visibility in high-contrast environments and 30-meter IR illumination for clear night-time imaging. Built with a rugged IP66/IK10-rated metal housing and equipped with a pre-installed 256GB industrial SD card, this camera provides a durable edge-recording solution with advanced AI analytics right out of the box.
Key Configuration
- • 5MP High-Definition Clarity: Equipped with a 1/2.8" progressive CMOS sensor, capturing sharp 2560×1920 resolution at 15 fps for detailed perimeter monitoring.
- • Focused Field of View: The 3.6mm fixed-focal lens provides a 79.6° horizontal FOV, striking an ideal balance between area coverage and subject detail for bullet-style surveillance.
- • Night Vision Performance: Features powerful IR illuminators reaching up to 30 meters, ensuring clear identification in complete darkness.
- • Industrial Edge Recording: Includes a pre-installed 256GB industrial-grade SD card, providing a high-reliability, maintenance-free storage solution directly on the device.
- • PoE Integration: Optimized for easy deployment via PoE (802.3af), with a maximum power draw of 10.6W, ensuring compatibility with standard network infrastructure.
Key Features
The IB833-HV is a rugged NDAA/TAA-compliant bullet camera featuring WDR Pro for high-contrast scenes and a built-in microphone for one-way audio monitoring. It offers a flexible mounting design with 90° tilt and 180° rotation, secured by enterprise-grade protections like secure boot and signed firmware. Beyond standard AI analytics, the xPro license adds advanced safety features such as fall detection and Personal Protective Equipment (PPE) monitoring.
Technical Context
Designed for high-performance networking, this camera supports WebRTC and TLS 1.2 for secure streaming to up to six concurrent clients. It is globally certified UL, CB, FCC, and built for durability in harsh environments, operating reliably in temperatures as low as -30°C. The system is engineered to maintain data integrity across standard protocols like IPv4, RTSP, and HTTPS within a 90% non-condensing humidity range.
Installation Notes
Constructed with a heavy-duty metal housing, this unit measures Ø91.0 × 226.6 mm and weighs 925 g, providing robust IP66 and IK10 protection. The package includes an alignment sticker and cable gland to ensure a weather-tight installation using standard CAT5e or CAT6 cabling. For long-term project security, the hardware is eligible for an industry-leading warranty of up to 10 years, depending on the license tier.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960 HD: 2560 x 1920 |
| Lens Types | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Field of View | 79.6° (Horizontal) 57.8° (Vertical) 105.8° (Diagonal) |
| Camera Movement | Tilt: 90° Rotate: 180° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | 30 meters |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | One-way Audio |
| Interface | Built-in microphone |
| Effective Range | 5 Meters |
| Power and Network | |
| Power input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 10.6 W / 6.0 W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
| Certifications | EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1) Environment: IK10 (IEC 62262), IP66 (IEC 60529); BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 925 g |
| Dimensions | Ø 91.0 x 226.6 mm |
| Body | Metal |
| AI Analytics | |
| Audio detection | Yes |
| Tampering detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with a license | Personal protective equipment, Fall detection, Think alert, Facial recognition, License plate recognition |
