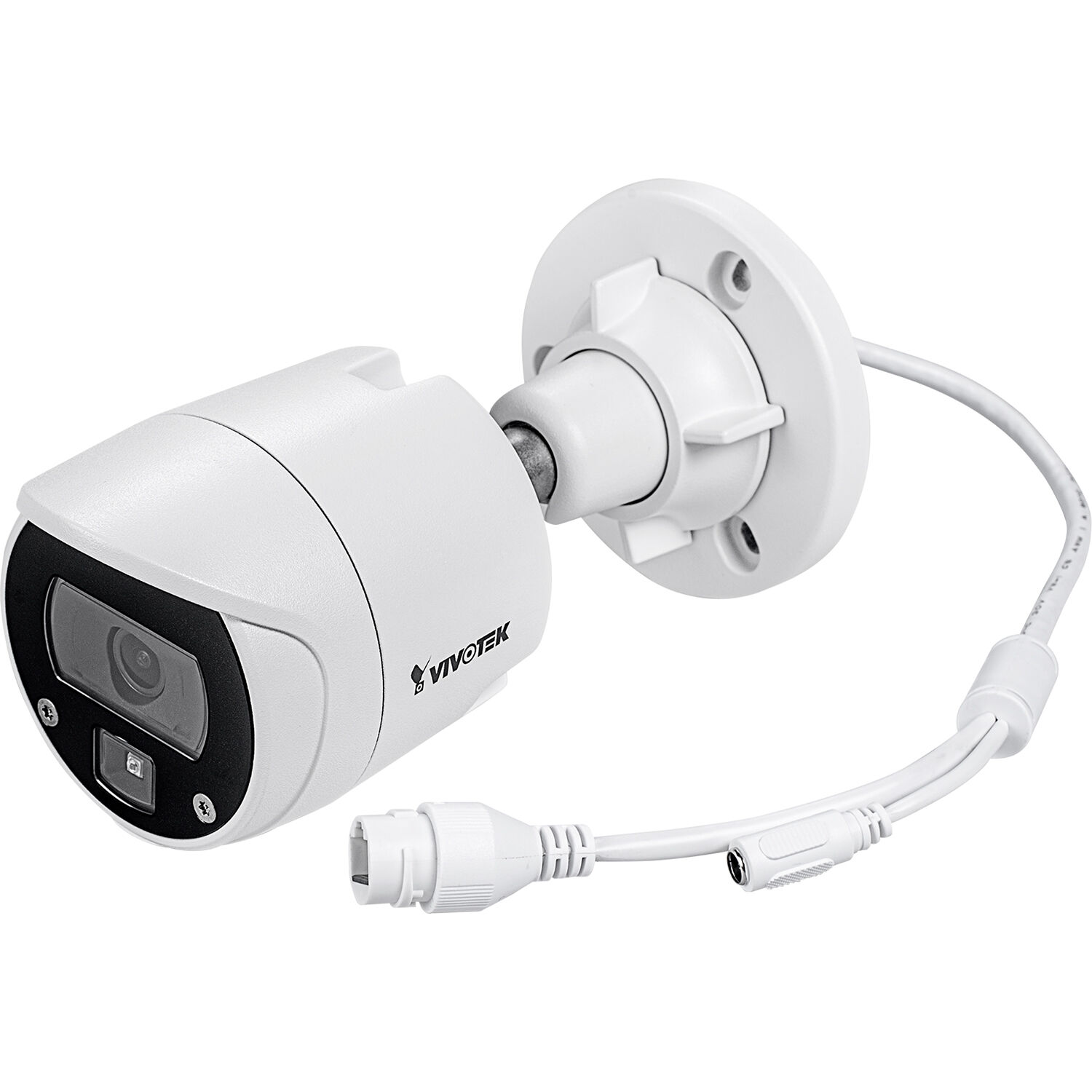

Vivotek - IB9369-F2 - 2MP 30M IR H.265 Outdoor Bullet, 2.8mm
Part number:
IB9369-F2
Price:
VIVOTEK IB9369-F2 is an affordable outdoor bullet network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. IB9369-F2 offers fixed-focal lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility.
For harsh outdoor environment, IB9369-F2 is encased in IP66 and IK10 housing. Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. Lastly the IB9369-F2 uses H.265 compression technology, which helps to reduce bandwidth and storage consumption.
Features:
- H.265 Compression Technology
- 30 fps @ 1920x1080
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Smart Motion Detection to Reduce False Alarms
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
| System Information | |
| Model | IB9369-F2 (2.8mm) IB9369-F3 (3.6mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/3.1" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | IB9369(2.8mm): f = 2.8 mm IB9369(3.6mm): f = 3.6 mm |
| Aperture | IB9369(2.8mm): F2.0 IB9369(3.6mm): F2.2 |
| Iris Type | Fixed iris |
| Field of View | IB9369(2.8mm): 118° (Horizontal) 65° (Vertical) 140° (Diagonal) IB9369(3.6mm): 90° (Horizontal) 49° (Vertical) 106° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1 |
| Minimum Illumination | IB9369(2.8mm): 0.08 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on IB9369(3.6mm): 0.1 lux @ F2.2 (Color) <0.005 lux @ F2.2 (B/W) 0 lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 2 video streams (Up to 7 configurable profiles) |
| S/N Ratio | 59 dB |
| Dynamic Range | WDR Support |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, people detection, time filter |
| VADP Package | Smart Motion Detection |
| Alarm and Event | |
| Event Trigger | Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot |
| Event Action | Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max. 6.49W/4W (IR on/off) DC 12V: Max. 5.1W/3.4W (IR on/off) |
| Dimensions | Ø 91.1 x 181.5 mm |
| Weight | 671 g |
| Certifications | EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252):BSMI; Environment: IK10 (IEC 62262), IP66 (IEC 60529) |
| Operating Temperature | Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 95% RH (non-condensing) |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
