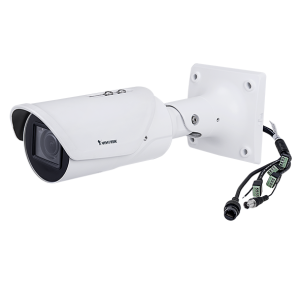

Vivotek - IB9387-EHT-A - 5MP 50M IR H2.65 Outdoor Remote Focus Bullet, IoT Security
Part number:
IB9387-EHT-A
Price:

VIVOTEK IB9387-A is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, IB9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.

The IB9387-A series offers remote focus lens for different user scenario. The IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, IB9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.

Employing VIVOTEK's smart stream III technology and H.265 codec support, the IB9387-A Series reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios.

The IB9387-A series also now supports a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.



Features:

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • H.265 Compression Technology
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments
  • Built-in IR illuminators, effective up to 50 meters
  • Smart IR II Technology to Avoid Overexposure
  • Smart Motion Detection to Reduce False Alarms
  • Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection)
  • Trend Micro IoT Security
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
Technical Specifications
System Information
ModelIB9387-EHT-A
CPUMultimedia SoC (System-on-Chip)
Flash256 MB
RAM1 GB
Camera Features
Image Sensor1/2.7" Progressive CMOS
Max. Resolution2560x1920 (5MP)
Lens TypeMotorized, Vari-focal, Remote Focus
Focal Lengthf = 2.7 ~ 13.5 mm
ApertureF1.4 ~ 2.8
Auto-irisP-iris
Field of View100° ~ 30° (Horizontal)
72° ~ 23° (Vertical)
135° ~ 38° (Diagonal)
Shutter Time1/5 sec. to 1/32,000 sec.
WDR TechnologyWDR Pro
Day /NightYes
Removable IR-cut FilterYes
IR IlluminatorsBuilt-in IR illuminators up to 50 meters with Smart IR II, IR LED*6
Minimum Illumination0.075 lux @ F1.4 (Color)
<0.01 lux @ F1.4 (B/W)
0 lux with IR illumination on
Tilt Range90°
Rotation Range180°
Pan/Tilt/Zoom FunctionalitiesePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
StorageSeamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached
storage (NAS)
Built-in Installation AidsRemote focus, remote zoom, CVBS
Video
Video CompressionH.265, H.264, MJPEG
Maximum Frame Rate30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro of f )
Maximum Streams3 simultaneous streams
S/N Ratio57 dB
Dynamic Range120 dB
Video StreamingAdjustable resolution, quality and constant bit rate control, Smart Stream III
Image SettingsGeneral settings: video title and time stamp overlay, video orientation (f lip, mirror,
rotation), day /night settings; Illuminators: illuminators, anti-overexposure; Image settings:
white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma
curve), defog, 3DNR, EIS; Exposure: BLC, HLC, exposure control (exposure lev el, iris
adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus:
zoom, focus; Privacy mask; Scheduled prof ile settings

Audio
Audio CapabilityTwo-way Audio (full duplex)
Audio CompressionG.711, G.726
Audio Interf aceExternal microphone input
External line output
Network
UsersLive viewing f or up to 10 clients
SecurityAccess list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute f orce attack event, cyberattack event, quarantine event), user access log, user account management
Protocols802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv 4, IPv 6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIFProfile G, S supported, specification available at www.onv if .org
Solution Integration
Smart Motion DetectionFive-window video motion detection, people detection, time filter
Smart VCAIntrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, f ace detection, crowd detection, running detection

VADP PackageDeep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-y ear free trial)
Alarm and Event
Event TriggerAudio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Event TriggerEvent notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors

RJ-45 cable connector f or 10/100Mbps Network/PoE connection

Audio input

Audio output

AC 24V power input

DC 12V power input

Digital input *2

Digital output *2

BNC out

LED IndicatorSystem power and status indicator
Power InputIEEE 802.3at Class 4 PoE, DC 12V, AC 24V
(Simultaneous Power Redundancy Supported)
Power ConsumptionPoE: Max. 25/20 W (IR on/of f )
DC 12V: Max. 20.4/15 W (IR on/of f )
AC 24V: Max. 22/17 W (IR on/of f )
Dimensions118 x 118 x 294.6 mm
Weight1.3 kg
CertificationsEMC: CE (EN 55032 Class A, EN55024, EN50121-4), FCC (FCC Part 15 Subpart
A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety :
62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment:
62262), IP66/67 (IEC 60529); IA: BIS (IS 13252) f or IB9387-HT-A
Operating Temperature

Starting Temperature:

-40°C ~ 50°C (-40°F ~ 122°F)

Working Temperature:

-50°C ~ 60°C (-58°F ~ 140°F) (IR of f )

-50°C ~ 50°C (-58°F ~ 122°F) (IR on)

Humidity98%
Warranty36 months
System Requirements
Operating SystemMicrosoft Windows 10/8/7
Mac 10.12 (Chrome only )
Web BrowserChrome 58.0 or above
Internet Explorer 11
Other PlayersVLC: 1.1.11 or above
Included AccessoriesQuick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, sunshield
