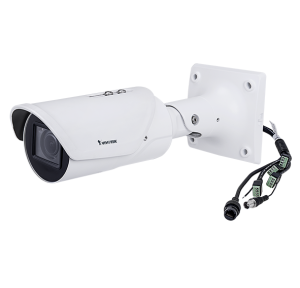

Vivotek - IB9387-HT-A - 5MP 50M IR Outdoor H.265 WDR Pro Bullet, IoTSecurity
Part number:
IB9387-HT-A
Price:

VIVOTEK IB9387-A is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, IB9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.

The IB9387-A series offers remote focus lens for different user scenario. The IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, IB9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.

Employing VIVOTEK's smart stream III technology and H.265 codec support, the IB9387-A Series reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios.

The IB9387-A series also now supports a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.



Features:

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • H.265 Compression Technology
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments
  • Built-in IR illuminators, effective up to 50 meters
  • Smart IR II Technology to Avoid Overexposure
  • Smart Motion Detection to Reduce False Alarms
  • Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection)
  • Trend Micro IoT Security
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
System Information
ModelIB9387-HT-A
CPUMultimedia SoC (System-on-Chip)
Flash256MB
RAM1GB
Camera Features
Image Sensor1/2.7" Progressive CMOS
Max. Resolution2560x1920 (5MP)
Lens TypeMotorized, Vari-focal, Remote Focus
Focal Lengthf = 2.7 ~ 13.5 mm
ApertureF1.4 ~ 2.8
Auto-irisP-iris
Field of View30° ~ 100° (Horizontal)
23° ~ 72° (Vertical)
38° ~ 135° (Diagonal)
Shutter Time1/5 sec. to 1/32,000 sec.
WDR TechnologyWDR Pro
Day/NightYes
Removable IR-cut FilterYes
IR IlluminatorsBuilt-in IR illuminators up to 50 meters with Smart IR II, IR LED*6
Minimum Illumination0.075 Lux @ F1.4 (Color)
<0.01 lux @ F1.4 (B/W)
0 Lux with IR illumination on
Tilt Range90°
Rotation Range180°
Pan/Tilt/Zoom FunctionalitiesePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board StorageSlot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
Video CompressionH.265, H.264, MJPEG
Maximum Frame Rate30 fps @ 2560x1920 (WDR Pro on)
30 fps @ 2560x1440 (WDR Pro on)
60 fps @ 1920x1080 (WDR Pro off)
Maximum Streams3 simultaneous streams
S/N Ratio57 dB
Dynamic Range120 dB
Video StreamingAdjustable resolution, quality and constant bit rate control, Smart Stream III
Image SettingsTime stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, video rotation, EIS
Audio
Audio CapabilityTwo-way Audio (full duplex)
Audio CompressionG.711, G.726
Audio InterfaceExternal microphone input
External line output
Network
UsersLive viewing for up to 10 clients
Protocols802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Interface10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIFSupported, specification available at www.onvif.org
Solution Integration
Smart Motion DetectionFive-window video motion detection, people detection, time filter
Smart VCAIntrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection
*Please access https://license.vivotek.com/ to get the free trial license.
VADP PackageDeep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security
Alarm and Event
Alarm TriggersMotion detection, digital input, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
Alarm EventsEvent notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
ConnectorsRJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio input
Audio output
AC 24V power input
DC 12V power input
Digital input *2
Digital output *2
BNC out
LED IndicatorSystem power and status indicator
Power InputAC 24V
DC 12V
IEEE 802.3af PoE Class 0
(Power Redundancy)
Power ConsumptionPoE: Max. 12.95/7.86 W (IR on/off)
DC 12V: Max. 10.8/5.8 W (IR on/off)
AC 24V: Max. 12.5/7.5 W (IR on/off)
DimensionsØ 118 x 118 x 294.6 mm
Weight1,254 g
CasingIP66, IP67, IK10 (Metal Housing)
Safety CertificationsCE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4, BIS
Operating TemperatureStarting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature(IR on): -30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F)
Humidity98%
Warranty36 months
System Requirements
Operating System

Microsof t Windows 10/8/7

Mac 10.12 (Chrome only )

Web BrowserChrome 58.0 or above
Internet Explorer 11
Other PlayersVLC: 1.1.11 or above
Included Accessories
OthersQuick installation guide, warranty card, screw pack, alignment sticker, desiccant bag, waterproof accessory bag, sunshield
DORI (EN 62676-4 Standard)
Detect (25PPM/ 8PPF)

Wide: 60.2 m (197.5 f t)

Tele: 196.6 m (645.0 f t)

Observ e (63PPM/ 19PPF)

Wide: 23.9 m (78.4 f t)

Tele: 78.0 m (255.9 f t)

Recognize (125PPM/ 38PPF)

Wide: 12.0 m (39.4 f t)

Tele: 39.9 m (130.9 f t)

Id e n tif y ( 2 5 0 P P M/ 7 6 P P F )

Wid e: 6.0 m ( 1 9.7 f t )

Tele: 1 9.7 m ( 6 4.6 f t )
