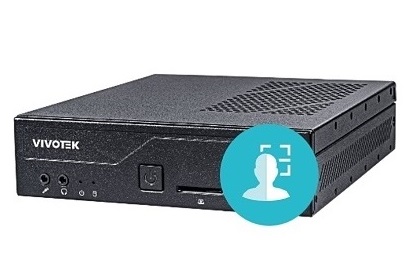

Vivotek - IE8231-F - VAST Face Facial Recognition Workstation
Part number:
IE8231-F
Price:
IE8221-F and IE8231-F are both advanced AI-based Facial Recognition (FR) workstations. Facial profiles captured from IP cameras are used for identification, even under complex environments with changing ambient lighting. Both models are applicable for use in access control and attendance management, supporting up to 2 cameras (IE8221-F) or 8 cameras (IE8231-F). A FR license is required for each camera, and an optional Wiegand box is needed for door access.
Features:
- Live Notifications and Alerts
- Persons of Interest (POI) Management
- Comprehensive Reports
- Support up to 2 Cameras (IE8221-F) or 8 Cameras (IE8231-F)
| Model | IE8231-F |
| Hardware | Intel CPU: i7-10700, Memory: DDR4-2666 32GB RAM, HDD: 2.5" 500GB SSD |
| OS | Linux |
| Maximum Number of Faces in Database | 20,000 |
| Network | 10/100Mb/1Gb Network |
| Maximum Number of Devices Connecting | (Build-in 1CH) Up to: 2 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 190 x 165 x 43 mm (LWH) |
| Weight | Weight: 1.3 kg net and 2.1 kg gross |
| Safety Certifications | CE, FCC |
| System | |
| Architecture | Three Tier Server-client system: · Web Server · Application Server · Database Server |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
| System Security | · Single device login · Renewable session token · Hardened HTTPS |
| Management Interface | |
| Interface | Using Web client |
| Supported Browsers | · Google Chrome · Mozilla Firefox |
| Languages | · English · Traditional Chinese |
| Supported Image Sources | |
| Supported IP Cameras | · Any H.264 ONVIF IP Camera · Any H.264 RTSP IP Camera |
| Supported Face Recognition Tablets | · Tigerwong · Smarfid 5’’ · Smarfid 8’’ |
| Supported Still Image Formats | JPEG, PNG, BMP, Base64 |
| Video Sources Configuration | |
| Region of Interest (ROI) | Setup ROI area for face capture |
| Face Capture Parameters | · Minimum capture face size · Frame capture interval · Side face filter · Biggest face only filter |
| Face Verification Parameters | · Minimum face recognition threshold · Merge recognized faces interval |
| Environment Adaptability | |
| Camera Installation Height | · 3.0 meters max. camera height · Mounting position within 10 degrees inclination |
| Supported Image Modes | Color & Monochrome |
| Robust Against | · Large expressions · Beard and hairstyles · Eyeglasses · Caps and scarfs · Irregular lighting · Partial face occlusion |
| Supported Devices & Integrations | |
| I/O Relay | Moxa E1214 · Advantech ADAM 60XX · VIVOTEK AO-20W I/O Device |
| IP-to-Wiegand Converter | · Doorcard DCT-4TW26 · VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | · Use VAST Face RESTful API |
| Persons of Interest (POI) Management | |
| POI Management | · Enroll person using Web client. · Manage face profiles database through Web Portal |
| POI Authentication | · Using Face as a credential · Using Card Number |
| POI Groups | · Default groups: VIP, Blacklist, Staff · User defined person groups |
| POI Batch Enrollment | Supports bulk enrollment using Excel & JPEG files |
| Enrollment Photo | · Min. face size = 200 x 200 pixel |
| Requirements | · 1MB Max. photo size (.JPG or .PNG) |
| POI Profile Information | · Name, ID #, card #, job position, email, phone, POI group(s), and expiration date |
| POI Reports | |
| Investigation Reports | Generate facial recognition reports and filter events by: · Location · Time period · Name · POI Group · POI type (enrolled or stranger) |
| Attendance Reports | Generate staff clocking reports and filter events by: · Clock-in time · Clock-out time · Stay length · Late Arrival · Early Leave |
| Actions Reports | Generate a report for which pre-defined actions were triggered in response to an event. |
| Export Data | Export results to Excel file |
| Trigger Rules and System Actions | |
| Rule Engine | Rule based engine to trigger single or multiple system actions based on: · Event Location · Schedule · Detection time period · Specific POI profile · POI face group affiliation · Person type (enrolled or stranger) · POI is (not) a member of a group |
| Supported System Actions | · Trigger I/O Relay · Trigger IP-to-Wiegand converter · Send HTTP GET/POST command · WebSocket notification |
| System Users Management | |
| System Users | Register user accounts using Name, E-Mail address & Phone number |
| System User Groups | · System Administrator · Administrator · VAST Face CMS |
| System Inter-Compatibility | |
| Supported Products | · VIVOTEK VAST2 VMS/ CMS · VIVOTEK VAST Face CMS · VIVOTEK VAST FaceVisitor |
| Facial Recognition Verticals | |
| Possible Applications | · Identify potential troublemakers (shoplifters, criminals or any other barred individuals) · Detect VIP members upon arrival to deliver a tailored experience · Provide physical entry to commercial buildings, residences, and other rooms · Contactless staff clock in system · Verify visitor’s identity |
