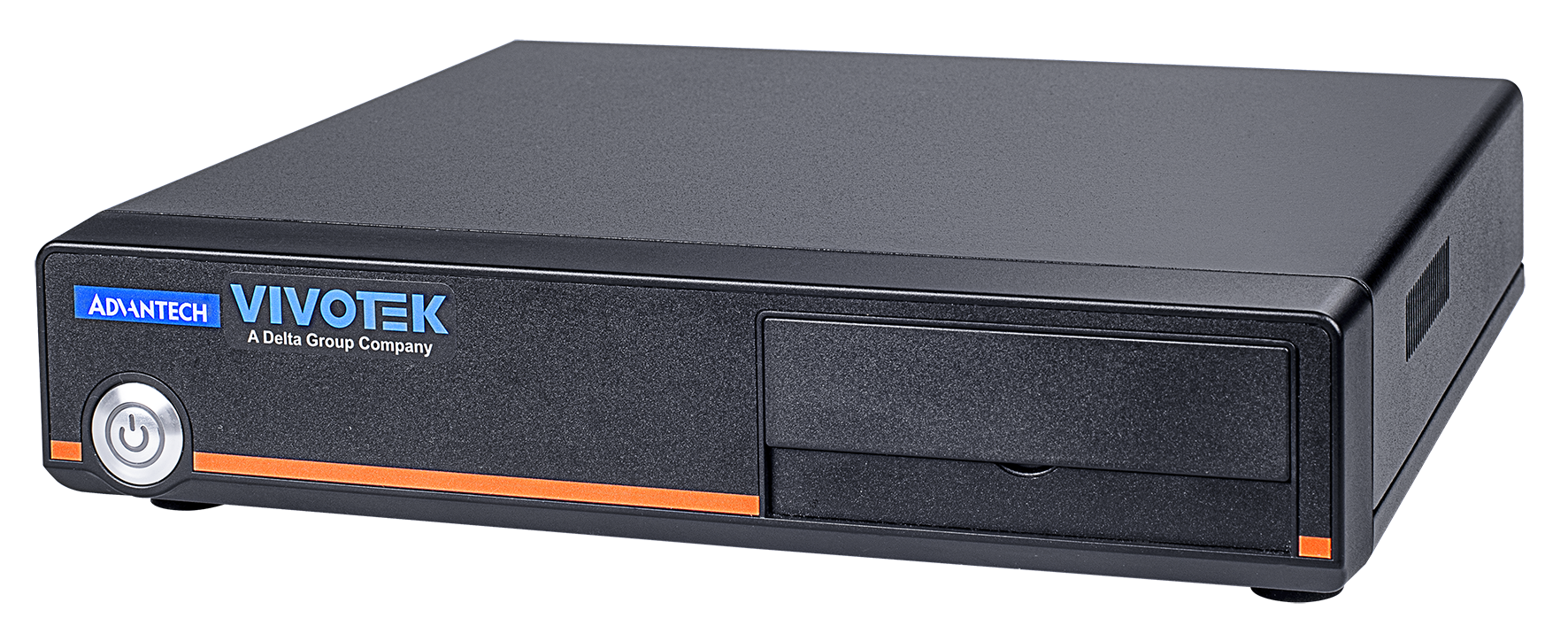

Vivotek - IE9232-F - Facial Recognition Workstation
Part number:
IE9232-F
Price:
IE9232-F is our next-gen AI-based Facial Recognition (FR) workstation, which collaborated with Advantech, the leading industrial PC manufacturer. For each visitor, facial profiles of up to 5 pictures captured from IP cameras are used for identification, leading to higher accuracy even under complex environments with changing ambient lighting. IE9232-F is applicable for use in access control and attendance management, supporting up to 6 cameras. An FR license is required for each camera, and an optional Wiegand box is needed for door access.
Features:
- Enroll a Person's Profile with up to 5 Pictures
- Real-time Notifications and Alerts
- Persons of Interest (POI) Management
- Comprehensive Reports
- Support up to 6 Cameras/Servers
| Model | IE9232-F |
| Hardware | Intel CPU: i7, Memory: DDR4 32GB RAM, HDD: 2.5″ 500GB SSD |
| OS | Linux |
| Maximum Number of Faces in Database | 50,000 |
| Network | 10/100Mb/1Gb Network |
| Maximum Number of Devices Connecting | (Build-in 1CH) Up to: 6 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 240 x 210 x 57 mm (LWH) |
| Weight | Weight: 1.3 kg net and 2.1 kg gross |
| Safety Certifications | CE, FCC, UL, CB, BSMI |
| System | |
| Architecture | Three Tier Server-client system: · Web Server · Application Server · Database Server |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
| System Security | · Single device login · Renewable session token · Hardened HTTPS |
| Management Interface | |
| Interface | Using Web client |
| Supported Browsers | · Google Chrome · Mozilla Firefox |
| Languages | · English · Traditional Chinese |
| Supported Image Sources | |
| Supported IP Cameras | · Any H.264/H.265 RTSP IP Camera |
| Region of Interest (ROI) | Setup ROI area for face capture |
| Face Capture Parameters | · Minimum capture face size · Frame capture interval · Side face filter · Biggest face only filter |
| Face Verification Parameters | · Minimum face recognition threshold · Merge recognized faces interval |
| Environment Adaptability | |
| Camera Installation Height | · 3.0 meters max. camera height · Mounting position within 10 degrees inclination |
| Supported Image Modes | Color & Monochrome |
| Robust Against | · Large expressions · Beard and hairstyles · Eyeglasses · Caps and scarfs · Irregular lighting · Partial face occlusion |
| Supported Devices & Integrations | |
| I/O Relay | Moxa E1214 · Advantech ADAM 60XX · VIVOTEK AO-20W I/O Device |
| IP-to-Wiegand Converter | · Doorcard DCT-4TW26 · VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | · Use VAST Face RESTful API |
| Persons of Interest (POI) Management | |
| POI Management | · Enroll person using Web client. · Manage face profiles database through Web Portal |
| POI Authentication | · Using Face as a credential · Using Card Number |
| POI Groups | · Default groups: VIP, Blacklist, Staff · User defined person groups |
| POI Batch Enrollment | Supports bulk enrollment using Excel & JPEG files |
| Enrollment Photo | · Min. face size = 200 x 200 pixel |
| Requirements | · 1MB Max. photo size (.JPG or .PNG) |
| POI Profile Information | · Name, ID #, card #, job position, email, phone, POI group(s), and expiration date |
| POI Reports | |
| Investigation Reports | Generate facial recognition reports and filter events by: · Location · Time period · Name · POI Group · POI type (enrolled or stranger) |
| Attendance Reports | Generate staff clocking reports and filter events by: · Clock-in time · Clock-out time · Stay length · Late Arrival · Early Leave |
| Actions Reports | Generate a report for which pre-defined actions were triggered in response to an event. |
| Export Data | Export results to Excel file |
| Trigger Rules and System Actions | |
| Rule Engine | Rule based engine to trigger single or multiple system actions based on: · Event Location · Schedule · Detection time period · Specific POI profile · POI face group affiliation · Person type (enrolled or stranger) · POI is (not) a member of a group |
| Supported System Actions | · Trigger I/O Relay · Trigger IP-to-Wiegand converter · Send HTTP GET/POST command · WebSocket notification |
| System Users Management | |
| System Users | Register user accounts using Name, E-Mail address & Phone number |
| System User Groups | · System Administrator · Super User · Person Manager |
| System Inter-Compatibility | |
| Supported Products | · VIVOTEK VAST2 VMS/CMS · VIVOTEK VAST Face Manager/CMS |
| Facial Recognition Verticals | |
| Possible Applications | · Identify potential troublemakers (shoplifters, criminals or any other barred individuals) · Detect VIP members upon arrival to deliver a tailored experience · Provide physical entry to commercial buildings, residences, and other rooms · Contactless staff clock in system · Verify visitor’s identity |
