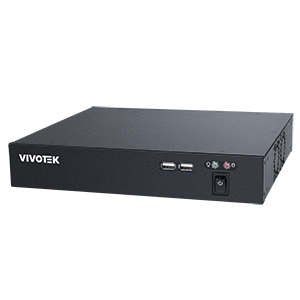

Vivotek - IE9281-FM - Facial Recognition CMS
Part number:
IE9281-FM
Price:
Facial Recognition CMS, Content Management System, Support up to 256 Devices in One Single Server, Support of Local Display via HDMI and Virtual Machine, Installation via USB, Easy to Integrate into Your System, Rich Infographic Reports, Support Rachmount.
Features:
- Support up to 256 Devices in One Single Server
- Support of Local Display via HDMI and Virtual Machine Installation via USB
- Easy to Integrate into Your System
- Rich Infographic Reports
- Support Rachmount Installation
| Model | IE9281-FM |
| Hardware | Intel CPU: Intel Core i7 (8th Generation) or higher, Memory: 32GB or above, HDD: 500GB or above |
| OS | Linux |
| Maximum Number of Faces in Database | 50,000 |
| Network | 10/100/1000 Mb Network |
| Maximum Number of Devices Connecting | Up to: 256 |
| Power Input | 100-240V AC |
| Power Consumption | Max. 90W |
| Dimensions | 250 x 44.2 x 225 mm |
| Weight | 3.98Kg |
| Safety Certifications | CE, FCC, VCCI |
| Support Device | FD9387-FR-V2&V3, FT9361-R, IE9232-F |
| Push Notifitation | Line, What'APP, Json, E-Mail |
| System | |
| Architecture | Three Tier Server-client system: · Web Server · Application Server · Database Server |
| Supported OS | Ubuntu Server 20.04 |
| Supported Protocols | HTTP & HTTPS |
| Supported Hypervisors | VMWare, Hyper-V, Virtual Box |
| Container Type | Docker |
| Database Type | MongoDB |
| System Security | · Single device login · Renewable session token · Hardened HTTPS |
| Management Interface | |
| Interface | Using Web client |
| Supported Browsers | · Google Chrome · Mozilla Firefox |
| Languages | · English · Traditional Chinese |
| Environment Adaptability | |
| Camera Installation Height | · 3.0 meters max. camera height · Mounting position within 15 degrees incline |
| Supported Image Modes | Color & Monochrome |
| Supported Devices & Integrations | |
| I/O Relay | Moxa E1214 · Advantech ADAM 60XX · VIVOTEK AO-20W I/O Device |
| IP-to-Wiegand Converter | · VIVOTEK AO-20W Wiegand Box |
| HTTP Notifications | Send customized GET/POST HTTP messages |
| Others | · Use VAST Face RESTful API |
| Persons of Interest (POI) Management | |
| POI Management | · Enroll person using Web client. · Manage face profiles database through Web Portal |
| POI Authentication | · Using Face as a credential · Using Card Number |
| POI Groups | · Default groups: VIP, Blacklist, Staff · User defined person groups |
| POI Batch Enrollment | Supports bulk enrollment using Excel & JPEG files |
| Enrollment Photo | · Min. face size = 200 x 200 pixels |
| Requirements | · 1MB Max. photo size (.JPG or .PNG) |
| POI Profile Information | · Name, ID #, card #, job position, email, phone, POI group(s), and expiration date |
| POI Reports | |
| Investigation Reports | Generate facial recognition reports and filter events by: · Location · Time period · Name · POI Group · POI type (enrolled or stranger) |
| Attendance Reports | Generate staff clocking reports and filter events by: · Clock-in time · Clock-out time · Stay length · Late Arrival · Early Leave |
| Actions Reports | Generate a report for which pre-defined actions were triggered in response to an event. |
| Export Data | Export results to Excel file |
| Trigger Rules and System Actions | |
| Rule Engine | Rule engine based to trigger single or multiple system actions based on: · Event Location · Schedule · Detection time period · Specific POI profile · POI face group affiliation · Person type (enrolled or stranger) · POI is (not) a member of a group |
| Supported System Actions | · Trigger I/O Relay · Trigger IP-to-Wiegand converter · Send HTTP GET/POST command · WebSocket notification |
| System Users Management | |
| System Users | Register user accounts using Name, E-Mail address & Phone number |
| System User Groups | · System Administrator · Super User · Person Manager · Report Viewer · Welcome Page |
| System Inter-Compatibility | |
| Supported Products | · VIVOTEK VAST2 VMS/ CMS · VIVOTEK VAST Face CMS · VIVOTEK VAST FaceVisitor |
| Facial Recognition Verticals | |
| Possible Applications | · Identify potential troublemakers (shoplifters, criminals or any other barred individuals) · Detect VIP members upon arrival to deliver a tailored experience · Provide physical entry to commercial buildings, residences, and other rooms · Contactless staff clock in system · Verify visitor's identity |
