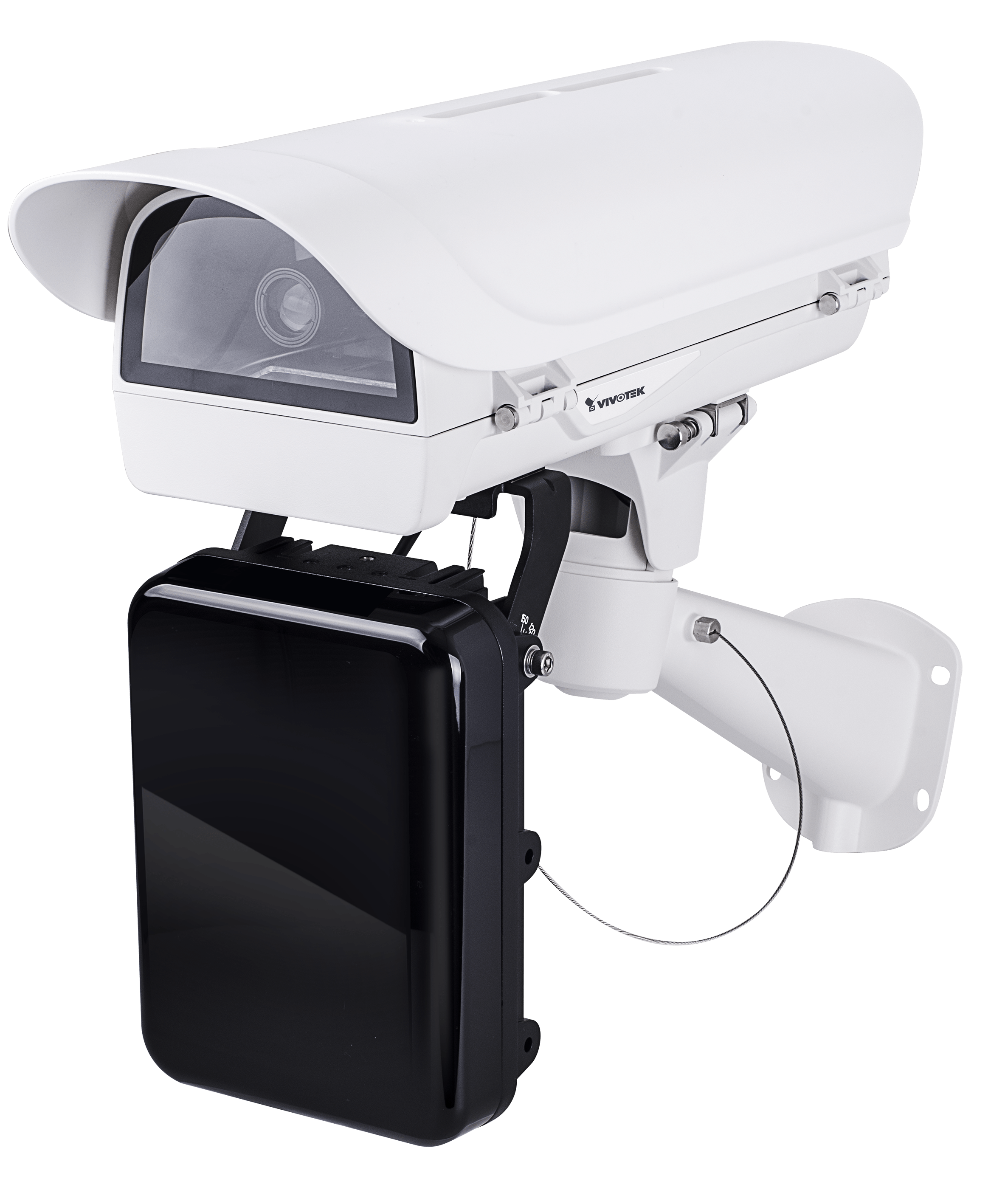

VIVOTEK's IP816A-LPC-v2 Kit represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP816A-LPC box camera. The CaMate IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances. An headlight filter is implemented to reduce instances of glare from direct headlight contact. The IP816A-LPC-v2 Kit delivers clear license plate images for reliable recognition, in both the sunniest days, and in the darkest nights.
Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP816A-LPC-v2 Kit can capture clear plate images from the vehicles moving at speeds of up to 85MPH (140 km/hr).
Value-added features such as DIS (Digital Image Stabilization) and VIVOTEK Snapshot Focus ensure that the IP816A-LPC-v2 Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanes, the IP816A-LPC-v2 Kit is also the most economic solution in LPR applications.
Features:
- One Camera Covers Both Scene Overview & LPC View
- Supreme Anti-Glare Capability
- One Camera Covers Dual Lanes
- Easy Installation and Low Maintenance
- VIVOTEK Snapshot Focus, RBF, and DIS to Support Traffic Monitoring Applications
- CaMate IR Illuminator with CVA Tech (Continuous Variable Angle Technology)
- Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing
| IP816A-LPC-v2 Kit | |
| Model | IP816A-LPC-v2 Kit (Highway) IP816A-LPC-v2 Kit (Street) |
| Max. Speed | Highway: 85MPH (140 km/hr) Street: 60MPH (90 km/hr) |
| IR Threshold | IR on: 300 Lux IR off: 600 Lux RS485 configurable |
| Shutter Time | Highway: 1/1,600 to 1/10,000 sec. Street: 1/800 to 1/10,000 sec. |
| Max. Shutter Time | 1/5 to 1/10,000 sec. |
| IR Illuminators | Highway: 80W, 20° ~ 40° adjustable x 1 Street: 48W, 20° ~ 40° adjustable x 1 |
| Capture Range | Up to 20 meters |
| Captured Lanes | Dual Lanes |
| Power Input | AC24V or DC24V |
| Power Consumption | Highway: Max. 110W (AC24V/DC24V), Suggested Power: AC24V or DC24V/5A Street: Max. 78W (AC24V/DC24V), Suggested Power: AC24V or DC24V/3.5A |
| Weight | 6,482 g |
| Housing | Weather-proof IP68-rated housing Vandal-proof IK10-rated housing |
| Operating Temperature | Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater |
| Humidity | 90% |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Streams | 2 simultaneous streams |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings; 3D noise reduction, DIS, video rotation, snapshot focus, scene mode |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10Base-T/100BaseTX Ethernet (RJ-45) *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www. onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion Detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, IR Status |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Smart Focus System | RBF (Remote Back Focus) |
| IP Camemra Connectors | RJ-45 for Network/PoE connection AC24V or DC12V power input Digital input*3 Digital output*1 |
| Safety Certifications | IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
