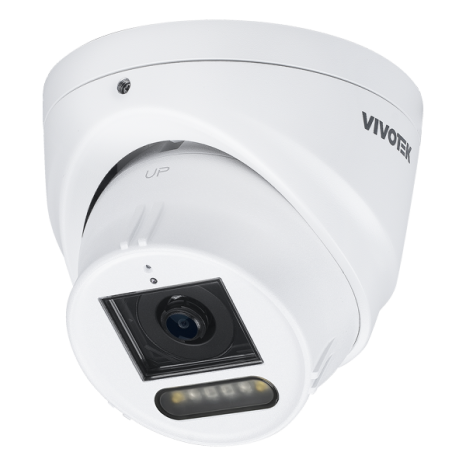

Vivotek - IT833-HVW-1Y - VORTEX Prem Cloud 5MP AI Dual-Light Turret 2.8mm, 1yr lic
Part number:
IT833-HVW-1Y
Price:
- • Premium Series
- • 5MP Outdoor Turret
- • 2.8 mm
- • WDR Pro
- • IP66/IK10
- • FCC/CE/UL/NDAA/TAA
| Camera Features | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960, HD: 2560 x 1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Field of View | 103.4° (Horizontal), 75.3° (Vertical), 135.2° (Diagonal) |
| Camera Movement | Pan: 350°, Tilt: 70°, Rotate: ±175° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in Warm Light & Infrared (Hybrid) illuminators, effective up to 30 meters with Smart IR/ warm light |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.018 lux @ F1.2 (Color), 30IRE, <0.01 lux @ F1.2 (B/W), 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings | |
| Frame Rate | 15FPS |
| Video Streaming Settings | |
| HD Video | 2560 x 1920 @ 15fps, 1.2Mbps upload |
| SD Video | 1280 x 960 @ 15fps, 300Kbps upload |
| Standard Audio Settings | |
| Audio | One-way Audio |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Power and Network | |
| Power Input | Max: 20 W / 13.5W (IR on/ IR off) |
| Power Consumption | Max: 10.7W / 7W (IR on/off), Normal: 5.5W |
| Connectivity | RJ-45 cable connector for 10/100 Mbps PoE network connection, Audio line input, Audio line output, Digital input: 1, Digital output: 1 |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients (Live viewing for 6 clients, live viewing up to 4 clients and playback 2 clients) |
| Security | |
| Security Features | Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F), Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off), -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Humidity | 90% RH (non-condensing) |
| Certifications | |
| EMC | CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN IEC 62368-1) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529) |
| IA | BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | |
| Warranty | 10 years |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 730 g |
| Dimensions | ø 120 x 95 mm |
| Body | Metal |
| AI Analytics | |
| Audio Detection | Yes |
| Tampering Detection | Yes |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search |
| Object Analytics | Unattended object detection, Missing object detection |
