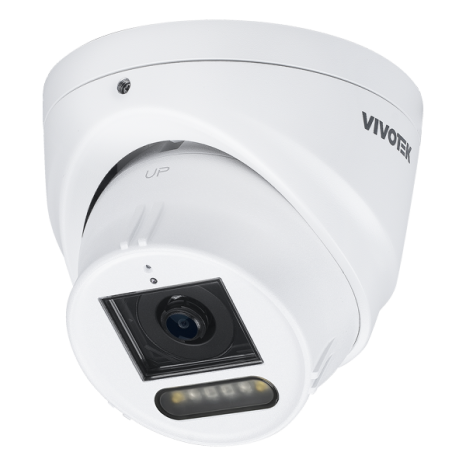

Vivotek - IT833-HVW - Vortex Premium Cloud 5MP Outdoor AI DualLt Turret Camera 2.8mm

Product Overview

The VIVOTEK IT833-HVW is a specialized 5MP outdoor turret camera that stands out for its hybrid illumination, combining infrared and warm light to provide full-color night imaging when triggered. It features a wide 2.8mm fixed lens and WDR Pro to maintain high-definition clarity across diverse lighting conditions. Protected by an IP66/IK10-rated metal housing and equipped with a 256GB industrial SD card, it offers a robust, all-in-one surveillance solution with integrated AI search capabilities.

Key Configuration

• • Ultra-Wide Turret Coverage: Features a 2.8mm fixed-focal lens that provides an expansive 103.4° horizontal FOV, ideal for wide-area monitoring with 5MP (2560×1920) clarity.
• • Intelligent Hybrid Illumination: Equipped with both warm light and IR LEDs reaching up to 30 meters, allowing for tactical switching between stealthy IR and full-color night imaging.
• • Low-Light Versatility: Captures color at 0.055 lux and black-and-white at 0.005 lux, ensuring high-contrast evidence even before the 0-lux IR/warm light triggers.
• • Ready-to-Go Edge Storage: Comes with a pre-installed 256GB industrial-grade SD card, offering specialized durability for high-frequency write cycles in outdoor conditions.
• • Optimized Power Consumption: Efficiently powered via PoE (802.3af) with a typical consumption of just 5.5W, peaking at 10.7W when hybrid lighting is fully active.

Key Features

The IT833-HVW is a versatile 5MP turret camera distinguished by its Hybrid Illumination, which utilizes both IR and warm light to deter intruders or provide full-color evidence. It features WDR Pro and a built-in microphone for synchronized audio-visual monitoring, all while maintaining strict NDAA/TAA compliance. Cybersecurity is a core priority, featuring secure boot and signed firmware, while the AI engine facilitates high-speed attribute and scene searching to streamline forensic investigations.

Technical Context

Designed for secure, multi-user environments, this camera supports WebRTC and encrypted TLS 1.2 connections for up to six concurrent clients. It is engineered for harsh outdoor deployments, boasting IP66 and IK10 certifications and an operational temperature range down to -30°C. The system architecture ensures seamless integration with modern network protocols like IPv4 and RTSP, providing a stable foundation for 24/7 high-definition streaming.

Installation Notes

The compact metal turret design measures Ø120 × 95 mm and weighs only 730 g, making it a lighter, low-profile alternative to traditional bullet cameras. It features a flexible 3-axis adjustment (350° pan, 70° tilt) for precise field-of-view positioning. The package includes a cable gland for weather-sealed connectivity via CAT5e/CAT6, and the unit is backed by an available 10-year warranty, ensuring long-term reliability for critical security infrastructure.
