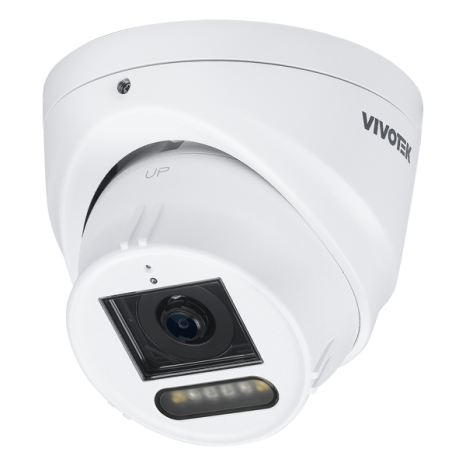

Vivotek - IT839-HTVW-V2 - Vortex Premium Cloud 5MP Outdoor AI DualLt Turret Zoom Camera
Product Overview
The VIVOTEK IT839-HTVW-V2 is a sophisticated 5MP turret camera equipped with a 2.8~12mm motorized vari-focal lens for remote precision focusing. It features a high-performance Hybrid Illumination system with 40m IR and 30m warm light, alongside full-duplex two-way audio via an integrated microphone and speaker. Housed in a rugged IP66/IK10 metal casing and pre-loaded with a 256GB industrial SD card, this camera provides advanced AI-driven forensic search capabilities in a durable turret form factor.
Key Configuration
- • 5MP Motorized Vari-focal: 1/2.8" CMOS sensor with a 2.8~12mm lens (95.4°–28.7° FOV) and remote focus for precision viewing.
- • 40m Hybrid Illumination: Combines 40m IR and 30m warm light for flexible night vision and full-color event capture.
- • 256GB Industrial SD: Pre-installed industrial-grade storage for high-reliability edge recording straight out of the box.
- • Full-Duplex Audio: Integrated microphone and speaker for clear two-way communication and active deterrence.
- • PoE Powered: Operates on standard PoE (802.3af) with a 12.4W max draw, housed in a rugged IP66/IK10 metal casing.
Key Features
The camera features full-duplex two-way audio with both a built-in microphone and speaker for real-time communication. It is NDAA/TAA compliant and offers robust cybersecurity through secure boot, signed firmware, and end-to-end video encryption. Beyond standard analytics, its specialized AI engine enables rapid attribute and scene searching, while the xPro license adds advanced safety features like Personal Protective Equipment (PPE) monitoring and fall detection.
Technical Context
Designed for high-security networking, this camera supports WebRTC for seamless browser streaming and TLS 1.2 for encrypted data integrity across up to six concurrent clients. The device is engineered to handle versatile I/O integration via digital input/output ports and is fully compatible with professional protocols such as IPv4, RTSP, and HTTPS. This ensures reliable performance in enterprise environments requiring deep integration with third-party security systems.
Installation Notes
This unit features a durable metal housing with a flexible 3-axis adjustment (350° pan, 70° tilt, and ±175° rotation) for precise coverage in any mounting orientation. It is built to IP66 and IK10 standards, providing high-level resistance to weather and physical tampering. The package includes an alignment sticker and cable gland for a professional, weather-tight install using CAT5e/CAT6 cabling, all backed by a potential 10-year warranty for long-term project stability.
| Camera | |
|---|---|
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | SD: 1280 x 960 HD: 2560 x 1920 |
| Lens Types | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9° (Diagonal) |
| Camera Movement | Pan: 350° Tilt: 70° Rotate: ±175° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in Warm Light & Infrared (Hybrid) illuminators, IR effective up to 40 meters & warm light effective up to 30 meters with Smart IR / warm light |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard) |
| Standard Video Settings - Frame Rate | 15FPS |
| Video Streaming Settings | HD Video 2560 x 1920@15fps 1.2Mbps upload SD Video 1280 x 960@15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | Two-way Audio (Full duplex) (License required to enable speaker talk-down feature) |
| Interface | Built-in microphone Built-in speaker External microphone Input External line output |
| Effective Range | 5 meters |
| Power and Network | |
| Power input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W / 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection Audio line input Audio line output Digital input: 1 Digital output: 1 |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *Live viewing up to 4 clients and playback 2 clients |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface (Ethernet) | 10 Base-T/100 Base-TX Ethernet *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off) -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | EMC: CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471), UKCA (BS EN IEC 62368-1) Environment: IK10 (IEC 62262), IP66 (IEC 60529) IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | Up to 10 years (Depends on license type) |
| Included Accessories | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 780 g |
| Dimensions | ø 137.9 x 116.9 mm |
| Body | Metal |
| AI Analytics | |
| Audio detection | Yes |
| Tampering detection | Yes |
| Application (Analytics Events) | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| AI Hub with xPro License | Attribute search, Scene search, Re-search, Profile search, LPR search, Think search, Event insight |
| Application available with a license | Personal protective equipment, Fall detection, Think alert, Facial recognition, License plate recognition |
