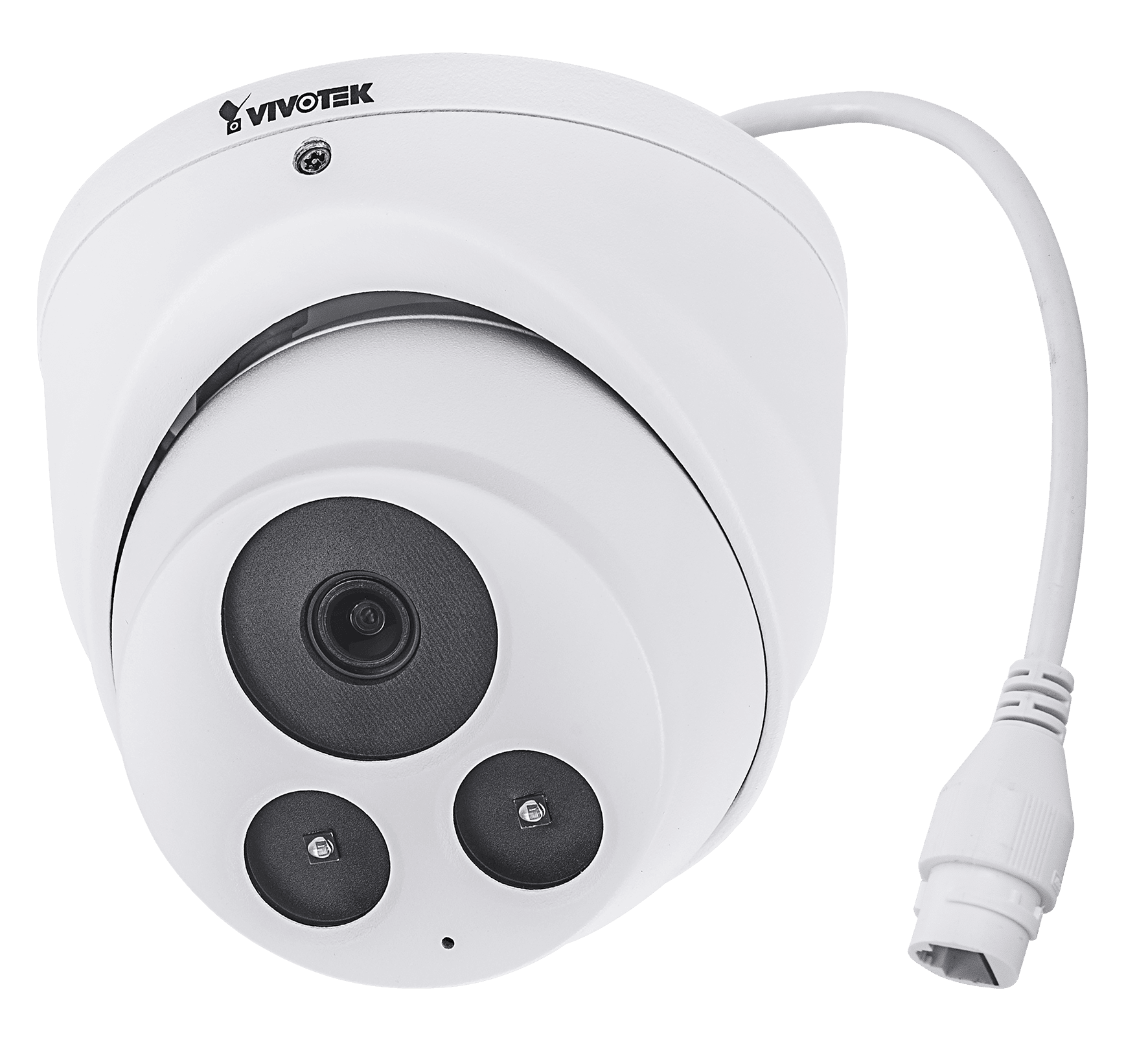

Vivotek - IT9360-HF2 - 2MP 30M IR H.265 Outdoor WDR Pro Turret, IoTSecurity, 2.8mm
Part number:
IT9360-HF2
Price:
2MP 30M IR H.265 Outdoor Turret, Embedded: Trend Micro™ IoT Security for Surveillance Cameras, 2.8mm Lens, 30fps @ 1920x1080, 120 dB WDR PRo, Supreme Night Visibility, Smart Stream III, Smart IR, 3D Noise Reduction, Video rotation, IP66 & IK10-rated Hous.
Features:
- Image Sensor 1/2.9" Progressive CMOS
- Max. Resolution 1920x1080 (2MP)
- Lens Type Fixed-focal
- Focal Length f = 2.8 mm
- Aperture F2.0
- Auto-iris Fixed-iris
- Field of View 109° (Horizontal), 59° (Vertical), 129° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination 0.065 Lux @ F2.0 (Color), <0.005 Lux @ F2.0 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 68 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
- Video Motion Detection Five-window video motion detection
- VADP Package Trend Micro IoT Security, Stratocast
- Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
- Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 2
- Power Consumption Max. 6 W (IR on), Max. 3.31 W (IR off)
- Dimensions Ø 105 x 82.5 mm
- Weight 475 g
- Casing IP66, IK10(Metal Housing)
- Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
- Humidity 90%
- Warranty 24 Months
- Quick installation guide, alignment sticker, screw pack, cable gland
| Technical Specifications | |
| System Information | |
| Model | IT9360-H (2.8mm) IT9360-H (3.6mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/2.9" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | IT9360-H(2.8mm): f = 2.8 mm IT9360-H(3.6mm): f = 3.6 mm |
| Aperture | F2.0 |
| Iris Type | Fixed iris |
| IT9360-H(2.8mm): | |
| 109° (Horizontal) | |
| 59° (Vertical) | |
| 129° (Diagonal) | |
| Field of View | IT9360-H(3.6mm): |
| 81° (Horizontal) | |
| 44° (Vertical) | |
| 95° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day /Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.065 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| Pan Range | 360° |
| Tilt Range | 70° |
| Rotation Range | 360° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | IT9360-H(2.8mm): 68 dB IT9360-H(3.6mm): 68 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation), day /night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure lev el, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Liv e viewing f or up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack ev ent, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Stratocast, Trend Micro IoT Security |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notif ication via email, File upload v ia email, HTTP, |
| General | |
| Connectors | RJ-45 cable connector f or 10/100Mbps Network/PoE connection*1 |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6 W/3.31 W (IR on/of f ) |
| Dimensions | Ø 105 x 82.5 mm |
| Weight | 475 g |
| Certifications | EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 90% |
| Warranty | 36 months |
