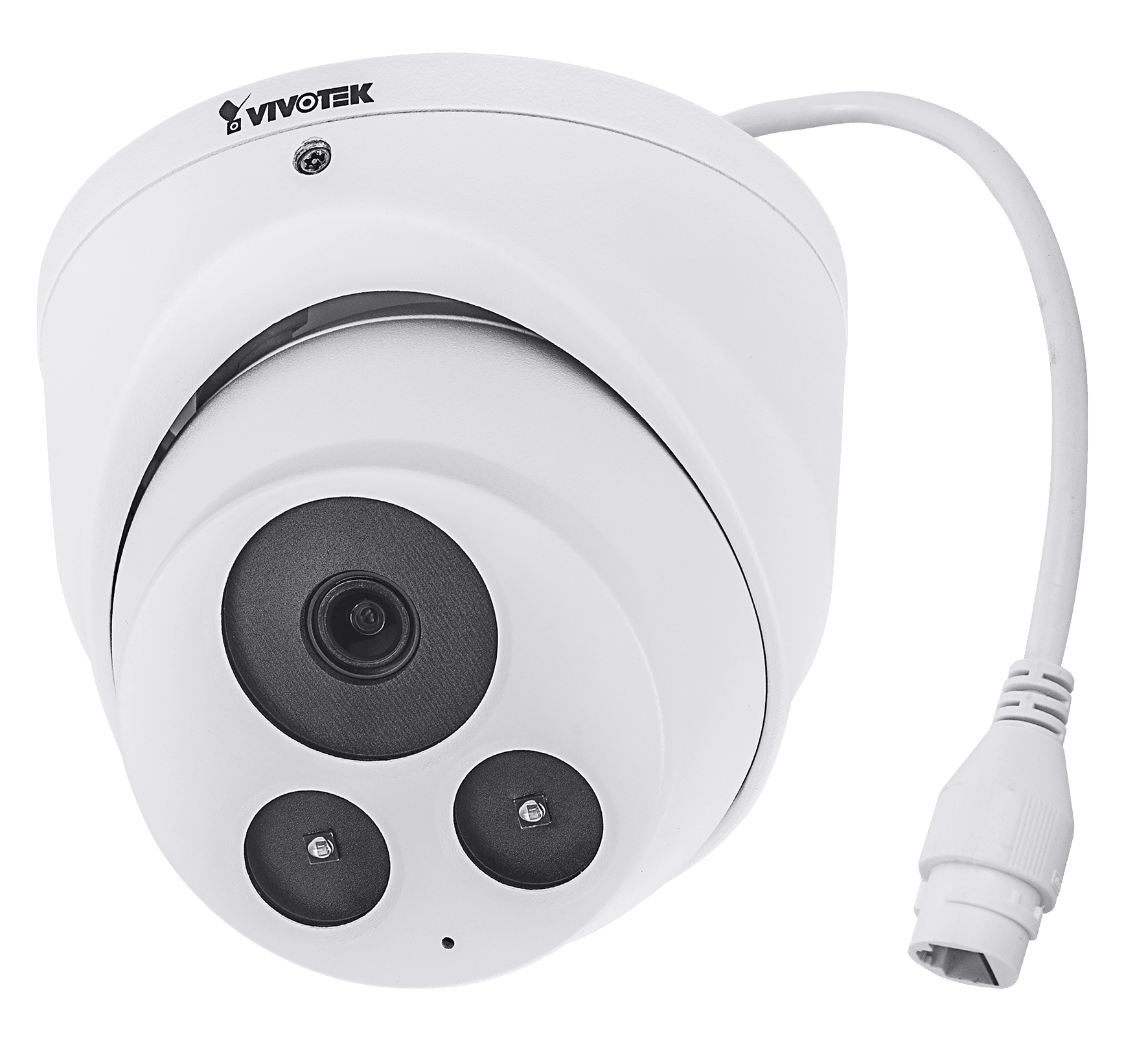

Vivotek - IT9380-HF3 - 5MP 30M IR H.265 Outdoor WDR Pro Turret, IoT Security, 3.6mm
Part number:
IT9380-HF3
Price:
5MP 30M IR H.265 Outdoor Turret, Embedded: Trend Micro™ IoT Security for Surveillance Cameras, 3.6mm Lens, 20fps @ 2560x1920, 120 dB WDR PRo, Supreme Night Visibility, Smart Stream III, Smart IR, 3D Noise Reduction, Video rotation, IP66 & IK10-rated Housing.
Features:
- 265 Compression Technology
- 20fps @ 2560x1920 (WDR Pro on)
- Smart Stream III to Optimize Bandwidth Efficiency
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- SNV (Supreme Night Visibility) for Low Light Conditions
- Built-in IR Illuminators, Effective up to 30 Meters
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Trend Micro IoT Security
- Built-in Microphone
| System Information | |
| Model | IT9380-H (2.8mm) IT9380-H (3.6mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | IT9380-H(2.8mm): f = 2.8 mm IT9380-H(3.6mm): f = 3.6 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed-iris |
| Field of View | IT9380-H(2.8mm): 103° (Horizontal) 76° (Vertical) 134° (Diagonal) IT9380-H(3.6mm): 76° (Horizontal) 59° (Vertical) 100° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.03 Lux @ F2.0 (Color) <0.005 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Pan Range | 360° |
| Tilt Range | 70° |
| Rotation Range | 360° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560×1920 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | IT9380-H(2.8mm): 65 dB IT9380-H(3.6mm): 67 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS/DSCP, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detect |
| VADP Package | Trend Micro IoT Security, Stratocast, VIVOCloud |
| Alarm and Event | |
| Alarm Triggers | Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection*1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6 W (IR on) Max. 3.31 W (IR off) |
| Dimensions | Ø 105 x 82.5 mm |
| Weight | 475 g |
| Casing | IP66, IK10(Metal Housing) |
| Safety Certifications | CE, FCC Class B, UL, LVD, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) |
| Humidity | 90% |
| Warranty | 24 Months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories | |
| Others | Quick installation guide, alignment sticker, screw pack, cable gland |
