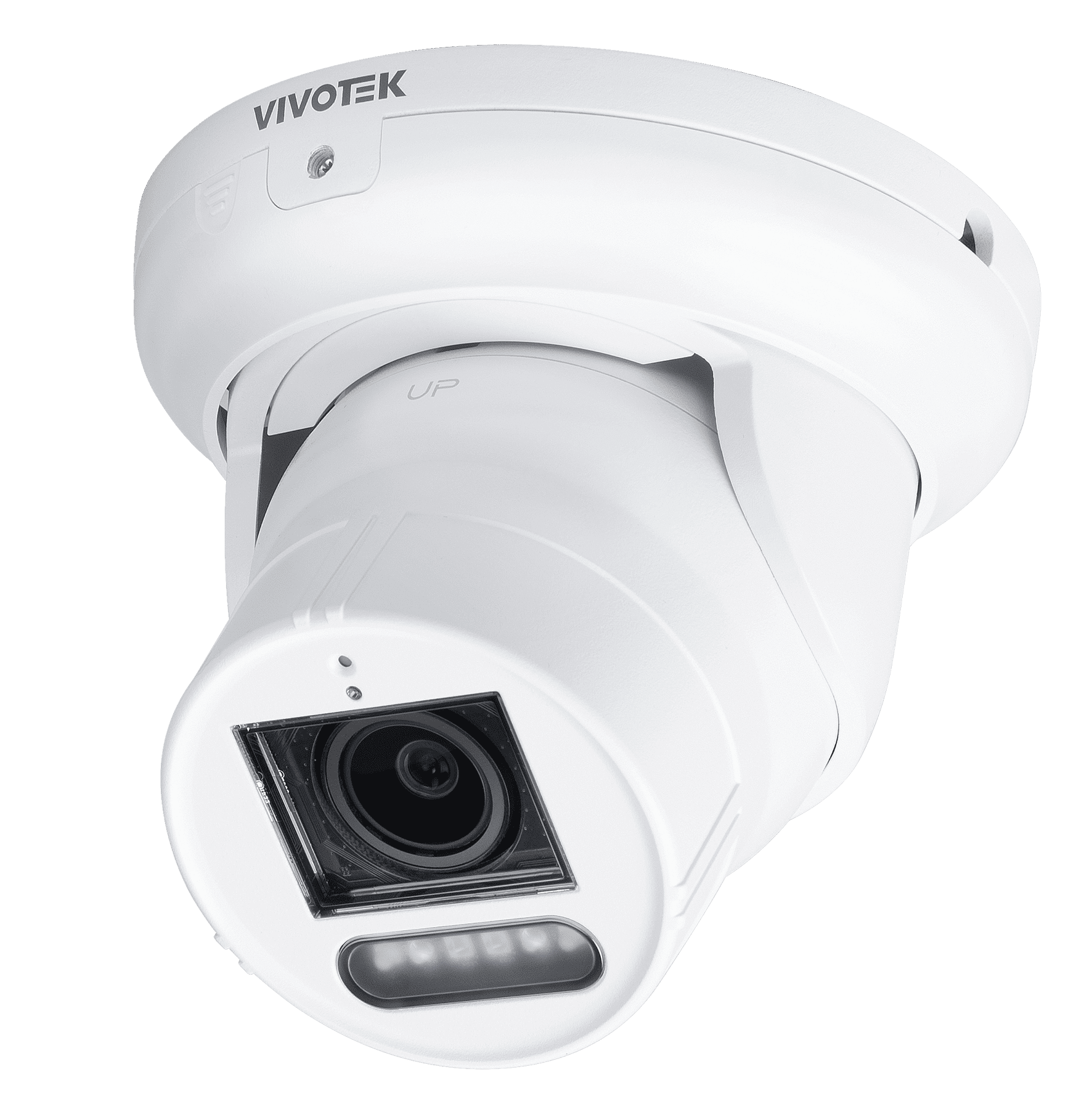

Vivotek - IT9389-HTVW-V3 - V-Series 5MP AI Outdoor Deterrence Turret 2.8-12mm w/ Spkr
Part number:
IT9389-HTVW-V3
Price:
- • Built-in IRs and Warm Light, up to 30M
- • Switchable dual-lighting modes for proactive nighttime deterrence
- • Auto Alarm Deterrence and Real-time Speaker
- • AI-powered Smart Motion Detection and Smart VCA
- • Provide Clear, Color Nighttime Footage
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8~12 mm |
| Aperture | F1.6 ~ F3.3 |
| Iris Type | P-iris |
| Field of View | 95.4° ~ 28.7° (Horizontal), 68.8° ~ 21.5° (Vertical), 129.6° ~ 35.9° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in Warm Light & Infrared (Hybrid) illuminators, IR effective up to 40 meters & warm light effective up to 30 meters with Smart IR/ warm light |
| Minimum Illumination | 0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 70° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 (5MP), 60 fps @ 1920x1080 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 55 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality, and constant bit rate control, Smart Stream III |
| Image Settings | General settings, video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, smart image, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur) |
| Audio | |
| Audio Capability | Two-way audio (Full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone, Built-in speaker, External microphone Input, External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security Features | Access list, CSRF protection, digest authentication, HTTPS, IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45), *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard |
| ONVIF | Profile G, S, T, M supported, Onvif 21.06 |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search |
| Object Analytics | Unattended object detection, Missing object detection |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection, Audio line input, Audio line output, Digital input *1, Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Dimensions | Ø 137.9 x 116.9 mm |
| Weight | 780 g |
| Certifications | |
| EMC | CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529) |
| IA | BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Operating Temperature | |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Working Temperature | -30°C ~ 50°C (-22°F ~ 122°F) (IR off) |
| Humidity | 90% RH (non-condensing) |
| System Requirements | |
|---|---|
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 67.0 m (219.9 ft), Tele: 205.7 m (674.8 ft) |
| Observation (63PPM/ 19PPF) | Wide: 26.7 m (87.5 ft), Tele: 81.6 m (267.8 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 13.3 m (43.7 ft), Tele: 41.0 m (134.4 ft) |
| Identification (250PPM/ 76PPF) | Wide: 6.6 m (21.7 ft), Tele: 20.5 m (67.1 ft) |
