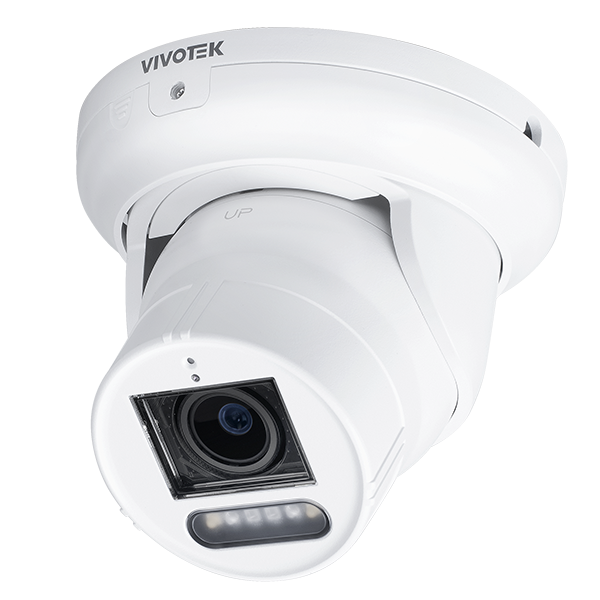

Vivotek - IT939-HTVW - Vortex Premium Cloud 4K Outdoor AI DualLt Turret Zoom Camera

Product Overview

The VIVOTEK IT939-HTVW is a high-end 8MP (4K) turret camera featuring a large 1/1.8" sensor and a 4.3~9.8mm motorized lens for superior clarity. It utilizes a Hybrid Illumination system (40m IR / 30m warm light) and full-duplex two-way audio with an integrated speaker and microphone. Built to IP66/IK10 standards, it includes a massive 512GB industrial SD card and advanced AI analytics, making it a powerful solution for high-resolution forensic surveillance.

Key Configuration

• • 8MP 4K Excellence: Features a large 1/1.8" CMOS sensor and a 4.3~9.8mm motorized lens (110.4°–45.1° FOV) for elite image detail.
• • 40m Hybrid Illumination: Seamlessly switches between 40m IR and 30m warm light for flexible, full-color night evidence.
• • 512GB Industrial Storage: Pre-loaded with a high-capacity 512GB SD card for extensive, reliable 4K recording at the edge.
• • Two-Way Audio & AI: Integrated microphone and speaker paired with advanced AI for intrusion, loitering, and unattended object detection.
• • Rugged PoE Design: Metal IP66/IK10 turret housing with standard PoE (802.3af) support and a 12.4W maximum draw.

Key Features

The IT939-HTVW is a flagship 8MP (4K) turret camera designed for high-fidelity evidence capture, featuring full-duplex two-way audio via an integrated microphone and speaker. It is strictly NDAA/TAA compliant, utilizing secure boot and signed firmware to ensure a hardened cybersecurity posture. Its advanced AI engine supports critical perimeter analytics like unattended object detection, while the AI Hub xPro license unlocks specialized safety tools, including fall detection and PPE monitoring.

Technical Context

Optimized for modern network security, this camera utilizes TLS 1.2 encryption and supports WebRTC for direct, low-latency browser streaming to six concurrent clients. It is engineered for resilience in humid and cold environments, featuring a 98% non-condensing humidity tolerance and an operational range down to -30°C. With certifications including UL, CB, and UKCA, it meets the rigorous standards required for global enterprise and government infrastructure.

Installation Notes

Constructed from durable metal, this turret measures Ø137.9 × 116.9 mm and weighs 780 g, offering a compact yet high-impact (IK10) and weather-resistant (IP66) housing. It provides extensive field-of-view flexibility with 350° pan and rotation capabilities. The unit is designed for easy deployment using standard CAT5e/CAT6 cabling and includes a weather-tight cable gland, all protected by a potential 10-year warranty based on the license tier.
