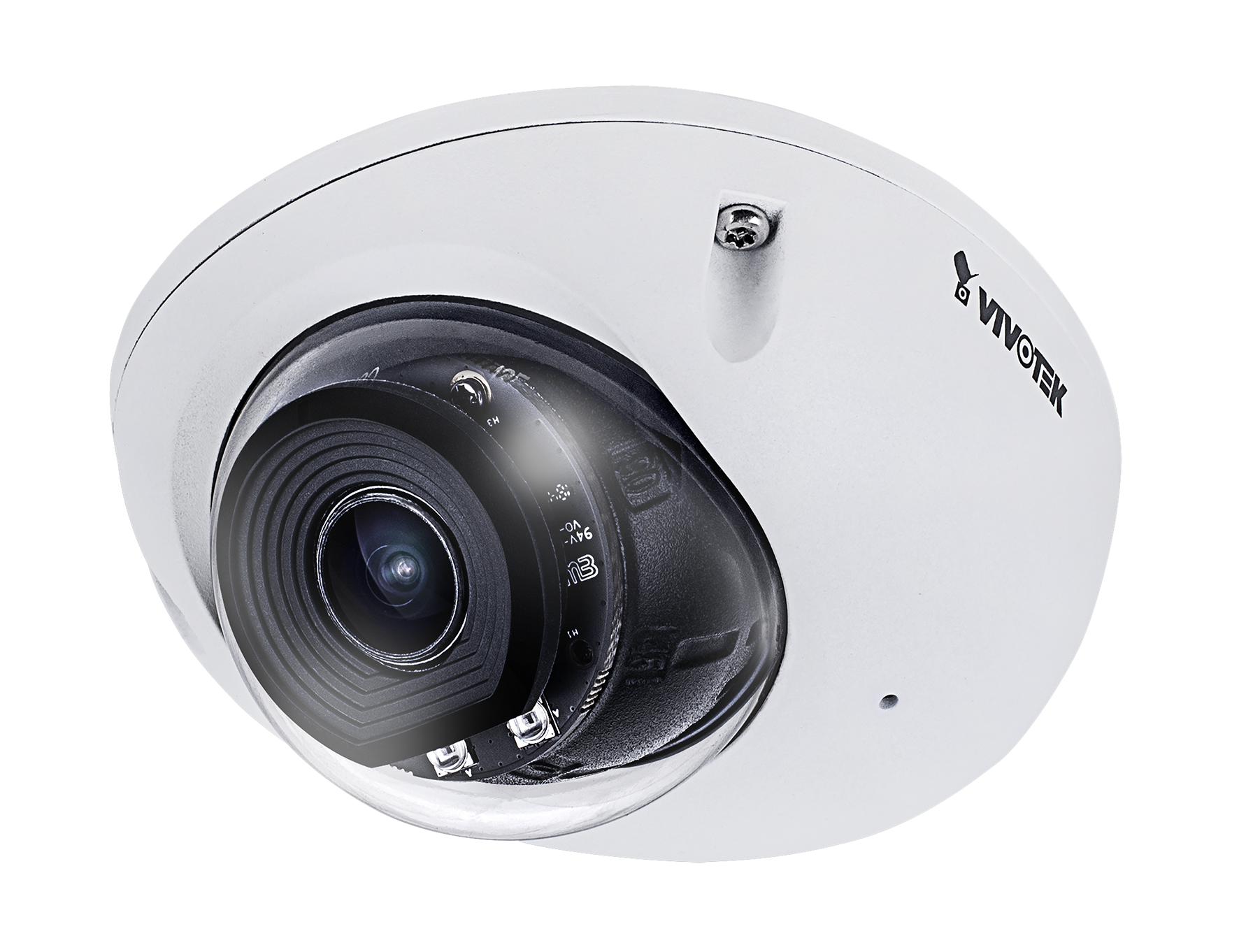

Vivotek - MD9560-DHF2 - 2MP 20M IR H.265 WDR Pro Mobile Dome, EN50155, 2.8mm, DC
• Fast AE for Quick Adaptation to Light Changes
• Weather-proof IP66/IP67 & Vandal-proof IK10
• Built-in IR Illuminators, effective up to 20 Meters
• DC Power Supported
• EN50155 OT1 Compliance
| System Information | |
|---|---|
| Model | MD9560-DHF2 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera | |
| Image Sensor | 1/2.9" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F1.8 |
| Auto-iris | Fixed-iris |
| Field of View | 108° (Horizontal) 60° (Vertical) 124° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.13 Lux @ F1.8 (Color) 0.01 Lux @ F1.8 (B/W) 0 Lux with IR illumination on |
| Pan Range | ±30° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone External line input |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Trend Micro IoT Security, Stratocast |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | M12 for Network connection*1 DC power input*1 Audio input*1 Digital input*1 (30V, 1A) Digital output*1 (12V, 50mA) |
| LED Indicator | System power and status indicator |
| Power Input | DC 7.5 ~ 48V |
| Power Consumption | Max. 5.5 W (IR on) Max. 3.3 W (IR off) |
| Dimensions | 98 x 54 x 110.8 mm |
| Weight | 400 g |
| Casing | IP66, IP67, IK10 |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118, E-Mark |
| Operating Temperature | Starting Temperature: -25°C ~ 55°C (-13°F~ 131°F) Working Temperature: -25°C ~ 60°C (-13°F~ 140°F) (IR off) -25°C ~ 55°C (-13°F~ 131°F) (IR on) Maximum (intermittent): 70 °C (158 °F) |
| Humidity | 98% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories | |
| Others | Quick installation guide, screwdriver, alignment sticker, desiccant bag |
The 2MP Outdoor Vandalproof Mobile Dome Camera is a high-resolution surveillance device built for demanding environments. It features a 2.8mm fixed lens providing a wide field of view and delivers video at 1920x1080 resolution (Full HD) with a smooth 30 frames per second. For operation in complete darkness, it is equipped with infrared (IR) illumination effective up to a 20-meter distance. Designed for robust performance, the camera is housed in a vandalproof and weather-resistant dome suitable for outdoor installation. For audio, it supports one-way audio via a built-in microphone and an external line input. Local storage is possible through a MicroSD/SDHC/SDXC card slot, and it offers network interoperability via ONVIF compatibility. Power is supplied via 48V DC with a 7.5A rating.
