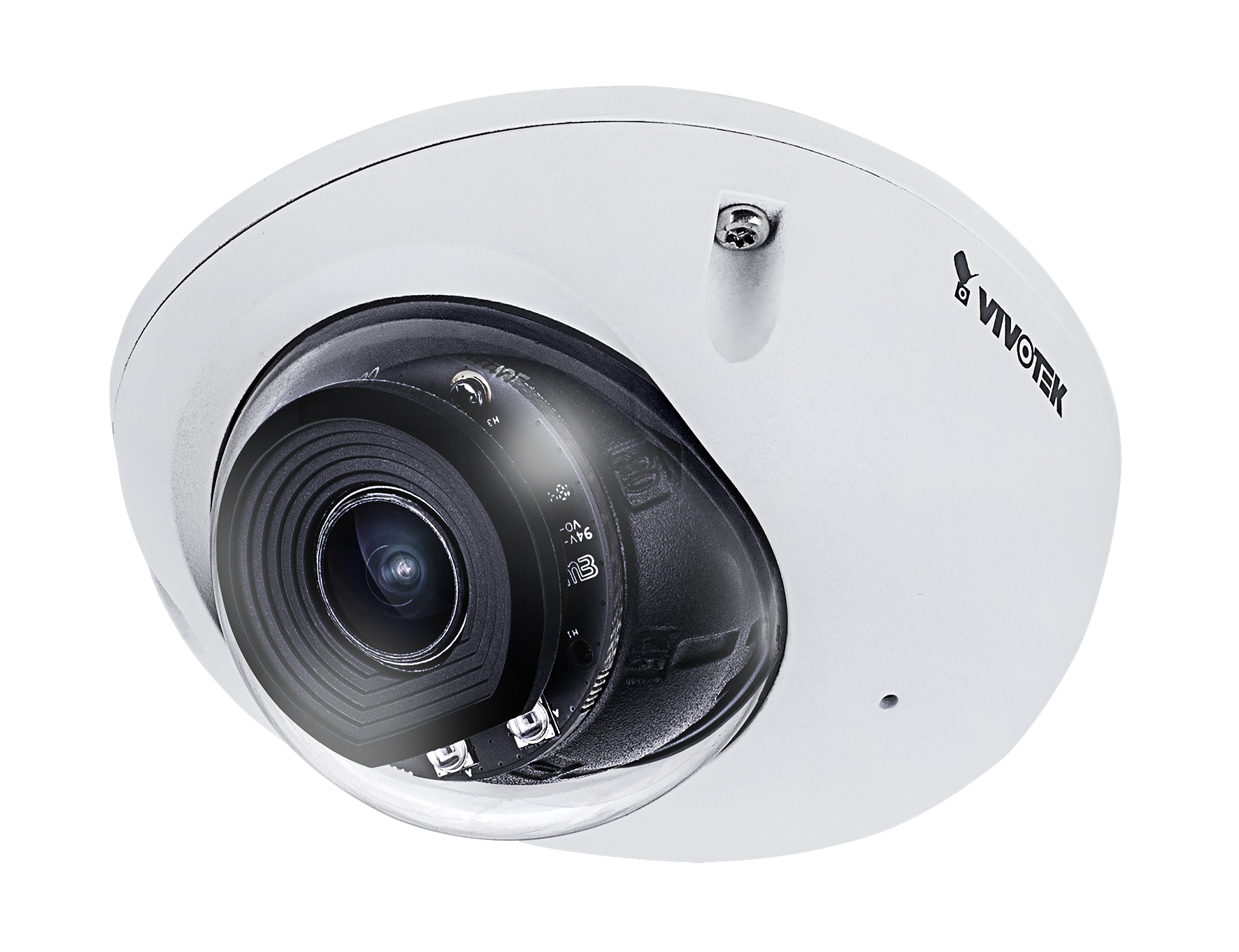

2MP 20M IR H.265 Outdoor Vandalproof Mobile Dome Camera, 3.6mm Lens, 30 fps @ 1920x1080, 120 dB WDR Pro, DC48V 7.5A, 1-Way Audio w/Built-in microphone & External line input,  MicroSD/SDHC/SDXC Card Slot, ONVIF, Smart Stream III, 3D Noise Reduction.

Features:

Camera Features

• Image Sensor 1/2.9" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type Fixed-focal
• Focal Length f = 3.6 mm
• Aperture F1.8
• Auto-iris Fixed-iris
• Field of View N/A
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
• Minimum Illumination 0.13 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W),  0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, seamless Recording

Video

• Video Compression H.265, H264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 60 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog

Audio

• Audio Capability One-way Audio
• Audio Compression G.711, G.726
• Audio Interface Built-in microphone, External line input
• Effective Range 5 meters

Network

• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
• ONVIF Supported

Solution Integration

• Video Motion Detection Five-window video motion detection
• VADP Package Trend Micro IoT Security, Stratocast

Alarm and Event

• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors M12 for Network connection*1, DC power input*1, Audio input*1, Digital input*1 (30V, 1A), Digital output*1 (12V, 50mA),
• LED Indicator System power and status indicator
• Power Input DC 7.5 ~ 48V
• Power Consumption Max. 5.5 W (IR on), Max. 3.3 W (IR off)
• Dimensions 98 x 54 x 110.8 mm
• Weight 400 g
• Casing IP66, IP67, IK10, NEMA 4X
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118, E-Mark
• Operating Temperature -25°C ~ 60°C (-13°F~ 140°F) (IR off), -25°C ~ 55°C (-13°F~ 131°F) (IR on)
• Maximum (intermittent): 70 °C (158 °F)
• Humidity 98%
• Warranty 36 months

Included Accessories

• Quick installation guide, screwdriver, alignment sticker, desiccant bag
