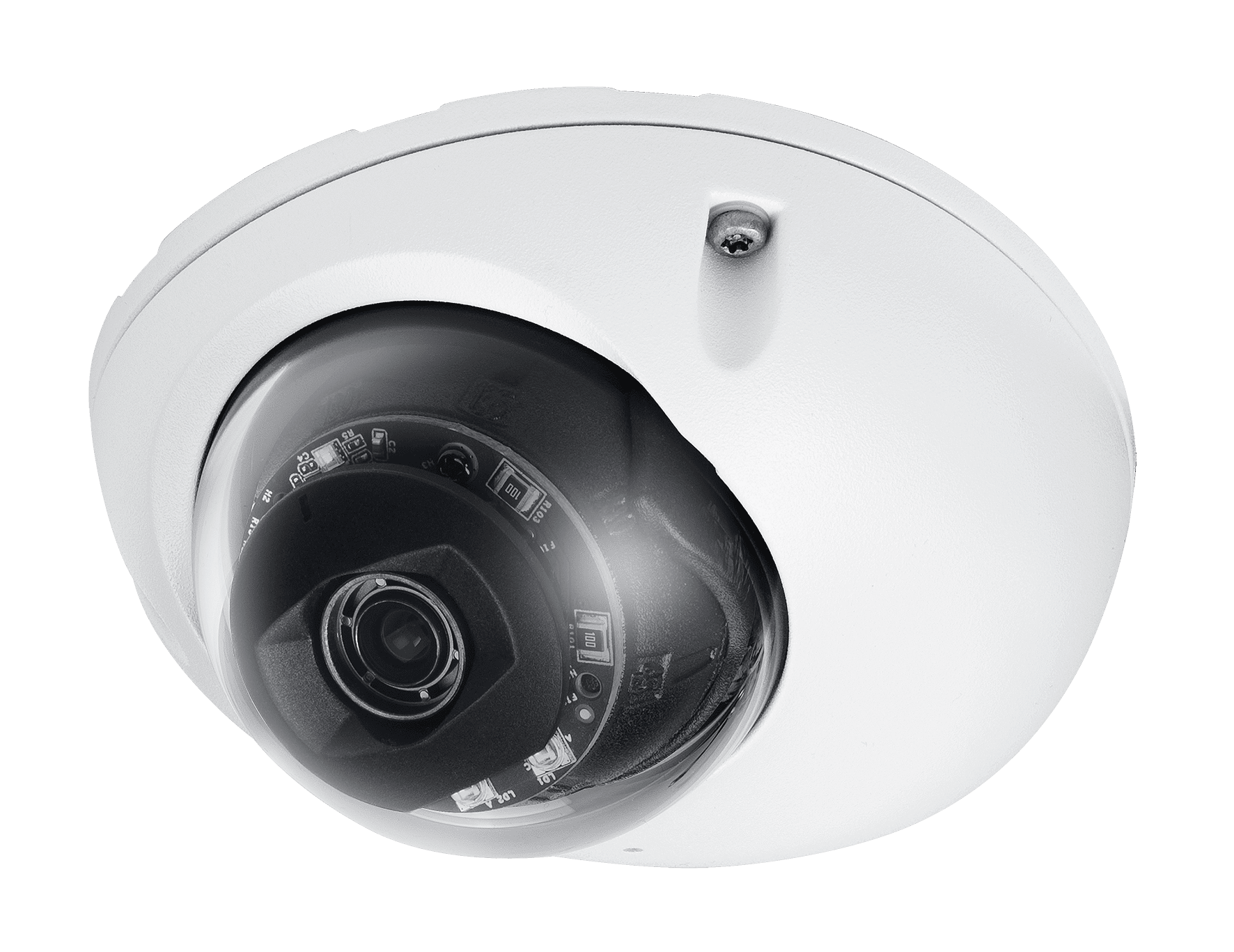

Vivotek - MD9560-H-V2 - 2MP 20M IR H.265 WDR Pro Mobile Dome 2.8mm, M12
Part number:
MD9560-H-V2
Price:
- • Bus & Rail Certified
- • Industrial-Grade Cybersecurity with TPM
- • Guarantees reliability and clear visuals with anti-condensation design
- • Standard M3/M4 mounting options
- • Capturing high-clarity footage of external road conditions with 1080p at 60fps
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256MB |
| RAM | 512MB |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive CMOS |
| Max. Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Type | Fixed-iris |
| Field of View | 114° (Horizontal) 61° (Vertical) 135° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.13 lux @ F1.8 (Color) 0.01 lux @ F1.8 (B/W) 0 lux with IR illumination on |
| Pan Range | ±30° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | 48x digital zoom (4x on IE plug-in,12x built-in) |
| Storage | MicroSD/SDHC/SDXC card slot Seamless Recording Built-in Installation Aids Pixel calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920x1080 |
| Maximum Streams | 4 simultaneous streams |
| Main Stream | 60fps @1920x1080, 1600x904, 1360x768, 1280x720, 640x360, 480x272 |
| 2nd Stream | 60fps @1920x1080, 1600x904, 1360x768, 1280x720, 640x360, 480x272 |
| 3rd Stream | 60fps @1920x1080, 1600x904, 1360x768, 1280x720, 640x360, 480x272 |
| S/N Ratio | 60 dB |
| Dynamic Range | 120dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream III |
| Image Settings | |
| General settings | video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings |
| Illuminators | illuminators, anti-overexposure |
| Image settings | white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, scene mode (auto, deblur) |
| Exposure | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR |
| Focus | zoom, focus Privacy mask pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone Input |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection,Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| VADP Package | Trend Micro (3-year free trial) |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Event Trigger | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, Cybersecurity events (Brute force attack event, Cyberattack event, Quarantine event) |
| Event Action | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | M12 for Network/PoE connection*1 Audio Input*1 Digital input*1 (30V) Digital output*1 (12V, 50mA) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6W(IR ON) Max. 3.96W(IR OFF) |
| Dimensions | 98 x 54 x 110mm |
| Weight | approx. 384 g |
| Casing | IP67, IP66, IK10, NEMA 4X |
| Certifications | |
| EMC | CE (EN 55032, EN 55024 Class B, EN 50121-4, EN 50121-3-2), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Environment | IK10, IP66/67, NEMA 4X |
| Railway | EN 50155: 2021(OT1), EN 50121-3-2:2016, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0, IEC 62236-3-2 Ed 3.0, EN50121-4:2016 |
| Vehicles | ECE R118 |
| Operating Temperature | Starting Temperature: -25°C ~ 55°C Working Temperature: -25°C ~ 60°C(IR OFF) -25°C ~ 55°C(IR ON) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screw driver, alignment sticker |
Name
Description
Size
Downloads
File
Spec_MD9560-H-V2 (2.8 mm)_EN.pdf
0.5mb
