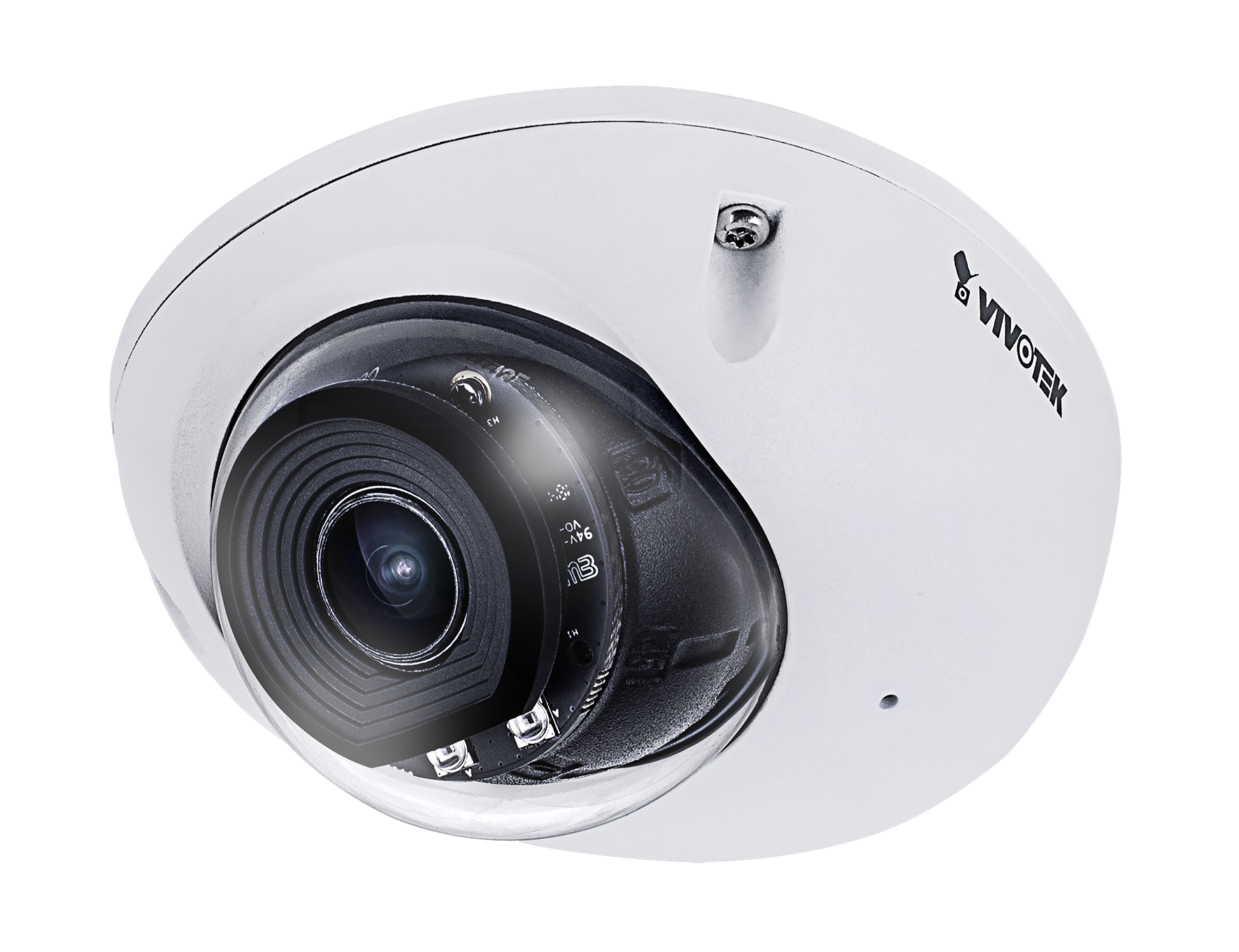

Vivotek - MD9560-HF3 - 2MP 20M IR H.265 WDR Pro Mobile Dome, EN50155, 3.6mm, M12
Part number:
MD9560-HF3
Price:
2MP 20M IR H.265 Outdoor Vandalproof Mobile Dome Camera, 3.6mm Lens, 30 fps @ 1920x1080, 120 dB WDR Pro, PoE, 1-Way Audio w/Built-in microphone & External line input, MicroSD/SDHC/SDXC Card Slot, ONVIF, Smart Stream III, 3D Noise Reduction, Smart IR.
Features:
Camera Features
- Image Sensor 1/2.9" Progressive CMOS
- Max. Resolution 1920x1080 (2MP)
- Lens Type Fixed-focal
- Focal Length f = 3.6 mm
- Aperture F2.0
- Auto-iris Fixed-iris
- Field of View 89° (Horizontal), 47° (Vertical), 105° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
- Minimum Illumination 0.16 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 52 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
- Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog
Audio
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone, External line input
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
- ONVIF Supported
Solution Integration
- Video Motion Detection Five-window video motion detection
- VADP Package Trend Micro IoT Security, Stratocast
Alarm and Event
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors M12 for Network/PoE connection*1, Audio input*1, Digital input*1 (30V, 1A), Digital output*1 (12V, 50mA)
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 2
- Power Consumption Max. 5.5 W (IR on), Max. 3.3 W (IR off)
- Dimensions 98 x 54 x 110.8 mm
- Weight 400 g
- Casing IP66, IP67, IK10, NEMA 4X
- Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118
- Operating Temperature -25°C ~ 60°C (-13°F~ 140°F) (IR off); -25°C ~ 55°C (-13°F~ 131°F) (IR on); Maximum (intermittent): 70 °C (158 °F)
- Humidity 98%
- Warranty 36 months
Included Accessories
- Quick installation guide, screwdriver, alignment sticker, desiccant bag
| System Information | |
| Model | MD9560-HF3(3.6mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features |
| Image Sensor | 1/2.9" Progressive CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Type | Fixed-focal |
| Focal Length | MD9560-H(3.6mm): f = 3.6 mm |
| Aperture | MD9560-H(3.6mm): F2.0 |
| Auto-iris | Fixed-iris |
| Field of View | MD9560-H(3.6mm): 89° (Horizontal) 47° (Vertical) 105° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2 |
| Minimum Illumination | MD9560-H(2.8mm): 0.13 Lux @ F1.8 (Color) 0.01 Lux @ F1.8 (B/W) 0 Lux with IR illumination on |
| Pan Range | ±30° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video |
| Video Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | MD9560-H(2.8mm): 60 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone External line input |
| Effective Range | 5 meters |
| Network |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Supported, specification available at www.onvif.org |
| Solution Integration |
| Video Motion Detection | Five-window video motion detection |
| VADP Package | Trend Micro IoT Security, Stratocast |
| Alarm and Event |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General |
| Connectors | M12 for Network/PoE connection*1 Audio input*1 Digital input*1 (30V, 1A) Digital output*1 (12V, 50mA) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 5.5 W (IR on) Max. 3.3 W (IR off) |
| Dimensions | 98 x 54 x 110.8 mm |
| Weight | 400 g |
| Certifications | EMC: CE (EN 55032, EN 55024 Class B, EN 50121-4, EN 50121-3-2), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66/67 (IEC 60529), NEMA (NEMA 250 Type 4X); Railway: EN 50155: 2017, EN 50121-3-2:2016, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0,IEC 62236-3-2 Ed 3.0, EN50121-4:2016; Vehicles: ECE R118 |
| Operating Temperature | Starting Temperature: -25°C ~ 55°C (-13°F~ 131°F) Working Temperature: -25°C ~ 60°C (-13°F~ 140°F) (IR off) -25°C ~ 55°C (-13°F~ 131°F) (IR on) Maximum (intermittent): 70 °C (158 °F) |
| Humidity | 98% |
| Warranty | 36 months |
| System Requirements |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories |
| Others | Quick installation guide, screwdriver, alignment sticker, desiccant bag |
