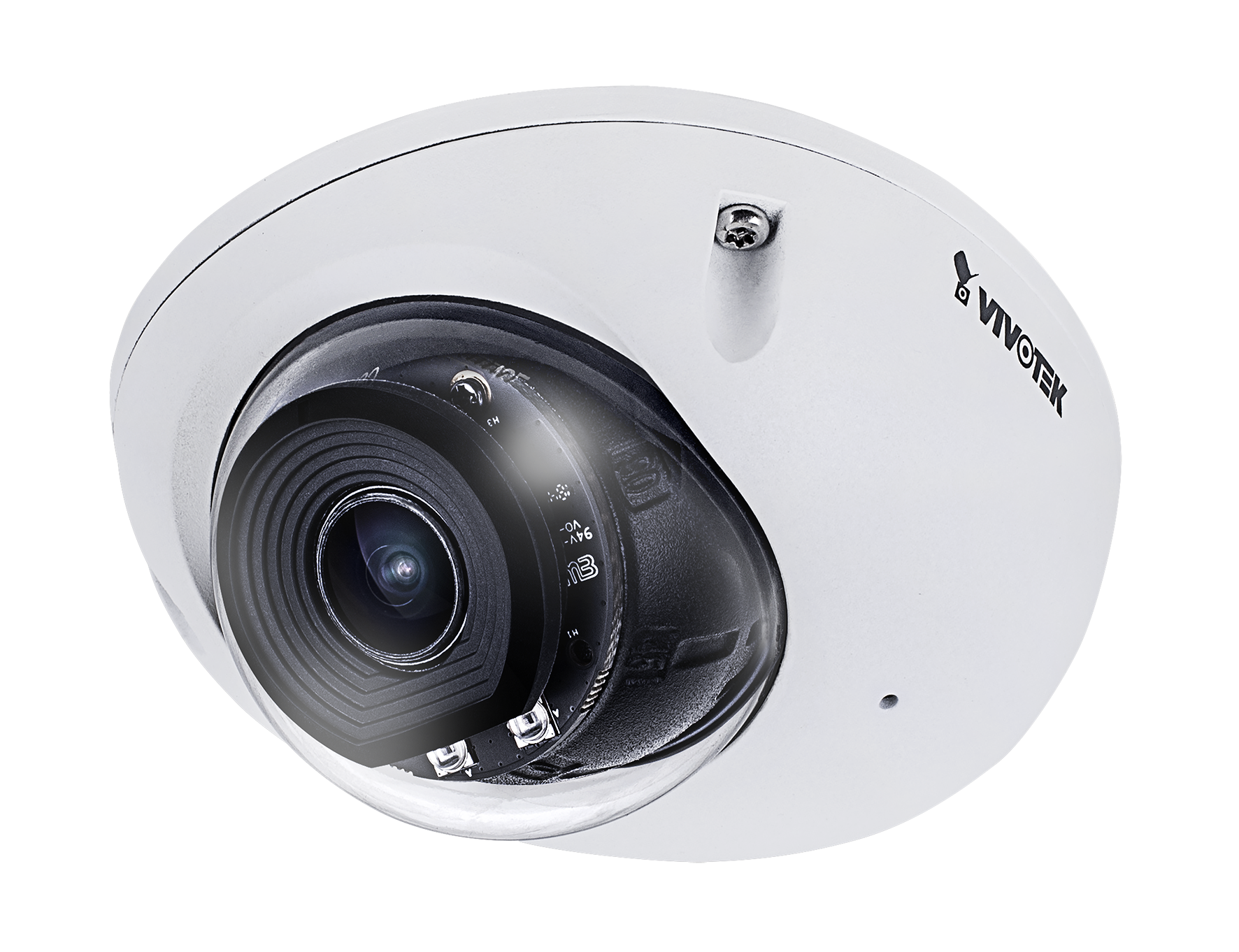

Vivotek - MD9582-H-DMS - 5MP Interior Driver Monitoring Camera System 2.8mm
Part number:
MD9582-H
Price:
- • EN50155 OT4 Compliant Mobile Surveillance
- • Driver attention tracking
- • Driver fatigue/drowsiness detection
- • Driver phone use detection
- • Driver smoking detection
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560X1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F1.8 |
| Iris Type | Fixed-iris |
| Field of View | 102° (Horizontal), 76° (Vertical), 129° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Night mode only |
| Illuminators | Built-in invisible 940nm IR illuminators, effective up to 2 meters, IR LED x2 |
| Minimum Illumination | 0 Lux with IR illumination on |
| Pan Range | ±30° |
| Tilt Range | 90° |
| Rotation Range | ±180° |
| Pan/Tilt/Zoom Functionalities | 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Micro SD/SDHC/SDXC card slot, Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560X1920, 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams (Up to 8 configurable profiles) |
| S/N Ratio | |
| S/N Ratio | 55dB |
| Dynamic Range | |
| Dynamic Range | 120dB |
| Video Streaming | |
| Video Streaming | Adjustable resolution, quality, and bitrate; Smart Stream III |
| Image Settings | |
| Image Settings | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone, External microphone Input |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | |
| Security Features | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection |
| Attribute Extraction | People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) |
| Human face Bestshot, Re-Search Extraction | Yes |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) |
| Smart VCA - Group 1 | Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection) |
| Smart VCA - Group 2 | Unattended object detection, Missing object detection, Crowd detection |
| Smart VCA - Group 3 | Running detection, Parking Violation Detection, Restricted Zone Detection |
| Solution Integration | VADP Package, Trend Micro (3-year free trial), DMS (Driver Management System for MD9582-H(DMS)) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot. DMS events (attention tracking, fatigue/drowsiness detection, phone use detection, smoking detection, empty driver chair detection, driver change detection) |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification, ONVIF events (DMS_driver_change, DMS_no_driver, DMS_object_near_mouth, DMS_object_near_near, DMS_distraction, DMS_drowsiness) |
| General | |
| Connectors | M12 4pin D-coded, Female connector for 10/100Mbps Network/PoE connection, Audio input *1, Digital input *1 (max. 30VDC, 1A), Digital output *1 (max. 12VDC, 50mA) |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 6 W/ 4.5W (IR on/off) |
| Dimensions | 98 x 54 x 110.8mm |
| Weight | approx. 400 g |
| Casing | |
| Casing | IP67, IP66, IK10, NEMA 4X |
| Certifications | |
| EMC | CE (EN 55032, EN 55024 Class B, EN 50121-4, EN 50121-3-2), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529) |
| Railway | EN 50155: 2021 (OT4/ST1), EN 50121-3-2:2016, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2 |
| Operating Temperature | |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (14°F ~ 158°F), Working Temperature (IR off): -40°C ~ 70°C (14°F ~ 158°F), (IR on): -40°C ~ 65°C (14°F ~ 149°F) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7, Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screw driver, alignment sticker, desiccant bag |
