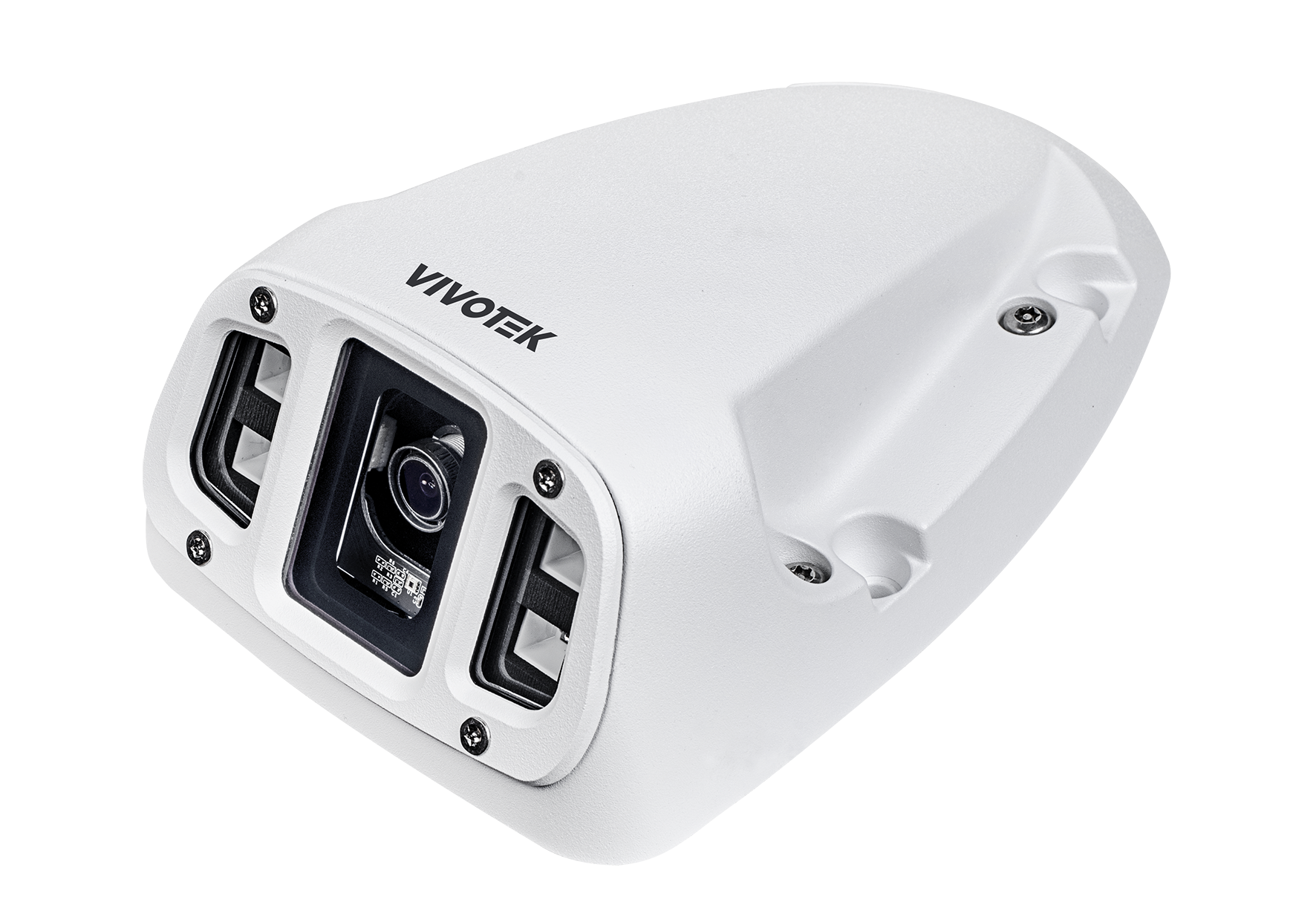

Vivotek - MD9584-HF6 - 5MP 50M IR WDR Pro Mobile Dome, IP6K9K, IK10+, EN50155, 6mm
Part number:
MD9584-H (6 mm)
Price:
- • Built-in IR Illuminators, Effective up to 50 Meters
- • IP6K9K/IP68 & IK10+/NEMA 4X Housing Protection
- • De-icing Function with Front Glass
- • EN50155 OT4 Compliance
- • Cyber Protection via Trend Micro IoT Security
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560X1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 6 mm |
| Aperture | F2.0 |
| Iris Type | Fixed-iris |
| Field of View | 50° (Horizontal), 37° (Vertical), 63° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR, IR LED x4 |
| Minimum Illumination | 0.1 Lux @ F2.0 (Color), 0.01 Lux @ F2.0 (B/W), 0 Lux with IR illumination on |
| Pan Range | ±30° |
| Tilt Range | +30° |
| Rotation Range | ±90° |
| Pan/Tilt/Zoom Functionalities | 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Micro SD/SDHC/SDXC card slot, Seamless Recording |
| Video | |
| Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560X1920, 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams (Up to 8 configurable profiles) |
| S/N Ratio | |
| S/N Ratio | 80dB |
| Dynamic Range | |
| Dynamic Range | 120dB |
| Video Streaming | |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream III |
| Image Settings | |
| Image Settings | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | External Microphone input, External line output (requires optional cable) |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | |
| Security Features | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Solution Integration | VADP Package, Trend Micro (3-year free trial), Deep Learning VCA (Smart Motion Detection, Smart VCA) *Optional |
| Video Motion Detection | Five-window video motion detection, people detection, time filter |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, DMS events (attention tracking, fatigue/drowsiness detection, phone use detection, smoking detection, empty driver chair detection, driver change detection) |
| Event Action | Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification, ONVIF events (DMS_driver_change, DMS_no_driver, DMS_object_near_mouth, DMS_object_near_near, DMS_distraction, DMS_drowsiness) |
| General | |
| Connectors | M12 4pin D-coded, Female connector for 10/100Mbps Network/PoE connection, M12 5pin A-coded, Male connector for DC 24V heater, Digital input *1 (max. 30VDC, 1A), Digital output *1 (max. 12VDC, 50mA) |
| LED Indicator | System power and status indicator |
| Power Input | Camera: IEEE 802.3af PoE Class 0, Heater: DC 24V |
| Power Consumption | Camera: Max. 10.26 W/ 6.08W (IR on/off), Heater: 24 W |
| Dimensions | 122 x 180 x 59 mm |
| Weight | approx. 400 g |
| Casing | |
| Casing | IP68, IP6K9K, NEMA 4X, IK10+ casing with AR-coated glass |
| Certifications | |
| EMC | CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Environment | IK10 (IEC 62262), IP66/67 (IEC 60529) |
| Railway | EN 50155: 2021(OT4/ST1, 24VDC), EN 50121-3-2:2016, EN 50121-4:2016, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0, IEC 62236-3-2 Ed 3.0 |
| Vehicles | ECE R118 |
| BI | BSMI |
| Operating Temperature | |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (14°F ~ 158°F), Working Temperature (IR off): -40°C ~ 70°C (14°F ~ 158°F) (IR off), -40°C ~ 65°C (14°F ~ 149°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | |
| Operating System | Microsoft Windows 11/10/7, Mac 10.4 (Chrome only) |
| Web Browser | Chrome 58.0 or above, Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screwdriver, alignment sticker, screw pack |
