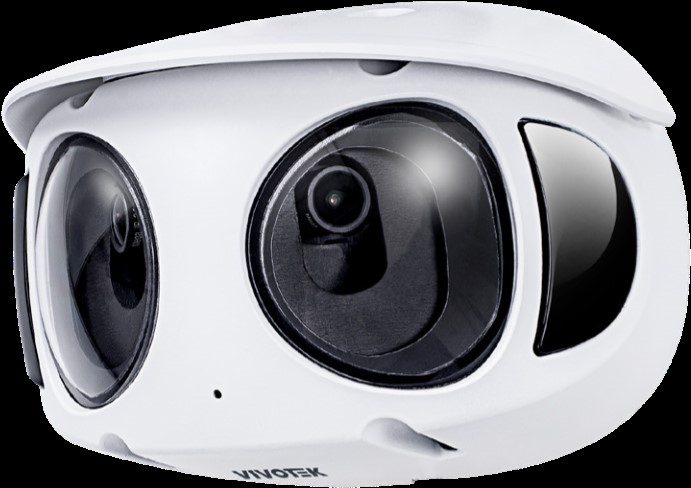

VORTEX Premium wtih Deep Search and Attribute Search: 8MP 20M IR Multi-Sensor Outdoor Vandal Proof 180° Panoramic Camera, 30 fps @ 4864 x 1632 (2 x 4MP), 2 x 2.8mm Lenses, 120 dB WDR Pro, H.265, One-way audio w/Built-in Microphone, MicroSD/SDHC/SDXC Card.
Users can now access efficient surveillance through the innovative panoramic camera, ensuring comprehensive protection without any blind spots. By powering advanced AI technology, this solution significantly enhances monitoring efficiency, simplifying the task of alert observation. The panoramic camera not only offers superior performance but also remarkably reduces the total cost of ownership, decreasing the problem of high maintenance expenses and complex setups.
Features:
- Protection with No Blind Spots
- Improve Monitoring Efficiency with AI
- Lower Total Cost of Ownership
| Camera Features | |
| Image sensor | 1 /2.7" Progressive CMOS |
| Resolution | HD 4864 x 1632 (8MP) SD 2432x 816 |
| Lens Types | Fixed-focal |
| Focal Length | f = 2.8 mm |
| Aperture | F1.2 |
| Iris | Fixed iris |
| Field of View | 180 ° (Horizontal) 50° (Vertical) 180° (Diagonal ) |
| Camera Movement | Tilt: 20° |
| Shutter Speed | 1 /30 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | 20 meters |
| Minimum Illumination | 0.018 lux @ F1.2 (Color), 30IRE <0.01 lux @ F1.2 (B/W) 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot ( Bulit-in 512GB industrial SDCard ) |
| Standard video settings | |
| Frame Rate | 15 FPS |
| Video Streaming Settings | HD 4864 x 1632 (8MP)@15fps 3Mbps upload SD 2432x 816@15fps 400Kbps upload |
| Standard audio settings | |
| Audio | One-way Audio |
| Interface | Built-in microphone |
| Effective Range | 5 meters |
| Power and network | |
| Power input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max: 20 W / 13.5W (IR on/ IR off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps PoE network connection |
| RTSP | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients *Live viewing for 6 clients *live viewing up to 4 clients and playback 2 clients) |
| Security | Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40 °C ~ 50°C (-40°F ~ 122°F) (IR on ) |
| Humidity | 90 % RH (non-condensing ) |
| Certifications | EMC: CE (EN 55032, EN 55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCICISPR 32 Class A); UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020),Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 , IEC/EN 60950-22, IEC/EN 62471) |
| Warranty | 60- month |
| Included Accessories | Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield |
| Mechanical | |
| Weight | 1.2 kg |
| Dimensions | 165 x 112 x 97 mm (w/o sunshield) 165 x 100 x 119 mm (w/ sunshield ) |
| Body | Metal |
| AI Analytics | |
| Audio detection | Yes |
| Tampering detection | Yes |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Object Analytics | Unattended object detection, Missing object detection |
