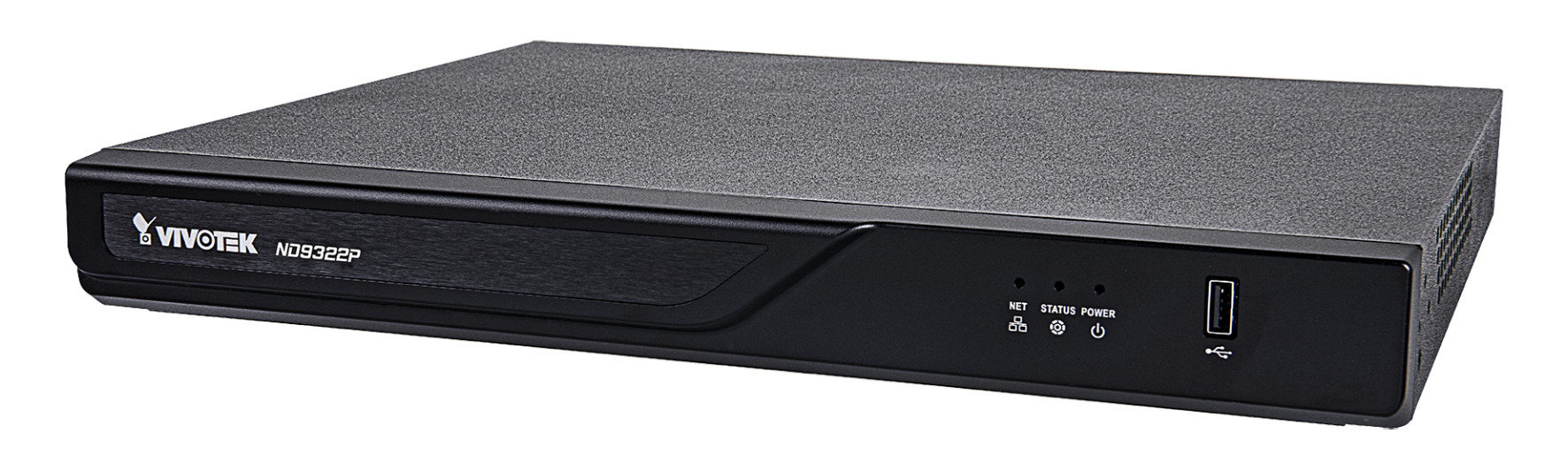

VIVOTEK’s ND9322P-v2 is a new generation H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.



The NVR features embedded 8x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.


Users of the NVR will also benefit from VIVOTEK’s cooperation with world-renowned cybersecurity company, Trend Micro. Through network cameras armed with Trend Micro's anti-intrusion software, VIVOTEK unites high security and robust network surveillance to secure lives and protect data across diverse applications.

Features:

DEVICE

• OS Embedded Linux
• CPU ARM Processor
• Flash 256 MB
• RAM 1 GB
• Watchdog Hardware + Software
• Power Restoration System Restart Automatically after Power Recovery

LOCAL DISPLAY

• LiveView Display 8 Channels, Multi-Layout Display: 1x1, 3V, 2x2, 3x3, 1P+3, 1M+5, 1P+6
• Video Output HDMI x1, VGA x1
• Display Resolution 3840x2160, 1920x1080, 1280x720
• Camera Position Change the viewcell position on the Live View screens
• Stream Application Constant\Auto Adaptive Stream
• Monitor Enhancement OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio
• Fisheye Dewarp 1O, 1P, 1R, 1O3R, 1O8R
• PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

VIDEO

• Video Format H.265, H.264, MJPEG
• Graphic Decoder Hardware decoding
• Decoding Resolution Up to 3840x2160
• Decoding Capability 3840x2160 @ 30 fps (1-CH), 1920x1080 @ 120 fps (4-CH), 1280x720 @ 240 fps (8-CH)

AUDIO

• Audio Format G.711, G.726
• Audio In/Out 3.5 Phone jack audio output x1, 3.5 Phone jack audio input (reserved) x1

RECORD

• Recording Time (sec.) Pre-Record: 5 (Max. 10), Post-Record: 20 (Max. 300)
• Recording Stream Single
• Recording Throughput 128 Mbps
• Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting Recycle (unit: Day)
• Watermark Supported

STORAGE & BACKUP

• HDD Devices Internal x2 (3.5")
• HDD Max. Capacity Please refer to the HDD supported list on the VIVOTEK website.
• RAID RAID 0, 1 (single volume up to 16TB)
• Disk Management Create, Format and Remove Disk, HDD S.M.A.R.T.
• External Storage USB Storage (USB 3.0)
• Video Clip Export USB Dongle (FAT Format)
• Schedule Backup FTP

PLAYBACK

• Playback Display 4 Channels, Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
• Playback Control Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
• Video Search By calendar, date/time, and alarm
• Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2-CH)
• Snapshot JPEG
• Video Clip Export EXE

NETWORK

• Ethernet 10/100/1000Mbps Ethernet (RJ-45) x1
• Video Throughput for Remote Client 24 Mbps
• PoE 802.3at/af compliant PoE ports x 8 (Total Max. 120 W)
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

EXTERNAL INTERFACE

• USB Front: 1 (USB 2.0) Back: 1 (USB 3.0)
• Alarm In 4
• Alarm Out 1
• Audio 3.5 Phone Jack Audio Output x1, 3.5 Phone Jack Audio Input (Reserved) x1

SYSTEM

• POS Integration Supported (by project request)
• UPS Integration Supported (by project request)
• Camera Integration ONVIF
• Event Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO
• Event Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification
• User Management User level: administrator, regular user
• Log System, recording, user, error
• Date & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time

ADVANCED FEATURES

• VCA Counting Solution Supported
• VCA Event Search Supported
• Smart Search II Supported
• Trend Micro IoT Security Supported
• Cybersecurity Management Supported

REMOTE CLIENT

• Software AP Shepherd, VAST 2
• Mobile/Tablet App iViewer (Android & iOS)
• Web Browser Internet Explorer 10 (32 bit) or above/ Windows, Chrome v68.0.3 & Firefox v61.02 or above/ Windows & macOS
• VIVOCloud Supported

GENERAL

• Power Input 100-240V AC, 50/60Hz
• Power Consumption Max. 170 W
• Dimensions 366 (W) x 320.3 (D) x 46 (H)mm
• Weight 2.5 kg (without HDD)
• Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
• Humidity 0 ~ 95%
• Safety Certifications CE, FCC, VCCI, C-Tick, UL, CB, BSMI
• Warranty 24 months
